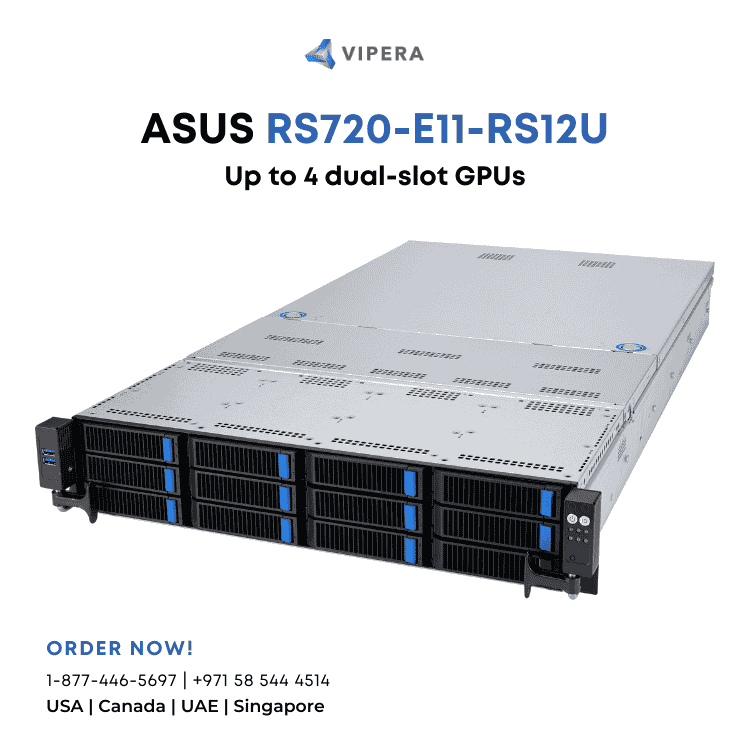

Asus RS720-E11-RS12U Server

Intel®Xeon® Processor Scalable Family

4th/5th

Intel® C741 Chipset

Total slot:32 (8-channel per CPU, 16 DIMM per CPU)Capacity:Maximum up to 4TBMemory type:4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC)5th: 5600/4800 MHz (1DPC)/4400(2DPC)Memory size:64GB, 32GB, 16GB RDIMM256GB, 128GB RDIMM 3DS* Refer to www.asus.com/support for more information

Up to 9 slots (with OCP)• 6 x PCIe Gen5 x8 link or 3 x PCIe Gen5 x16 link (FHFL)• 1 x PCIe Gen5 x16 link (FHFL)• 1 x PCIe Gen5 x16 (LP)• 1 x OCP 3.0Up to 9 slots (without OCP) • 8 x PCIe Gen5 x8 link or 4 x PCIe Gen5 x16 link (FHFL)• 1 x PCIe Gen5 x16 (LP)

Configuration #1 (Non-GPU support)Front Bays:12 x 3.5"/2.5" hot-swap drive bays8 x NVMe/SAS*/SATA + 4 NVMe/SATARear Bays (Optional):2 x 2.5" hot-swap drive bays2 x NVMe/SATAConfiguration #2 (GPU support)12 x 3.5"/2.5" hot-swap drive bays8 x NVMe/SAS*/SATA + 4 NVMe/SATA*HBA/RAID card is required to support SAS hard drives

12 x 3.5"/2.5" hot-swap bay2 x M.2 slot

4

Configuration #1 (Non-GPU support)1 x Mgmt LAN4 x1Gbe(Intel I350-AM4) RJ45 port (optional) or 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional)Configuration #2 (GPU support)1 x Mgmt LAN2 x 10Gbe(Intel X710-AT2) RJ45 port (optional)

Aspeed AST2600 64MB

2 x USB 3.2 Gen1 ports

2 x USB 3.2 Gen1 ports1 x VGA port1 x RJ-45 Management LAN port2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional)

Front Switch/LED:1 x Power Switch (w/ LED)1 x Location Switch (w/ LED)

840mm x 447mm x 88mm

2U

26.855kg

Configuration #1 (Non-GPU support)1+1 Redundant AC:2600W/1600W 80 PLUS Titanium Power Supply2000W/1600W 80 PLUS Platinum Power SupplyConfiguration #2 (GPU support)1+1 Redundant AC:2600W 80 PLUS Titanium Power Supply2000W 80 PLUS Platinum Power Supply

Configuration #1 (Non-GPU support)2U Standard HeatsinkConfiguration #2 (GPU support)1U Standard Heatsink1U EVAC Heatsink
