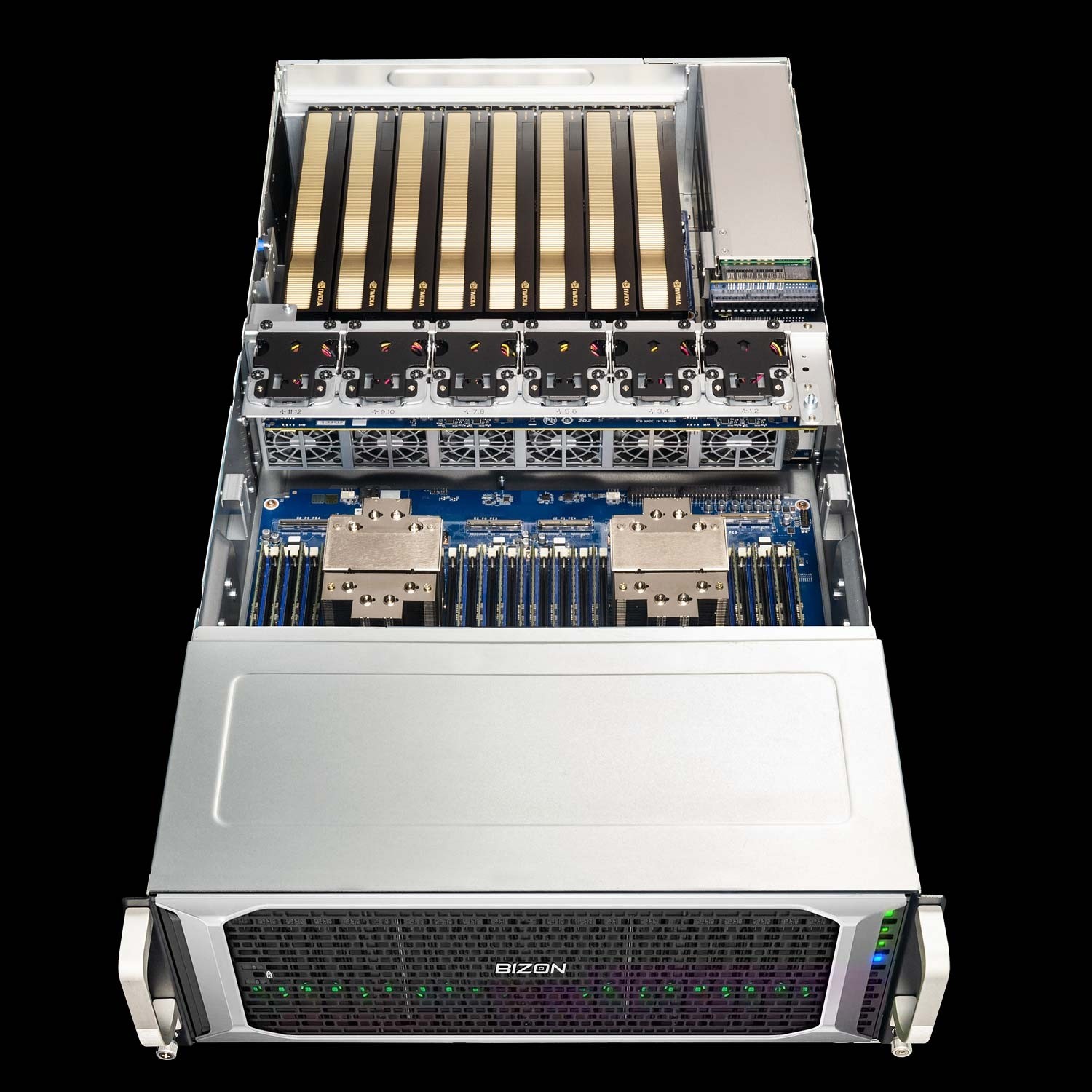

BIZON G7000 G4 – NVIDIA – Up to 8 GPUs, dual Xeon up to 64 cores

Use cases

• • Artificial Intelligence
• • Big Data Analytics
• • High-performance Computing
• • Research Lab/National Lab
• • Astrophysics, Business Intelligence

Motherboard

• • Intel Xeon Scalable Processors LGA 4677 (Socket E).
• • Intel C741 chipset.

CPU

• • 4th/5th Generation Intel Xeon Scalable Processors
• • Intel Xeon CPU Max Series
• • Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
• • Dual processors, 10nm
• • Up to 64-core, 128 threads per processor
• • cTDP up to 350W

Memory

• • Up to 4096 GB DDR5 ECC Buffered
• • 32 x DIMM slots
• • DDR5 memory supported only
• • 8-Channel memory per processor architecture
• • RDIMM modules up to 64GB supported
• • 3DS RDIMM modules up to 256GB supported

Expansion Slots

• • 8 x PCIe slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards *
• • 1 x PCIe slot (Gen5 x8 link, LP, HL) for HBA/RAID cards (front)
• • 1 x PCIe slot (Gen5 x16 link) for NIC (rear)
• • 1 x PCIe slot (Gen5 x8 link) for NIC (rear)

Storage

• • 8 x 3.5"/2.5" Front Hot-swap Storage Bays
• • 1 x M.2 Socket, supports up to 22110 type (PCIe Gen3 x4 link)

LAN

• • 2 x 10GbE LAN ports (Intel X710-AT2)
• • 1 x 10/100/1000 management LAN (Dedicated IPMI)
• • 25 Gigabit Dual Port Ethernet (2x SFP28) (optional)
• • 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; 1x QSFP) (optional)
• • 200 Gbps Dual Port InfiniBand HDR (Mellanox ConnectX-6 VPI Adapter; 2x QSFP) (optional)
• • 400 Gbps Single Port InfiniBand NDR (Mellanox ConnectX-7 VPI Adapter; 1x OSFP) (optional)

Graphics Cards

• Available options: Nvidia A1000 8Gb (4 DP), Nvidia RTX 6000 Ada 48Gb (4 DP), Nvidia RTX PRO 4000 Blackwell 24Gb (4 DP), Nvidia RTX PRO 4500 Blackwell 32Gb (4 DP), Nvidia RTX PRO 5000 Blackwell 48Gb (4 DP), Nvidia RTX PRO 6000 Blackwell Max-Q 96Gb (300W) (4 DP), Nvidia RTX PRO 6000 Blackwell 96Gb Server(600W) (4 DP), Nvidia L40s 48Gb (4 DP), Nvidia A100 80Gb (no video outputs), Nvidia H100 94Gb NVL (no video outputs), Nvidia H200 141Gb NVL (no video outputs)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Front I/O

• • 2 x USB 3.2 Gen 1
• • 1 x VGA
• • 1 x Power Button w/LED
• • 1 x Location Button w/LED
• • 1 x Message LED
• • 1 x Q-Code/Port 80 LED
• • 1 x Clear CMOS Switch
• • 1 x Reset Switch
• • 1 x M.2 LED

Rear I/O

• • 1 x COM port
• • 2 x RJ45
• • 1 x MLAN
• • 1 x Power Button w/LED
• • 1 x Location Button w/LED

Power Supply

• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).

Power Requirements

100-120V (standard US outlet):If you have a standard 20 A / 120V US outlet, you can connect one power supply to one dedicated power circuit (each outlet should have its dedicated circuit). In total, you need four (4) 20 A /120V outlets with a dedicated circuit.Actual power consumption is not the same as maximum power supply power. Power supply power means how much watts you can get from the power supply and your actual power consumption should not be higher than max power supply power.Actual power consumption depends on your configuration (graphics card and CPU).Power consumption example:G7000 with 8 x RTX 6000 Ada + 2 x Xeon 4514Y CPUs = 2400-2600W (100% load for all the GPUs and CPUs).Information for reference only. Consult your electrician for more details.The system power supply is universal and will work worldwide. Compatible with 110v - 240v (50-60 Hz).

System Management

• • Remote access from anywhere (SSH/VNC)
• • Virtual machines
• • GPU sharing
• • Containers
• • One-click software updates
• • Jupyter notebooks
• • GPU/System monitoring
• • accounts, and permissions

OS Compatibility

• • BIZON Z-Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • Microsoft Windows Server 2022 Standard (optional).
• • No operating system (optional).
• • Red Hat Enterprise Linux 7.x (x64) or later
• • Red Hat Enterprise Linux 8.x (x64) or later
• • Ubuntu 20.04 LTS (x64) or later
• • Ubuntu 22.04 LTS (x64) or later
• • VMware ESXi 7.0 U3
• • VMware ESXi 8.0
• • CentOS 7.0

Operating Properties

• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating humidity: 8%-80% (non-condensing)
• • Non-operating temperature: -40° to 158° F (-40°C to 70°C)
• • Non-operating humidity: 20%-90% (non-condensing)

Noise

• 8 x NVIDIA RTX 6000 Ada: Idle: 71 dBMax Load (stress test): 91 dB

Dimensions & Weight

• Case: Rackmountable; 4U; horizontal placement, Height: 6.69 inches (17.45 cm), Width: 17.3 inches (44.0 cm), Depth: 31.5 inches (80.0 cm)
• Shipping Package: Height: 17.3 inches (44.4 cm), Width: 31.5 inches (80.0 cm), Length: 47.2 inches (120.0 cm), Weight: 135 lbs (61.2 kg) (shipped on pallet)

In the Box

• • Bizon G7000 G4
• • 1 x Rail kit
• • 4 x power cords (USA)
• • User manual
• • Benchmark report

Part Number

bizon-g7000-g4

Use cases

• • Artificial Intelligence
• • Big Data Analytics
• • High-performance Computing
• • Research Lab/National Lab
• • Astrophysics, Business Intelligence

Key Features

• • Up to 8 x PCIe Gen4 GPGPU cards
• • 3rd Gen. Intel Xeon Scalable Processors
• • 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
• • Supports Intel Optane Persistent Memory 200 series
• • Dual ROM Architecture supported
• • Intel C621A Express Chipset
• • 2 x 10Gb/s BASE-T LAN ports (Intel X550-AT2)
• • 1 x dedicated management port
• • 12 x 3.5" or 2.5" SATA hot-swappable HDD/SSD bays
• • 2 x SATA DOM supported
• • 3 x 80 PLUS Platinum 2200W (240V) redundant PSU

Motherboard

• • Intel Xeon Scalable Processors LGA 4189 (Socket P+).
• • Intel C621A chipset.

CPU

• • 3rd Generation Intel Xeon Scalable Processors
• • Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
• • Dual processors, 10nm
• • Up to 40-core, 80 threads per processor
• • cTDP up to 270W

Memory

• • Up to 8192 GB DDR4 3200 MHz ECC Buffered
• • 32 x DIMM slots
• • DDR4 memory supported only
• • 8-Channel memory per processor architecture
• • RDIMM modules up to 128GB supported
• • LRDIMM modules up to 128GB supported
• • 3DS RDIMM/LRDIMM modules up to 256GB supported

LAN

• • 2 x 10Gb/s BASE-T LAN ports (Intel X550-AT2)
• • 1 x 10/100/1000 management LAN (Dedicated IPMI)
• • 25 Gigabit Dual Port Ethernet (2x SFP28) (optional)
• • 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; 1x QSFP) (optional)
• • 200 Gbps Dual Port InfiniBand HDR (Mellanox ConnectX-6 VPI Adapter; 2x QSFP) (optional)
• • 400 Gbps Single Port InfiniBand NDR (Mellanox ConnectX-7 VPI Adapter; 1x OSFP) (optional)

Video

• • Integrated in Aspeed AST2600
• • 2D Video Graphic Adapter with PCIe bus interface
• • 1920x1200@60Hz 32bpp, DDR4 SDRAM

Graphics Cards

• Available options: Nvidia A1000 8Gb (4 DP), Nvidia RTX 6000 Ada 48Gb (4 DP), Nvidia RTX PRO 4000 Blackwell 24Gb (4 DP), Nvidia RTX PRO 4500 Blackwell 32Gb (4 DP), Nvidia RTX PRO 5000 Blackwell 48Gb (4 DP), Nvidia RTX PRO 6000 Blackwell Max-Q 96Gb (300W) (4 DP), Nvidia RTX PRO 6000 Blackwell 96Gb Server(600W) (4 DP), Nvidia L40s 48Gb (4 DP), Nvidia A100 80Gb (no video outputs), Nvidia H100 94Gb NVL (no video outputs), Nvidia H200 141Gb NVL (no video outputs)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Audio

N/A

Storage

• • 12 x 3.5" or 2.5" SATA hot-swappable HDD/SSD baysNOTE: SATA devices supported only
• • Onboard 2 x SATA DOM supported

SAS

N/A

RAID

Intel SATA RAID 0, 1, 10, 5

Peripheral Drives

N/A

Expansion Slots

8 x PCIe x16 slots (Gen4 x16 bus) for GPUs

Internal I/O

• • 1 x TPM header
• • 1 x VROC connector
• • 2 x SATA DOM connectors
• • 1 x Front VGA header
• • 1 x Serial header

Front I/O

• • 2 x USB 3.0
• • 1 x VGA
• • 2 x RJ45
• • 1 x MLAN
• • 1 x Power button with LED
• • 1 x ID button with LED
• • 1 x Reset button
• • 1 x NMI button
• • 1 x System status LED
• • 1 x HDD access LED

Rear I/O

N/A

Backplane I/O

• • 12 x 3.5" or 2.5" SATA ports
• • Bandwidth: SATA 6Gb/s per port

TPM

1 x TPM header with SPI interface

Power Supply

• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).

Power Requirements

100-120V (standard US outlet):If you have a standard 20 A / 120V US outlet, you can connect one power supply to one dedicated power circuit (each outlet should have its dedicated circuit). In total, you need three (3) 20 A /120V outlets with a dedicated circuit.Actual power consumption is not the same as maximum power supply power. Power supply power means how much watts you can get from the power supply and your actual power consumption should not be higher than max power supply power.Actual power consumption depends on your configuration (graphics card and CPU).Power consumption example:G7000 with 8 x Quadro RTX 6000/8000/2080 Ti + 2 x Xeon 4116 CPUs = 2400-2600W (100% load for all the GPUs and CPUs).Power supplies efficiency:1200W @ 110-120V2200W @ 220-240VInformation for reference only. Consult your electrician for more details.

System Management

• • Remote access from anywhere (SSH/VNC)
• • Virtual machines
• • GPU sharing
• • Containers
• • One-click software updates
• • Jupyter notebooks
• • GPU/System monitoring
• • accounts, and permissions
• • Aspeed AST2600 management controller
• • Dashboard
• • HTML5 KVM
• • Sensor Monitor (Voltage, RPM, Temperature, CPU Status ...etc.)
• • Sensor Reading History Data
• • FRU Information
• • SEL Log in Linear Storage / Circular Storage Policy
• • Hardware Inventory
• • Fan Profile
• • System Firewall
• • Power Consumption
• • Power Control
• • LDAP / AD / RADIUS Support
• • Backup & Restore Configuration
• • Remote BIOS/BMC/CPLD Update
• • Event Log Filter
• • User Management
• • Media Redirection Settings
• • PAM Order Settings
• • SSL Settings
• • SMTP Settings

OS Compatibility

• • BIZON Z-Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • Microsoft Windows Server 2022 Standard (optional).
• • No operating system (optional).
• • Windows Server 2016
• • Windows Server 2019
• • Red Hat Enterprise Linux 8.2 ( x64) or later
• • Red Hat Enterprise Linux 8.3 ( x64) or later
• • SUSE Linux Enterprise Server 12 SP5 ( x64) or later
• • SUSE Linux Enterprise Server 15 SP2 ( x64) or later
• • Ubuntu 20.04 LTS (x64) or later
• • Ubuntu 20.04.1 LTS (x64) or later
• • VMware ESXi 6.7 Update3 P03
• • VMware ESXi 7.0 Update2
• • Citrix Hypervisor 8.2.0

System Fans

6 x 60x60x76mm (21,700rpm)

Operating Properties

• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating humidity: 8%-80% (non-condensing)
• • Non-operating temperature: -40° to 140° F (-40°C to 60°C)
• • Non-operating humidity: 20%-95% (non-condensing)

Noise

• 8 x NVIDIA RTX 6000 Ada: Idle: 71 dBMax Load (stress test): 91 dB

Dimensions & Weight

• Case: Rackmountable; 4U; horizontal placement, Height: 6.9 inches (17.6 cm), Width: 17.6 inches (44.8 cm), Depth: 34.6 inches (88.0 cm)
• Shipping Package: Height: 24.0 inches (60.9 cm), Width: 23.8 inches (60.6 cm), Length: 44 inches (111.9 cm), Weight: 135 lbs (61.2 kg) (shipped on pallet)

In the Box

• • Bizon G7000 G2
• • 1 x Rail kit
• • 3 x power cords (USA)
• • User manual
• • Benchmark report

Part Number

bizon-g7000-g2

Diagram

NOTE: Alternative types of topologies are available. Contact sales for more details.
