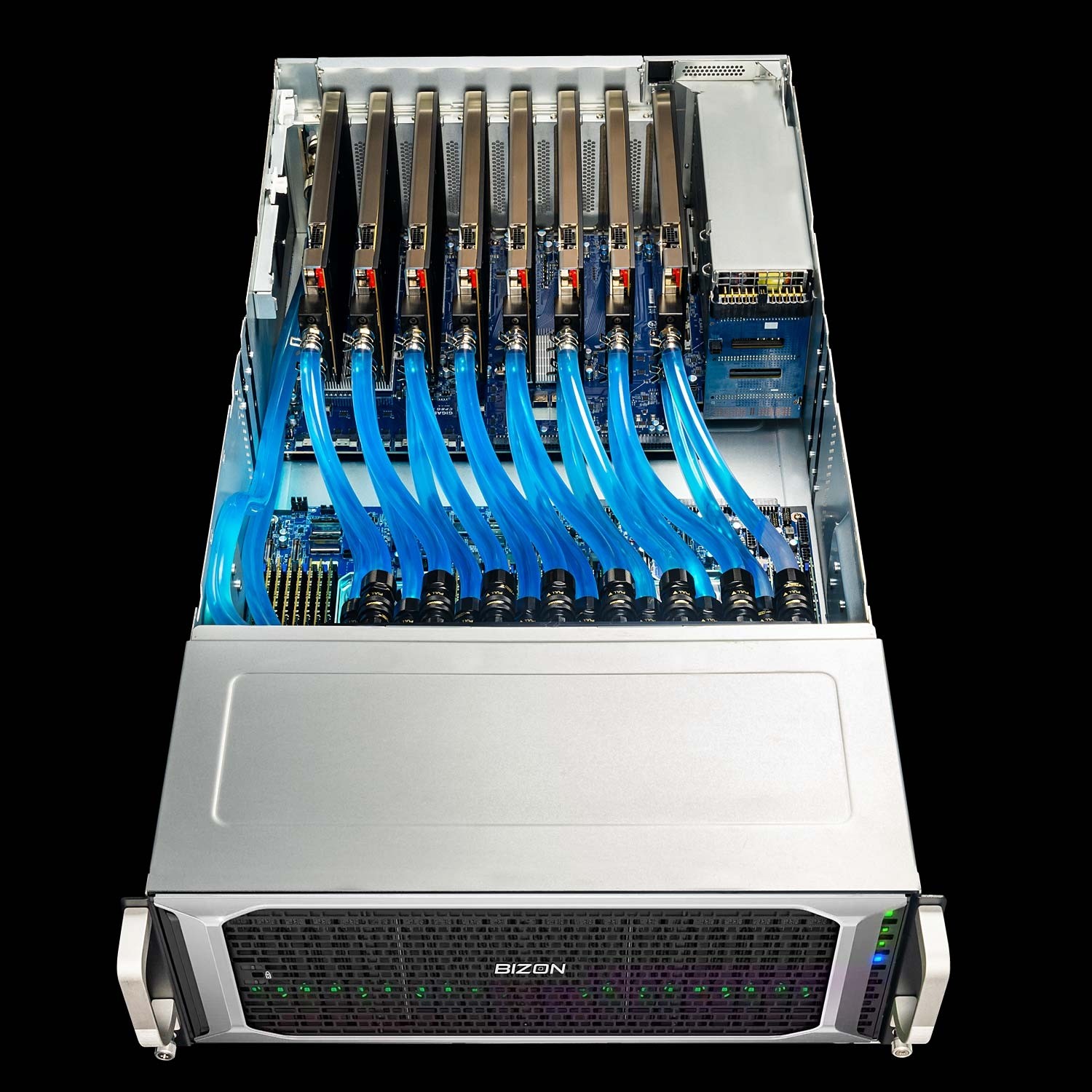

BIZON Z9000 G2 – Liquid-cooled NVIDIA – Up to 8 GPU, dual Xeon up to 128 cores

Use cases

• • Artificial Intelligence
• • Big Data Analytics
• • High-performance Computing
• • Research Lab/National Lab
• • Astrophysics, Business Intelligence

Key Features

• • Supports up to 8 x Dual slot Gen5 GPUs
• • Dual 5th/4th Gen Intel Xeon Scalable Processors
• • Dual Intel Xeon CPU Max Series
• • 8-Channel DDR5 RDIMM, 32 x DIMMs
• • Dual ROM Architecture
• • 2 x 10Gb/s LAN ports via Intel X710-AT2
• • 8 x 3.5"/2.5" Gen5 NVMe/SATA hot-swap bays
• • 4 x 3.5"/2.5" SATA hot-swap bays
• • 4 x 3.5"/2.5" SATA hot-swap bays
• • 8 x FHFL PCIe Gen5 x16 slots for GPUs
• • 3+1 3000W (240V) 80 PLUS Titanium redundant power supply

Motherboard

• • Intel Xeon Scalable Processors LGA 4677 (Socket E).
• • Intel C741 chipset.

CPU

• • 4th/5th Generation Intel Xeon Scalable Processors
• • Intel Xeon CPU Max Series
• • Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
• • Dual processors, 10nm
• • Up to 64-core, 128 threads per processor
• • cTDP up to 350W

Memory

• • Up to 4096 GB DDR5 ECC Buffered
• • 32 x DIMM slots
• • DDR5 memory supported only
• • 8-Channel memory per processor architecture
• • RDIMM modules up to 128GB supported
• • 3DS RDIMM modules up to 256GB supported

LAN

• • 2 x 10Gb/s LAN ports (Intel X710-AT2)
• • 1 x 10/100/1000 management LAN (Dedicated IPMI)
• • 25 Gigabit Dual Port Ethernet (2x SFP28) (optional)
• • 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; 1x QSFP) (optional)
• • 200 Gbps Dual Port InfiniBand HDR (Mellanox ConnectX-6 VPI Adapter; 2x QSFP) (optional)
• • 400 Gbps Single Port InfiniBand NDR (Mellanox ConnectX-7 VPI Adapter; 1x OSFP) (optional)

Video

• • Integrated in Aspeed AST2600
• • 2D Video Graphic Adapter with PCIe bus interface
• • 1920x1200@60Hz 32bpp, DDR4 SDRAM

Graphics Cards

• Available options: Nvidia A1000 8Gb (4 DP) (Dedicated Display Card), Nvidia RTX 6000 Ada 48Gb (4 DP), Nvidia RTX PRO 6000 Blackwell 96Gb (4 DP), Nvidia A100 80Gb (no video outputs), Nvidia H100 94Gb NVL (no video outputs), Nvidia H200 141Gb NVL (no video outputs)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Audio

N/A

Storage

• • 8 x 3.5"/2.5" Gen5 NVMe/SATA hot-swappable bays
• • 4 x 3.5"/2.5" SATA hot-swappable bays
• • 1 x M.2 (2280/22110), PCIe Gen3 x1

SAS

N/A

RAID

Intel SATA RAID 0/1/10/5Onboard VROC key header

Peripheral Drives

N/A

Expansion Slots

• • 8 x PCIe x16 slots (Gen5 x16 bus) for GPUs

Front I/O

• • 2 x USB 3.2 Gen 1 (Type-A)
• • 1 x VGA
• • 2 x RJ45
• • 1 x MLAN
• • 1 x Power button with LED
• • 1 x ID button with LED
• • 1 x Reset button
• • 1 x NMI button
• • 1 x System status LED
• • 1 x Storage activity LED

Rear I/O

N/A

Backplane I/O

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s

Security Modules

1 x TPM header with SPI interface

Power Supply

• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).

Power Requirements

Power consumption examples:1. Z9000 with 8 x NVIDIA A6000 + 2 x Xeon 4216 CPUs = 2600W-2800W (100% load for all the GPUs and the CPUs at the same time).BTUs (per hour): 8871 @ 2600W2. Z9000 with 8 x NVIDIA Quadro RTX 8000 + 2 x Xeon 6230 CPUs = 2600W-2800W (100% load for all the GPUs and the CPUs at the same time).BTUs (per hour): 8871 @ 2600W3. Z9000 with 8 x NVIDIA Quadro RTX/3090 + 2 x Xeon 5218 CPUs = 3000W-3400W (100% load for all the GPUs and the CPUs at the same time).BTUs (per hour): 10200 @ 3000W100-120V (standard US outlet):If you have a standard 20 A / 120V (2400 Watts max) US outlet, you can connect two power supplies to one dedicated power circuit (each outlet should have its dedicated circuit). You need four (4) 20 A /120V outlets with a dedicated circuit. This is true for the configurations 1 and 2 mentioned above.Actual power consumption is not the same as maximum power supply power. Power supply power means how much watts you can get from the power supply and your actual power consumption should not be higher than max power supply power.Actual power consumption depends on your configuration (graphics card and CPU).Information for reference only. Consult your electrician for more details.The system power supply is universal and will work worldwide. Compatible with 110v - 240v (50-60 Hz).

System Management

• • Remote access from anywhere (SSH/VNC)
• • Virtual machines
• • GPU sharing
• • Containers
• • One-click software updates
• • Jupyter notebooks
• • GPU/System monitoring
• • accounts, and permissions
• • Aspeed AST2600 management controller
• • Dashboard
• • HTML5 KVM
• • Sensor Monitor (Voltage, RPM, Temperature, CPU Status ...etc.)
• • Sensor Reading History Data
• • FRU Information
• • SEL Log in Linear Storage / Circular Storage Policy
• • Hardware Inventory
• • Fan Profile
• • System Firewall
• • Power Consumption
• • Power Control
• • LDAP / AD / RADIUS Support
• • Backup & Restore Configuration
• • Remote BIOS/BMC/CPLD Update
• • Event Log Filter
• • User Management
• • Media Redirection Settings
• • PAM Order Settings
• • SSL Settings
• • SMTP Settings

OS Compatibility

• • BIZON Z-Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • Microsoft Windows Server 2022 Standard (optional).
• • No operating system (optional).
• • Windows Server 2019
• • Windows Server 2022
• • Red Hat Enterprise Linux 8.4 (x64) or later
• • SUSE Linux Enterprise Server 15 SP3 (x64) or later
• • Ubuntu 22.04 LTS (x64) or later
• • Ubuntu 22.04.1 LTS (x64) or later
• • VMware ESXi 7.0 Update 3i
• • VMware ESXi 8.0

Cooling System

• • Fully self-contained (does not require external water supply line or chiller)
• • 8 x water-cooled GPUs
• • 8 x port manifold with quick disconnect technologyNote: The design of each BIZON workstation integrates quick-disconnect technology for easy GPU expandability.This technology allows you to disconnect existing GPUs or add new GPUs without shipping the system back.Connecting/disconnecting a GPU is similar to plugging in a cable. No spills, no leaks. Fast, easy, and safe.
• • External Cooling unit (radiator, pump, reservoir)

Operating Properties

• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating humidity: 8%-80% (non-condensing)
• • Non-operating temperature: -40° to 140° F (-40°C to 60°C)
• • Non-operating humidity: 20%-95% (non-condensing)

Noise level and temperature

• • Idle noise level: up to 54 dB
• • Idle temperature (GPUs): Average 33 C / 91.4 F (min 31C - max 36C)
• • Max load noise level (stress test): up to 56 dB
• • Max load temperature (GPUs): Average 59 C / 138.2 F (min 54C - max 65C)

Dimensions & Weight

• Chassis (server): Rackmountable; 4U; horizontal placement, Height: 6.9 inches (17.6 cm), Width: 17.6 inches (44.8 cm), Depth: 34.6 inches (88.0 cm), Weight (8 GPU; with coolant): 131.4 lbs (59.6 kg)
• Cooling Unit: Rackmountable; 3U; vertical placement, Height: 4.1 inches (10.3 cm), Width: 16.9 inches (43.0 cm), Depth: 21.3 inches (54.3 cm), Weight (with coolant): 27 lbs (12.24 kg)
• Shipping Package 1 (server): Height: 17.3 inches (44.4 cm), Width: 31.5 inches (80.0 cm), Length: 47.2 inches (120.0 cm), Weight: 145.5 lbs (66.5 kg)
• Shipping Package 2 (cooling unit): Height: 11 inches (27.94 cm), Width: 22 inches (55.88 cm), Length: 29 inches (73.7 cm), Weight: 30 lbs (13.6 kg)

In the Box

• • Bizon Z9000 G2
• • 1 x Rail kit
• • 4 x power cords (USA)
• • User manual
• • Benchmark report

Part Number

bizon-z9000-0524-g2
