Rackform U637.v9.4

Name: Rackform U637.v9.4
Brand: Silicon Mechanics
Price: 14319 USD
Availability: InStock

Silicon Mechanics

Overview

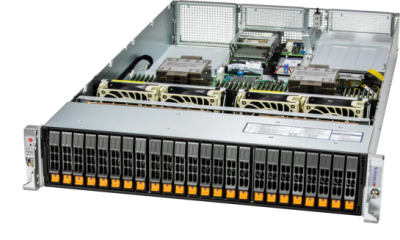

2u rackmount server with dual Intel Xeon Scalable processors. Optimized for AI inference and enterprise compute workloads.

Key Features

Dual Intel Xeon Scalable processors
High-speed Ethernet networking
2u rackmount form factor

Ideal For

enterprise teams and research institutions and startups running large-scale AI training, multi-GPU workloads, and enterprise inference deployments.

Barebone

• 5th Gen Intel® Xeon® processors - 2U - 24x 2.5-inch Hot-Swap - 2x M.2 - 1600W 1+1 Redundant

Processor

• Intel® Xeon® Scalable Gold 6430, 2.1GHz (32-Core, HT, 4400 MT/s) 270W
• Intel® Xeon® Scalable Gold 6438Y+, 2.0GHz (32-Core, HT, 4800 MT/s) 205W
• Intel® Xeon® Scalable Gold 5416S, 2.0GHz (16-Core, HT, 4400 MT/s) 150W
• Intel® Xeon® Scalable Silver 4509Y, 2.6GHz (8-Core, HT, 4400 MT/s) 125W
• Intel® Xeon® Scalable Silver 4510, 2.4GHz (12-Core, HT, 4400 MT/s) 150W
• Intel® Xeon® Scalable Silver 4514Y, 2.0GHz (16-Core, HT, 4400 MT/s) 150W
• Intel® Xeon® Scalable Silver 4516Y+, 2.2GHz (24-Core, HT, 4400 MT/s) 185W
• Intel® Xeon® Scalable Gold 5520+, 2.2GHz (28-Core, HT, 4800 MT/s) 205W
• Intel® Xeon® Scalable Gold 6530, 2.1GHz (32-Core, HT, 4800 MT/s) 270W
• Intel® Xeon® Scalable Gold 6538Y+, 2.2GHz (32-Core, HT, 5200 MT/s) 225W
• Intel® Xeon® Scalable Platinum 8558, 2.1GHz (48-Core, HT, 5200 MT/s) 330W
• Intel® Xeon® Scalable Gold 5515+, 3.2GHz (8-Core, HT, 4800 MT/s) 165W
• Intel® Xeon® Scalable Gold 6526Y, 2.8GHz (16-Core, HT, 5200 MT/s) 195W
• Intel® Xeon® Scalable Gold 6534, 3.9GHz (8-Core, HT, 4800 MT/s) 195W
• Intel® Xeon® Scalable Gold 6542Y, 2.9GHz (24-Core, HT, 5200 MT/s) 250W
• Intel® Xeon® Scalable Gold 6544Y, 3.6GHz (16-Core, HT, 5200 MT/s) 270W
• Intel® Xeon® Scalable Gold 6548Y+, 2.5GHz (32-Core, HT, 5200 MT/s) 250W
• Intel® Xeon® Scalable Platinum 8562Y+, 2.8GHz (32-Core, HT, 5600 MT/s) 300W
• Intel® Xeon® Scalable Platinum 8568Y+, 2.3GHz (48-Core, HT, 5600 MT/s) 350W
• Intel® Xeon® Scalable Platinum 8570, 2.1GHz (56-Core, HT, 5600 MT/s) 350W
• Intel® Xeon® Scalable Platinum 8580, 2.0GHz (60-Core, HT, 5600 MT/s) 350W
• Intel® Xeon® Scalable Platinum 8592+, 1.9GHz (64-Core, HT, 5600 MT/s) 350W
• Intel® Xeon® Scalable Silver 4510T, 2.0GHz (12-Core, HT, 4400 MT/s) 115W
• Intel® Xeon® Scalable Gold 6538N, 2.1GHz (32-Core, HT, 5200 MT/s) 205W
• Intel® Xeon® Scalable Gold 6548N, 2.8GHz (32-Core, HT, 5200 MT/s) 250W
• Intel® Xeon® Scalable Gold 6554S, 2.2GHz (36-Core, HT, 5200 MT/s) 270W
• Intel® Xeon® Scalable Platinum 8558P, 2.7GHz (48-Core, HT, 5600 MT/s) 350W
• Intel® Xeon® Scalable Platinum 8592V, 2.0GHz (64-Core, HT, 4800 MT/s) 330W

Memory

• 16GB PC5-41600 5600MHz DDR5 ECC RDIMM
• 32GB PC5-41600 5600MHz DDR5 ECC RDIMM
• 64GB PC5-41600 5600MHz DDR5 ECC RDIMM
• 96GB PC5-41600 5600MHz DDR5 ECC RDIMM
• 128GB PC5-41600 5600MHz DDR5 ECC RDIMM
• 64GB PC5-51200 6400MHz DDR5 ECC RDIMM
• 96GB PC5-51200 6400MHz DDR5 ECC RDIMM
• 128GB PC5-51200 6400MHz DDR5 ECC RDIMM

Controller Card

• Supermicro AOC-S3808L-L8iT SAS3/SATA 8-Port Host Bus Adapter - PCIe 4.0 x8
• Supermicro AOC-S3908L-H8iR-16DD SAS3/SATA 8-Port RAID Controller - 8GB Cache - PCIe 4.0 x8

I/O Modules - Networking

• Intel E810-CQDA2 100GbE Network Adapter, QSFP28, PCIe 4.0 x16, OCP 3.0 - Dual Port
• Intel i350-AM2 Ethernet Adapter - 2x 1GbE RJ45 - AIOM OCP 3.0 PCIe 2.1 x4
• Supermicro AIOM OCP 3.0 - 2x 10GbE RJ45 - Intel X550-AT2 - PCI-E 3.0 x4 - AOC-ATG-i2TM
• Intel XL710-BM2 - 2x 10GbE SFP+ - AIOM OCP 3.0 PCIe 3.0 x8
• Intel X710-TM4 - 10GbE - 2x RJ45 & 2x SFP+ - AIOM OCP 3.0 PCIe 3.0 x8
• Broadcom BCM57414 - 2x 25GbE SFP28 - AIOM OCP 3.0, PCIe 3.0 x8
• Broadcom BCM57416 10GbE Adapter (2x RJ45) - AIOM PCIe 3.0 x8
• Mellanox ConnectX-4 Lx EN & Intel X550-AT2 - 2x 25GbE SFP28 + 2x 10GbE RJ45 - AIOM OCP 3.0 PCIe 3.0 x16
• Mellanox CX-6 LX - 2x 25GbE SFP28 - AIOM OCP 3.0, PCIe 3.0 x8

Operating System

• No Operating System
• Microsoft Windows Server 2025 Standard (16-core) (DSP)
• Microsoft Windows Server 2025 Standard (24-core) (DSP)
• Microsoft Windows Server 2025 Datacenter (16-core) (DSP)
• Microsoft Windows Server 2025 Datacenter (24-core) (DSP)
• CIQ Yearly Premium Support for Rocky Linux, Per Node, On Prem, 1-99 Nodes, 24/7 Web/Email/Slack Assist
• CIQ Yearly Standard Support for Rocky Linux, Per Node, On Prem, 1-99 Nodes, 8-6 Web/Email HD
• Rocky Linux 8.x (64-bit)
• Rocky Linux 9.x (64-bit)
• Debian Linux 12 (64-bit)
• Fedora Linux 40 Server Edition (64-bit)
• Ubuntu Linux 22.04 LTS Server Edition (64-bit)
• Ubuntu Linux 24.04 LTS Server Edition (64-bit)
• Red Hat® Enterprise Linux® 8 Server (Self Support) (1 Year)
• Red Hat® Enterprise Linux® 8 Server (Standard) (1 Year)
• Red Hat® Enterprise Linux® 8 Server (Premium) (1 Year)
• Red Hat® Enterprise Linux® 9 Server (Self Support) (1 Year)
• Red Hat® Enterprise Linux® 9 Server (Standard) (1 Year)
• Red Hat® Enterprise Linux® 9 Server (Premium) (1 Year)

Assembly and Testing

• System Assembly and Testing (Rackmount and Storage) (SYSBLD3)

Warranty

• 3-Year Silicon Mechanics Depot Warranty (Return for Repair)
• 3-Year Silicon Mechanics Advanced Parts Replacement Warranty (Zone 0)
• 3-Year Silicon Mechanics Advanced Parts Replacement Warranty (Zone 1)
• 3-Year Silicon Mechanics Advanced Parts Replacement Warranty (Zone 2)
• 3-Year Silicon Mechanics Advanced Parts Replacement Warranty and NBD Onsite Service (Zone 0)
• 3-Year Silicon Mechanics Advanced Parts Replacement Warranty and Onsite Service (Zone 1)
• 3-Year Silicon Mechanics Advanced Parts Replacement Warranty and Onsite Service (Zone 2)
• 4-Year Silicon Mechanics Advanced Parts Replacement Warranty (Zone 0)
• 4-Year Silicon Mechanics Advanced Parts Replacement Warranty (Zone 1)
• 4-Year Silicon Mechanics Advanced Parts Replacement Warranty (Zone 2)
• 4-Year Silicon Mechanics Advanced Parts Replacement Warranty and NBD Onsite Service (Zone 0)
• 4-Year Silicon Mechanics Advanced Parts Replacement Warranty and Onsite Service (Zone 1)
• 4-Year Silicon Mechanics Advanced Parts Replacement Warranty and Onsite Service (Zone 2)
• 5-Year Silicon Mechanics Advanced Parts Replacement Warranty (Zone 0)
• 5-Year Silicon Mechanics Advanced Parts Replacement Warranty (Zone 1)
• 5-Year Silicon Mechanics Advanced Parts Replacement Warranty (Zone 2)
• 5-Year Silicon Mechanics Advanced Parts Replacement Warranty and NBD Onsite Service (Zone 0)
• 5-Year Silicon Mechanics Advanced Parts Replacement Warranty and Onsite Service (Zone 1)
• 5-Year Silicon Mechanics Advanced Parts Replacement Warranty and Onsite Service (Zone 2)

$14,319.00

Prices may vary. Verify on vendor site.

View on Silicon Mechanics →

Quick Specs

Barebone: 5th Gen Intel® Xeon® processors - 2U - 24x 2.5-inch Hot-Swap - 2x M.2 - 1600W 1+1 Redundant
Processor: Intel® Xeon® Scalable Gold 6430, 2.1GHz (32-Core, HT, 4400 MT/s) 270W
Memory: 16GB PC5-41600 5600MHz DDR5 ECC RDIMM
Controller Card: Supermicro AOC-S3808L-L8iT SAS3/SATA 8-Port Host Bus Adapter - PCIe 4.0 x8
I/O Modules - Networking: Intel E810-CQDA2 100GbE Network Adapter, QSFP28, PCIe 4.0 x16, OCP 3.0 - Dual Port
Operating System: No Operating System
