Overview
NVIDIA Jetson-based edge AI system for embedded AI and robotics. Includes 16GB unified memory for running local AI models. Ideal for autonomous systems, industrial automation, and smart edge deployments.
Key Features
- ARM Cortex processor
- Up to 16GB DDR5 memory
- Integrated neural processing unit
- Optimized for edge deployment
Ideal For
Product Name

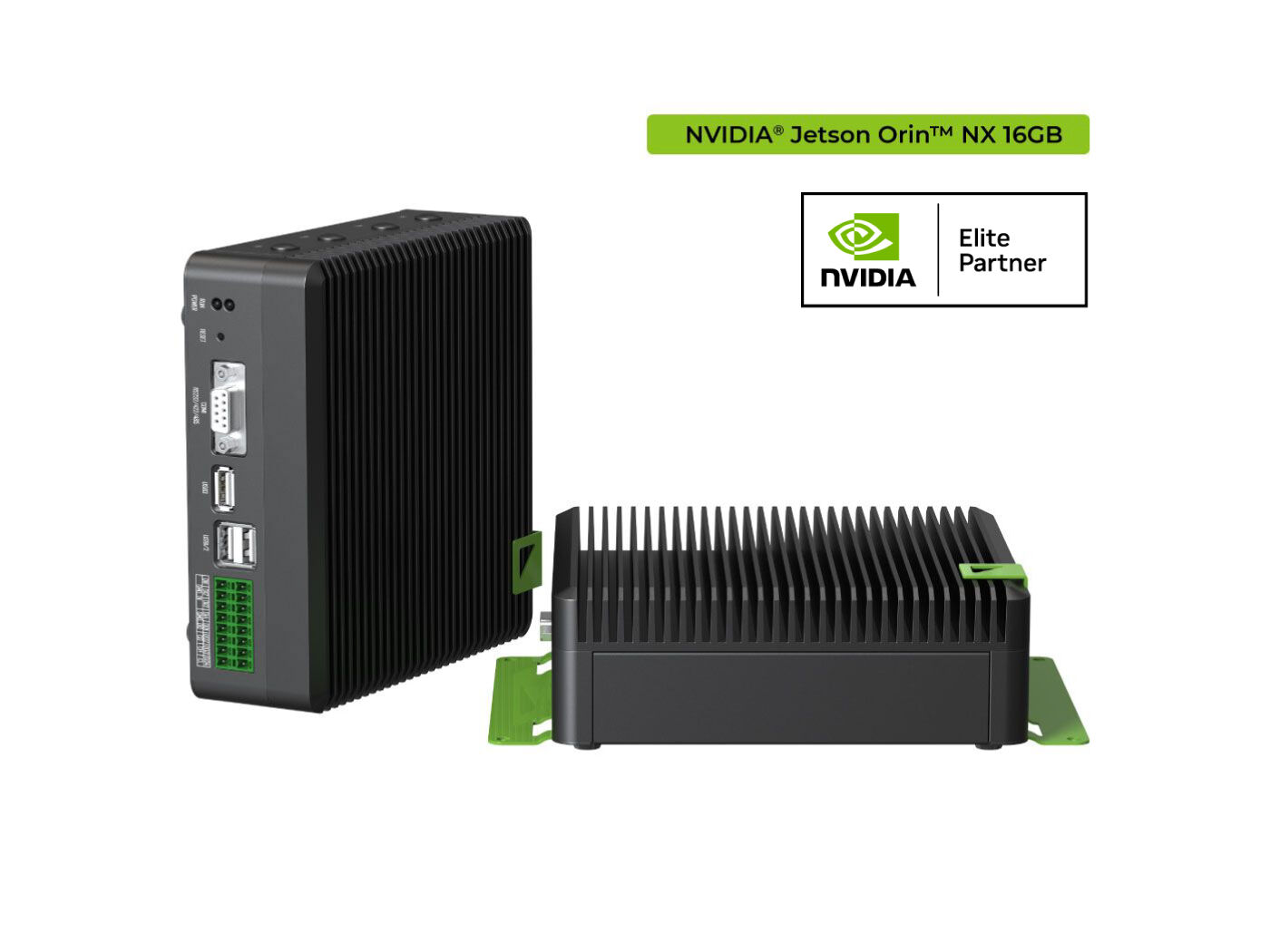

reComputer Industrial J4012
NVIDIA Jetson Module
Orin NX 16GB
SKU
110110191
Processor System
AI Performance
GPU
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU2MB L2 + 4MB L3
Memory
16GB 128-bit LPDDR5102.4GB/s
Video Encode
1*4K60 (H.265) | 3*4K30 (H.265) | 6*1080p60 (H.265) | 12*1080p30 (H.265)
Video Decode
1*8K30 (H.265) | 2*4K60 (H.265) | 4*4K30 (H.265) | 9*1080p60 (H.265) | 18*1080p30 (H.265)
Storage
eMMC
Expansion
M.2 Key M PCIe Gen4.0 SSD (M.2 NVMe 2280 SSD 128G included)
I/O
Networking
USB
3* USB3.2 Gen1, 1* USB2.0 Type C(Device mode), 1* USB2.0 Type C For Debug UART & RP2040
DI/DO
4*DI,4*DO,3*GND_DI,2*GND_DO,1*GND_ISO,1*CAN
COM
1* DB9 (RS232/RS422/RS485)
Display
1*HDMI 2.0 Type A
SIM
1* Nano SIM card slot
Expansion
Mini PCIe
Wi-Fi
Support SMD Wi-Fi/Bluetooth (Module optional)
M.2 Key B
M.2 Key B support 4G/5G (Module optional)
Fan
Fanless, passive heatsink1*Fan connectors(5V PWM)
TPM
1* TPM 2.0 connector (Module optional)
RTC
1* RTC socket (CR1220 included), 1* RTC 2-pin
Camera
2* CSI (2-lane 15pin)
Power
Power Supply
Power Adapter
19V Power Adapter(without power cord)
Mechanical
Dimensions (W x D x H)
Weight
1.57kg
Installation
Desk, DIN rail, wall-mounting, VESA
Environment
Operating Temperature
Operating Humidity
95% @ 40 °C (non-condensing)
Vibration
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock
50G peak acceleration (11 msec)
OS
Pre-installed Jetpack 5.1.x (above) (provide Linux OS with board support package)
Certification
FCC, CE, RoHS, UKCA
Warranty
2 Years
reComputer Industrial
x1
Mounting bracket
x2
DIN rail bracket
x1
Bracket screw
x4
16-Pin Terminal Block for DIO
x1
19V Power adapter (power cord sold separately)
x1
2-Pin Terminal block power connector
x1
Type
Product Name
4G
EC25EUXGA-MINIPCIE:EC20CEHCLG-MINIPCIE
5G
SIM8202G-M2
LORaWAN
Wio-WM1302 LoRaWAN Gateway Module (SPI) - US915 - M
TPM
TPM2.0 module with Infineon SLB9670
Wi-Fi/Bluetooth
BL-M8723DU1
GPS
EC25EUXGA-MINIPCIE
Video Analytics
Object recognition, tracking, and classification. These capabilities can be used in security systems, traffic monitoring, and smart cities.
Natural Language Processing
Speech recognition or language translation.
Medical Imaging
Analyzing medical images to assist with diagnosis or treatment planning.
Prices may vary. Verify on vendor site.
Quick Specs
- Product Name
- reComputer Industrial J4012
- NVIDIA Jetson Module
- Orin NX 16GB
- SKU
- 110110191
- Processor System
- AI Performance
- GPU
- 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
- CPU
- 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU2MB L2 + 4MB L3
