reComputer J3011 - Edge AI Computer with NVIDIA® Jetson™ Orin™ Nano 8GB (Support Super Mode）
Seeed Studio
Overview
NVIDIA Jetson-based edge AI system for embedded AI and robotics. Includes 8GB unified memory for running local AI models. Ideal for autonomous systems, industrial automation, and smart edge deployments.
Key Features
- Dual ARM Cortex processors
- Up to 8GB DDR5 memory
- Integrated neural processing unit
- Optimized for edge deployment
Ideal For
AI Performance
reComputer J3011 - Jetson Orin Nano 8GB, 40 TOPS reComputer J3010 - Jetson Orin Nano 4GB, 20 TOPS
GPU
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores (Orin Nano 8GB) 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores (Orin Nano 4GB)
CPU
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory
8GB 128-bit LPDDR5 68 GB/s (Orin Nano 8GB) 4GB 64-bit LPDDR5 34 GB/s (Orin Nano 4GB)
Video Encoder
1080p30 supported by 1-2 CPU cores
Video Decoder
1x 4K60 (H.265) | 2x 4K30 (H.265) | 5x 1080p60 (H.265) | 11x 1080p30 (H.265)
Storage
1x M.2 Key M PCIe (M.2 NVMe 2280 SSD 128G included)
Networking
Ethernet
M.2 KEY E
1x M.2 Key E(pre-installed 1x Wi-Fi/Bluetooth combo module)
I/O
USB
Camera
2x CSI (2-lane 15pin)
Display
1x HDMI 2.1
Fan
1x 4 pin Fan Connector (5V PWM)
CAN
1x CAN
Multifunctional Port
1x 40-Pin Expansion header 1x 12-Pin Control and UART header
RTC
1x RTC 2-pin, supports CR1220 but not included
Power
9-19V DC
Mechanical
Dimensions (W x D x H)
Installation
Desk, wall-mounting
Operating Temperature
-10℃~60℃
Warranty
1 Year
Brilliant AI Performance for Production
Achieves up to 40 TOPS AI performance with low power and latency, built by NVIDIA Orin SoC combining the NVIDIA Ampere™ GPU architecture with 64-bit operating capability, integrated advanced multi-function video and image processing, and NVIDIA Deep Learning Accelerators.

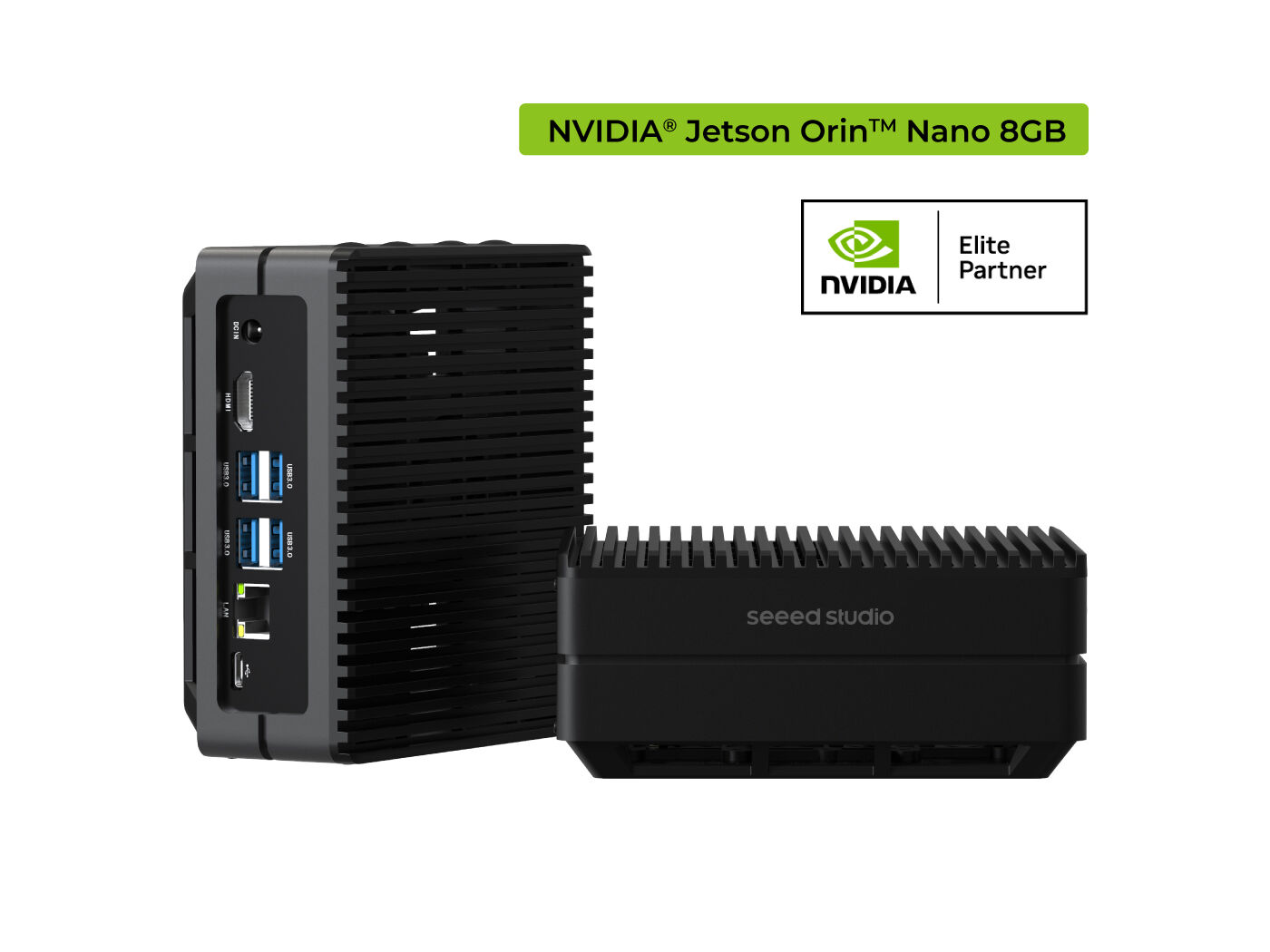

Hand-Size Edge AI Device
Compact size at 130mm x120mm x 58.5mm, featuring an NVIDIA Jetson Orin Nano 8GB module, J401 carrier board, enclosure, and power adapter. Support desktop and wall mounting.
Expandable with Rich I/Os
Includes 4x USB 3.2, HDMI 2.1, 2x CSI, 1x RJ45 for GbE, M.2 Key E, M.2 Key M, CAN, and GPIO.
Accelerate Solutions to Market
Pre-installed JetPack 5.1.1 on 128GB NVMe SSD, Linux OS BSP, supporting Jetson software and leading AI frameworks.
Scale to Deploy
support OTA, remote management services powered by Allxon and Balena.
Flexible Customization
inlcudes changing accessories modules, logo, and hardware interfaces modification based on reComputer J3011 original design.
Feature
For optimal performance with reComputer, we recommend using 128GB / 256GB / 512GB / 1TB SSDs from Seeed. Since some SSDs on the market may only be compatible with specific JetPack versions which may cause the device to fail to function properly, and this issue is also present with official NVIDIA dev kits.
Feature
If you are looking for the version without power adapter, please check out reComputer J3011 without power adapter
Feature
reComputer J401 carrier board, included in the full system - reComputer J3011
Feature
Desktop, Wall Mount, Expandable or fit in anywhere
Prices may vary. Verify on vendor site.
Quick Specs
- AI Performance
- reComputer J3011 - Jetson Orin Nano 8GB, 40 TOPS reComputer J3010 - Jetson Orin Nano 4GB, 20 TOPS
- GPU
- 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores (Orin Nano 8GB) 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores (Orin Nano 4GB)
- CPU
- 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
- Memory
- 8GB 128-bit LPDDR5 68 GB/s (Orin Nano 8GB) 4GB 64-bit LPDDR5 34 GB/s (Orin Nano 4GB)
- Video Encoder
- 1080p30 supported by 1-2 CPU cores
- Video Decoder
- 1x 4K60 (H.265) | 2x 4K30 (H.265) | 5x 1080p60 (H.265) | 11x 1080p30 (H.265)
