Overview
NVIDIA Jetson-based edge AI system for embedded AI and robotics. Ideal for autonomous systems, industrial automation, and smart edge deployments.
Key Features
- Dual ARM Cortex processors
- Integrated neural processing unit
- Optimized for edge deployment
Ideal For
Storage
1x M.2 Key M (connector to Support 2280 NVMe SSD)
Networking
Ethernet
M.2 KEY E
1x M.2 Key E for WiFi/Bluetooth module
I/O
USB
Camera
2x CSI (2-lane 15pin)
Display
1x HDMI 2.1
Fan
1x 4 pin Fan Connector (5V PWM)
CAN
1x CAN
Multifunctional Port
1x 40-Pin Expansion header 1x 12-Pin Control and UART header
RTC
1x RTC 2-pin, supports CR1220 but not included
Power
9-19V DC
Mechanical
Dimensions (W x D)
Installation
Desk, wall-mounting
Operating Temperature
10ā~60ā

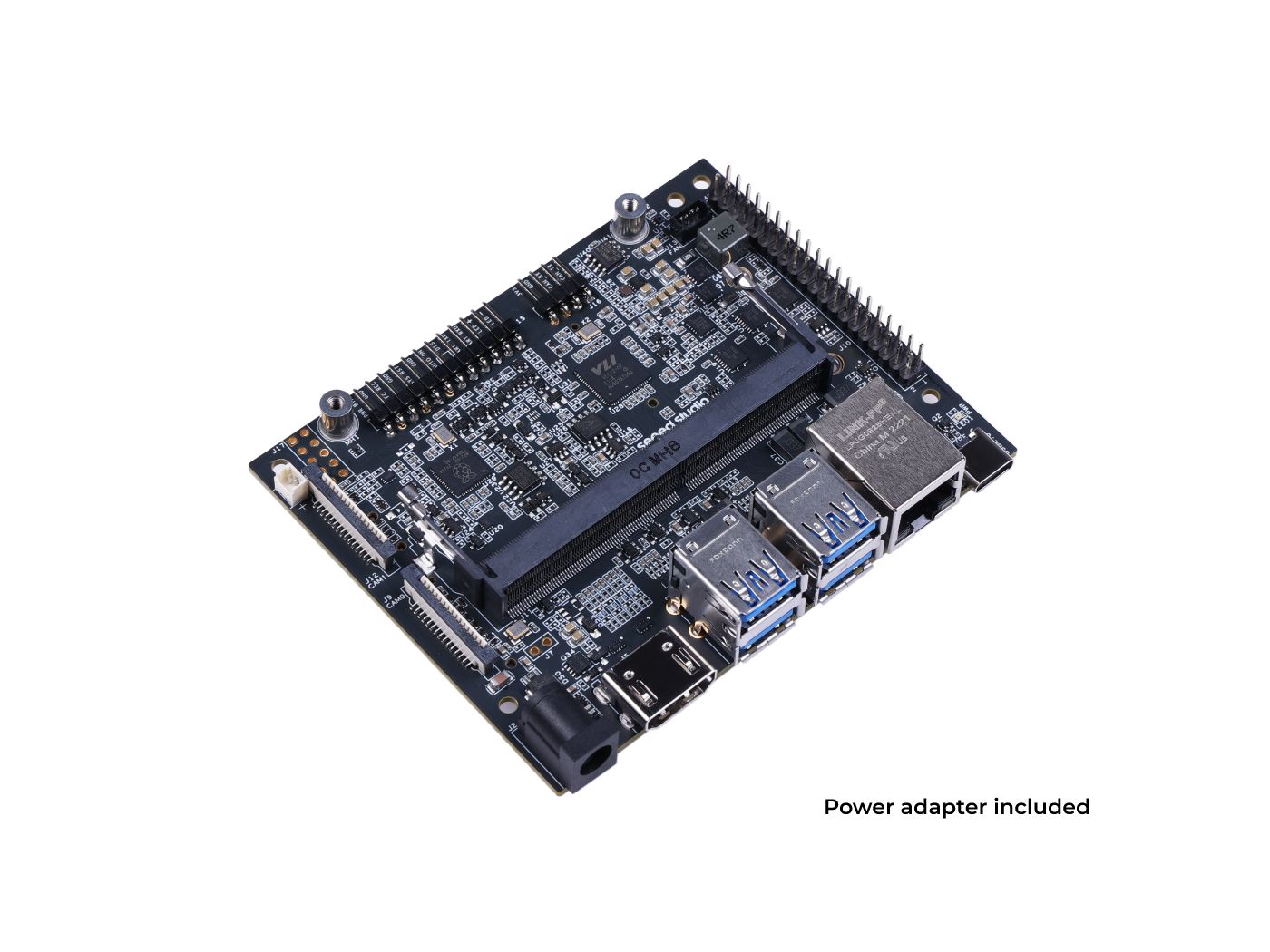

Exceptional Performance Carrier Board
Supports NVIDIA Jetson Orin NX/Nano modules, leveraging up to 100 TOPS powerful computing power for tough tasks with ease.
Versatile Connectivity
Offers Gigabit Ethernet, 4x USB 3.2 Type-A, USB 2.0 Type-C, CAN connector, and HDMI 2.1 for networking and data transfer.
Expand Storage and Wireless
Includes M.2 Key M and M.2 Key E slots for flexible storage and wireless connectivity expansion.
Mount Sensors with Peripheral Support
Features 2x MIPI CSI-2 22-pin camera connectors, fan, RTC, and a 40-pin expansion header for multiple peripherals.
Open Source Design
The J401 carrier board is open-source, with design files prepared in Cadence Allegro 17.4.
Feature
AI Video Analytics
Feature
Machine Vision
Feature
Autonomous Mobile Robot (AMR)
Feature
Generative AI
