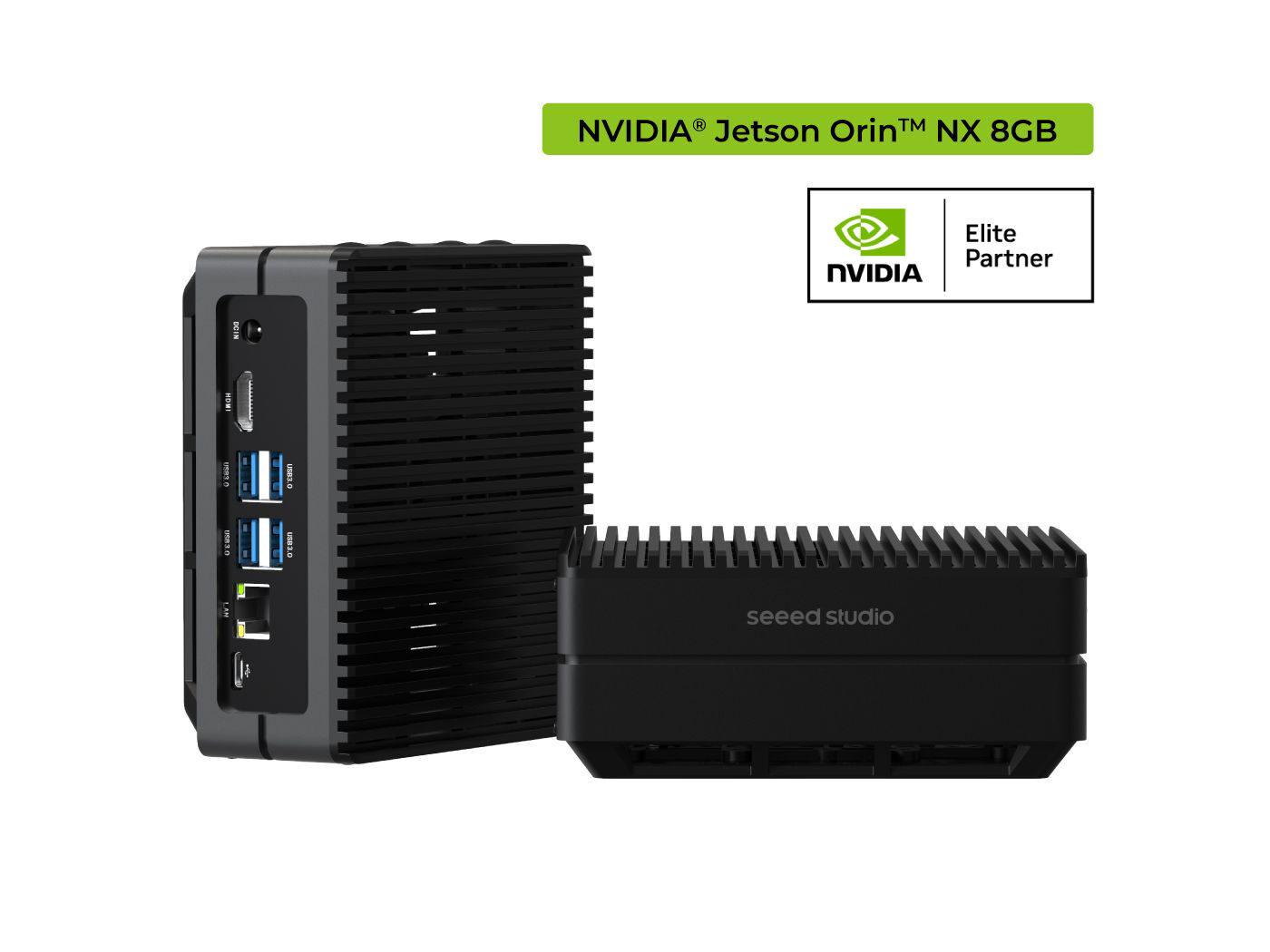

reComputer J4011 - Edge AI Computer with NVIDIA® Jetson™ Orin™ NX 8GB （Super Mode NOT Supported)
Seeed Studio
Overview
NVIDIA Jetson-based edge AI system for embedded AI and robotics. Includes 8GB unified memory for running local AI models. Ideal for autonomous systems, industrial automation, and smart edge deployments.
Key Features
- Dual ARM Cortex processors
- Up to 8GB DDR5 memory
- Integrated neural processing unit
- Optimized for edge deployment
Ideal For
Specifications
reComputer J4011
Module
Jetson Orin NX 8GB
AI Performance
70 TOPS
GPU
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
GPU Max Frequency
765 MHz
CPU
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
CPU Max Frequency
2 GHz
Memory
8GB 128-bit LPDDR5 102.4GB/s
DL Accelerator
1x NVDLA v2
DLA Max Frequency
614 MHz
Vision Accelerator
1x PVA v2
Storage
(Supports external NVMe)
Video Encoder
1x 4K60 (H.265) | 3x 4K30 (H.265) 6x 1080p60 (H.265) | 12x 1080p30 (H.265)
Video Decoder
1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) 9x 1080p60 (H.265) | 18x 1080p30 (H.265)
Display
1* HDMI 2.1
CSI Camera
2* CSI （2-lane 15pin）
Networking
1* Gigabit Ethernet (10/100/1000M)
USB
4* USB 3.2 Type-A (10Gbps); 1* USB2.0 Type-C (Device Mode)
M.2 Key M
1* M.2 Key M
M.2 Key E
1* M.2 Key E
Fan
1* 4 pin Fan Connector(5V PWM)
CAN
1* CAN
Multifunctional Port
1* 40-Pin Expansion header,1* 12-Pin Control and UART header
RTC
RTC 2-pin, RTC socket (supports CR1220 but not included)
Power
9-19V
Power Supply
DC 12V/5A(Barrel Jack 5.5/2.5mm)
Temperature
-10℃~60℃
Mechanical
130mm x120mm x 58.5mm
NVIDIA Jetson Orin™ NX 8GB
x1
Seeed carrier board (reComputer J401) x1
x1
128GB NVMe SSD x 1
x1
Aluminum heatsink with fan x1
x1
Aluminum case (black) x1
x1
12V/5A(Barrel Jack 5.5/2.5mm) Power Adapter (Power cord not included)
x1
Brilliant AI Performance for production
on-device processing with up to 70 TOPS AI performance with low power and low latency
Hand-size edge AI device
compact size at 130mm x120mm x 58.5mm, includes NVIDIA Jetson Orin™ NX production module, a heatsink, enclosure, and a power adapter. Support desktop, wall mount, fit in anywhere
Expandable with rich I/Os
4x USB3.2, HDMI 2.1, 2xCSI, 1xRJ45 for GbE, M.2 Key E, M.2 Key M, CAN and GPIO
Accelerate solution to market
pre-installed JetPack with NVIDIA JetPack™ 5.1.1 on the included 128GB NVMe SSD, Linux OS BSP, 128GB SSD, support Jetson software and leading AI frameworks and software platforms
Comprehensive certificates
FCC, CE, RoHS, UKCA
Feature
NVIDIA DeepStream SDK delivers a complete streaming analytics toolkit for AI-based multi-sensor processing and video and image understanding on Jetson.
Feature
NVIDIA TAO Toolkit, built on TensorFlow and PyTorch, is a low-code version of the NVIDIA TAO framework that accelerates the model training
Feature
NVIDIA® Riva is a GPU-accelerated SDK for building Speech AI applications that are customized for your use case and deliver real-time performance.
Feature
NVIDIA Isaac ROS GEMs are hardware-accelerated packages that make it easier for ROS developers to build high-performance solutions on NVIDIA hardware. Learn more about NVIDIA Developer Tools
Feature
Cogniteam Nimbus is a cloud-based solution that allows developers to manage autonomous robots more effectively. Nimbus platform supports NVIDIA® Jetson™ and ISAAC SDK and GEMs out-of-the-box. Check out our webinar on connecting your ROS Project to the Cloud with Nimbus.
Video Analytics
Object recognition, tracking, and classification. These capabilities can be used in security systems, traffic monitoring, and business advertisement analytics.
Natural Language Processing
Speech recognition or language translation.
Medical Imaging
Analyzing medical images to assist with diagnosis or treatment planning.
