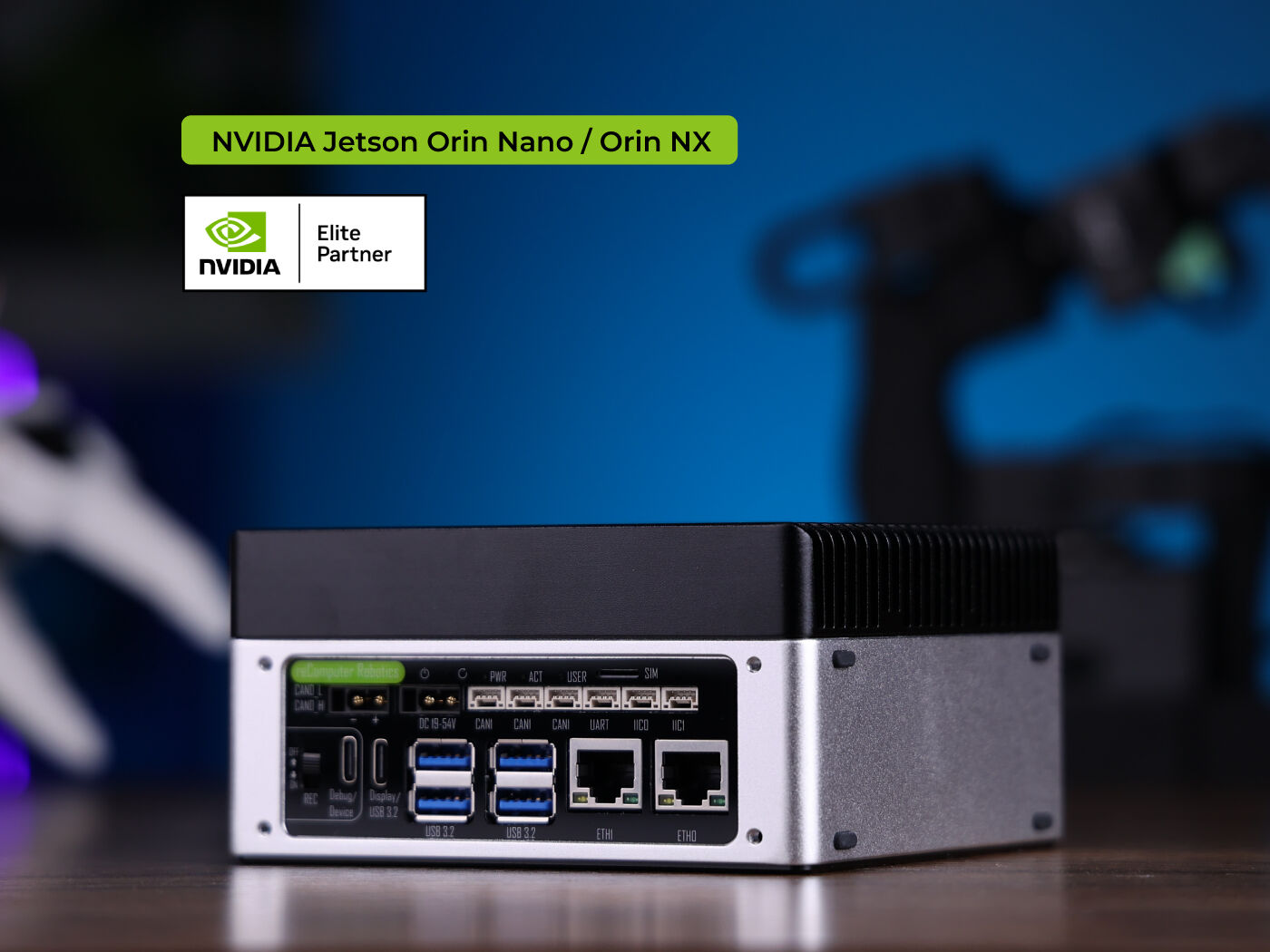

reComputer Robotics J3011 - Intelligent Edge AI Computer with NVIDIA Jetson Orin Nano Super 8GB
by
Complete Technical Specifications
Applications Processor(AP)
NVIDIA Jetson Orin™ Nano 8GB
AI Performance
Orin Nano 8GB – 67 TOPS (MAXN)
GPU
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
GPU Max Frequency
1020 MHz (MAXN_SUPER)
CPU
6-core Arm® Cortex®-A78AE
CPU Max Frequency
1.7 GHz (MAXN_SUPER)
Memory
8GB 128-bit wide LPDDR5 DRAM(up to 68GB/s; 102 GB/s MAXN_SUPER)
Power
7W - 15W - 25W
Video Encode
1080p30 supported by 1-2 CPU cores
Video Decode
1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)
CSI camera
Up to 4 cameras
(8 via virtual channels)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)
Mechanical
69.6mm x 45mm
260-pin SO-DIMM connector
Storage
1x M.2 KEY M PCIe
Networking
M.2 KEY E
M.2 KEY B
1x M.2 Key B for 5G module
Ethernet
2x RJ-45 Gigabit Ethernet
I/O
USB
CAN
2x CAN0 (XT30(2+2))
3x CAN1 (4-Pin GH-1.25 Header)
Display
1x DP1.4 (Type C Host)
UART
1 x UART 4-Pin GH-1.25 Header
I2C
2x I2C 4-Pin GH-1.25 Header
Fan
1x 4-Pin Fan Connector (5V PWM)
1x 4-Pin Fan Connector (12V PWM)
Extension Port
1x Camera Expansion Header (for GMSL2 board, not included)
RTC
1x RTC 2-pin
1x RTC Socket
LED
3x LED (PWR, ACT and User LED)
Pinhole Button
1x PWR
1x RESET
DIP Switch
1x REC
Antenna Hole
5x Antenna Hole
Power
19-54V XT30(2+2) (XT30 to 5525 DC Jack Cable included)
Jetpack Version
Jetpack 6.2
Mechanical
Dimensions (W x D x H)
Weight
200g
Installation
Desk, Wall-mounting
Operating Temperature
-20℃~60℃ (25W Mode)
-20℃~55℃ (MAXN Mode)
(with reComputer Robotics heat sink with fan)
Warranty
2 Years
Certification (Pending)
RoHS, REACH, CE, FCC, KC
