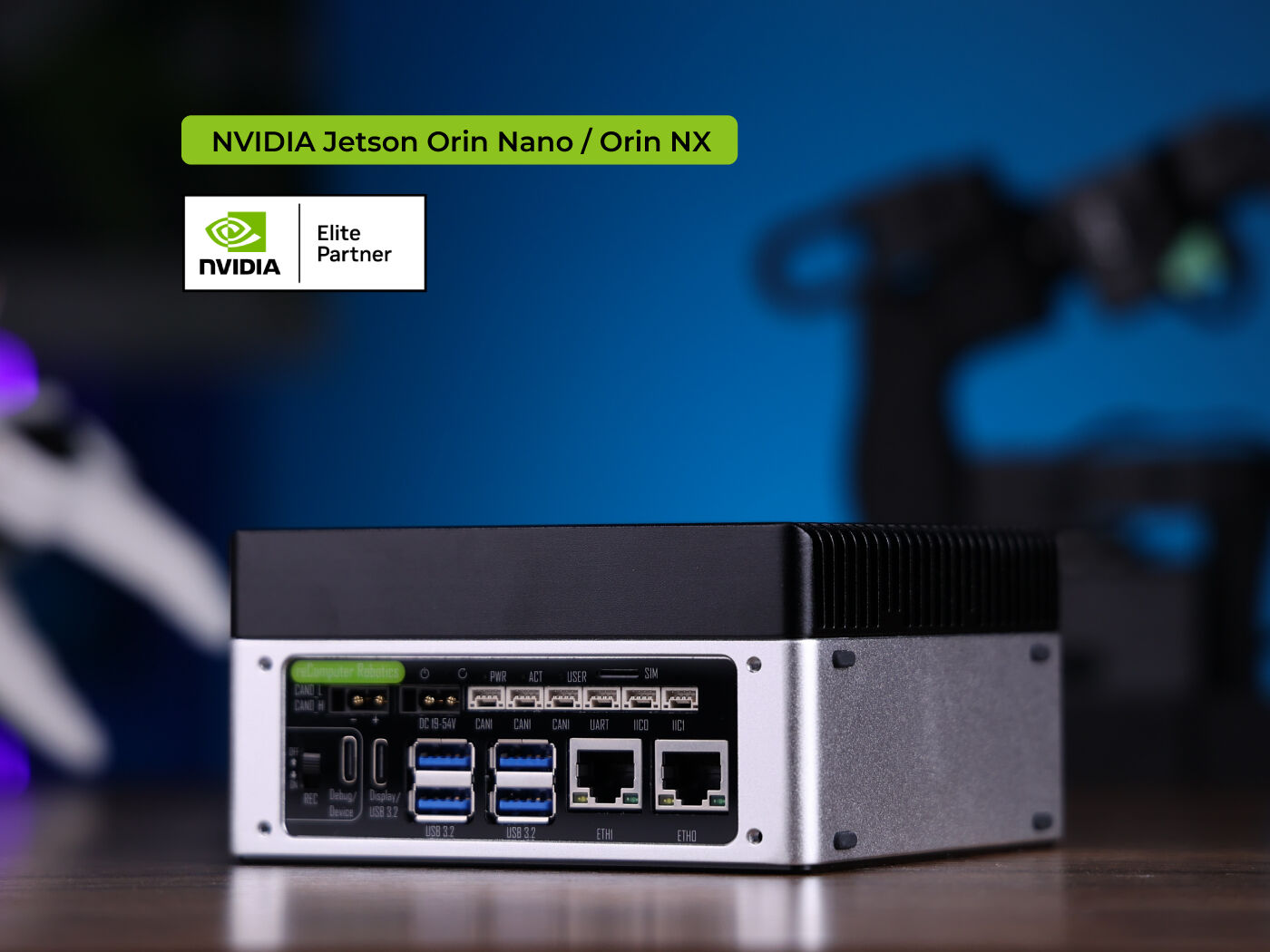

reComputer Robotics J4012 - Intelligent Edge AI Computer with NVIDIA Jetson Orin NX Super 16GB
by
Complete Technical Specifications
Applications Processor(AP)
NVIDIA Jetson Orin™ NX 16GB
AI Performance
Orin NX 16GB – 157 TOPS (MAXN)
GPU
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
GPU Max Frequency
1173 MHz
CPU
8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
CPU Max Frequency
2.0 GHz
DL Accelerator
2 x NVDLA v2.0
DL Max Frequency
1.23 GHz
Vision Accelerator
1 x PVA v2.0
Memory
16GB 128-bit wide LPDDR5 DRAM 102.4GB/s
Power
10W - 15W - 25W - 40W
Video Encode
1x 4K60 (H.265)
3x 4K30 (H.265)
6x 1080p60 (H.265)
12x 1080p30 (H.265)
Video Decode
1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)
18x 1080p30 (H.265)
CSI camera
Up to 4 cameras
(8 via virtual channels)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)
Mechanical
69.6mm x 45mm
260-pin SO-DIMM connector
Storage
1x M.2 KEY M PCIe
Networking
M.2 KEY E
M.2 KEY B
1x M.2 Key B for 5G module
Ethernet
2x RJ-45 Gigabit Ethernet
I/O
USB
CAN
2x CAN0 (XT30(2+2))
3x CAN1 (4-Pin GH-1.25 Header)
Display
1x DP1.4 (Type C Host)
UART
1 x UART 4-Pin GH-1.25 Header
I2C
2x I2C 4-Pin GH-1.25 Header
Fan
1x 4-Pin Fan Connector (5V PWM)
1x 4-Pin Fan Connector (12V PWM)
Extension Port
1x Camera Expansion Header (for GMSL2 board, not included)
RTC
1x RTC 2-pin
1x RTC Socket
LED
3x LED (PWR, ACT and User LED)
Pinhole Button
1x PWR
1x RESET
DIP Switch
1x REC
Antenna Hole
5x Antenna Hole
Power
19-54V XT30(2+2) (XT30 to 5525 DC Jack Cable included)
Jetpack Version
Jetpack 6.2
Mechanical
Dimensions (W x D x H)
Weight
200g
Installation
Desk, Wall-mounting
Operating Temperature
-20℃~60℃ (25W Mode)
-20℃~55℃ (MAXN Mode)
(with reComputer Robotics heat sink with fan)
Warranty
2 Years
Certification
(Pending)
RoHS, REACH, CE, FCC, KC
