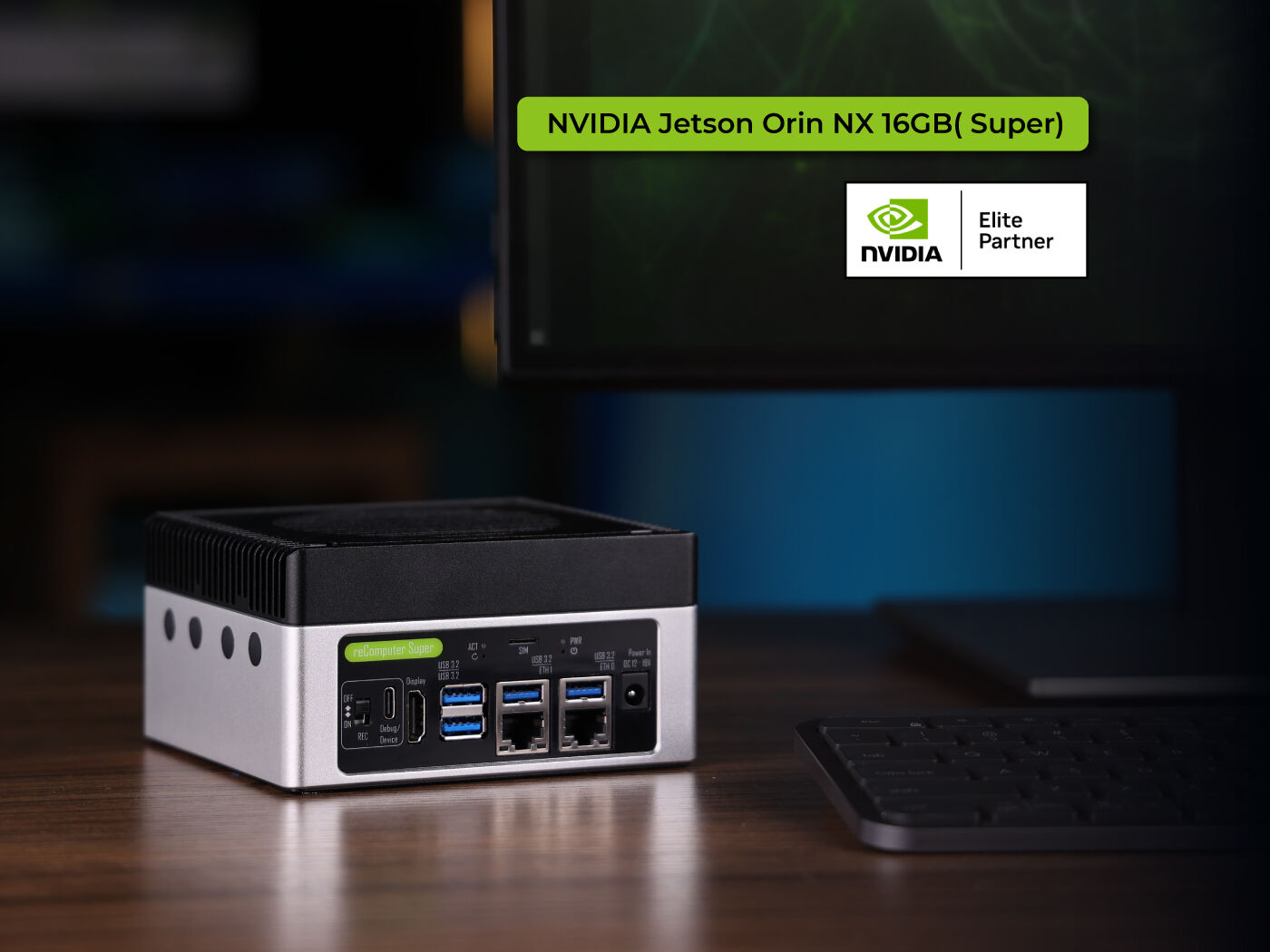

reComputer Super J4012 - Advanced Edge AI Computer with NVIDIA® Jetson™ Orin™ NX 16GB
Seeed Studio
Overview
NVIDIA Jetson-based edge AI system for embedded AI and robotics. Includes 20GB unified memory for running local AI models. Ideal for autonomous systems, industrial automation, and smart edge deployments.
Key Features
- Dual ARM Cortex processors
- Up to 20GB DDR5 memory
- Integrated neural processing unit
- Optimized for edge deployment
Ideal For
Applications Processor(AP)
NVIDIA Orin™ NX 8GB
AI Performance
Orin NX 8GB – 117 TOPS(MAXN)
GPU
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
GPU Max Frequency
1173 MHz
CPU
6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
CPU Max Frequency
2.0 GHz
DL Accelerator
1 x NVDLA v2.0
DL Max Frequency
1.23 GHz
Vision Accelerator
1 x PVA v2.0
Memory
8GB 128-bit wide LPDDR5 DRAM 102.4 GB/s
Power
10W - 15W - 25W - 40W
Video Encode
1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265)
Video Decode
1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265)
CSI camera
Up to 4 cameras (8 via virtual channels***) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps)
Mechanical
69.6mm x 45mm 260-pin SO-DIMM connector
Storage
1x M.2 KEY M PCIe (M.2 NVMe 2280 SSD 128G included)
Networking
M.2 KEY E
Mini PCIe
1x mini-PCIe for LTE 4G module
Ethernet
2x RJ45 Gigabit Ethernet
I/O
USB
Camera
4x mipi CSI(2-lane 15-Pin)
CAN
1 x CAN(4-Pin Header)
Display
1x HDMI 2.1
Fan
1x 4-Pin 1.25mm Fan Connector (5V PWM) 1x 4-Pin 2.54mm Fan Connector (12V PWM)
Extension Port
1x 40-Pin extension header 1x 12-Pin control and UART header
RTC
1x RTC 2-pin 1x RTC Socket
LED
2x LED(PWR and ACT)
Button
1x PWR 1x RESET
Switch
1x REC
Antenna hole
4x Antenna Hole
Power
12-19V 5525 Barrel DC Jack
Jetpack Version
Jetpack 6.2
Mechanical
Dimensions (W x D x H)
Weight
1110g
Installation
Desk, Wall-mounting
Operating Temperature
-20℃~65℃(25W Mode) -20℃~60℃(MAXN Mode)
Warranty
2 Years
Certification
RoHS,REACH,CE,FCC,UKCA, KC
