Complete Technical Specifications
H12DSG-O-CPU
Print
H12DSG-O-CPU
Print
- Discontinued SKU (EOL). Please contact sales-rep for alternative options.
AS -4124GS-TNR
AS -4124GS-TNR

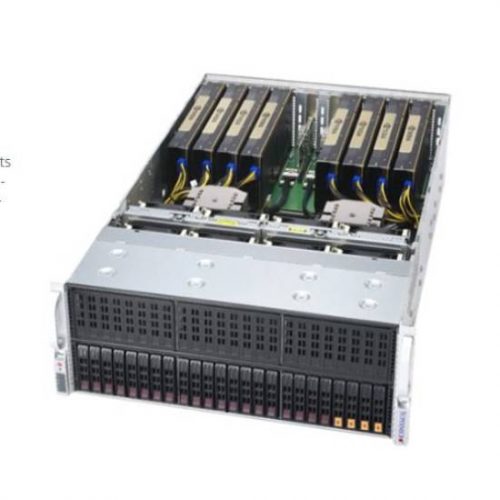

A+ Server 4124GS-TNR (Black)
CPU
Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)*Socket SP3Supports CPU TDP up to 280W**
Cores
Up to 128 Cores (64 per CPU)
Note
* Supports 2 CPUs only - single socket not supported** Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
Supported GPUs
8 Double-Width/Single-Width PCI-E 3.0/4.0 x16 Card (Full Height Full Length)NVIDIA A100, V100, A40, T4, Quadro RTX, AMD InstinctSupports both active and passive cooled GPUsCompatible GPU list
CPU-GPU Interconnect
PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root
GPU-GPU Interconnect
NVIDIA® NVLink™ Bridge (Optional), AMD Infinity Fabric (optional)
Memory Capacity
32 DIMM slots*Up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type
3200MHz ECC DDR4 RDIMM/LRDIMM**
Note
* Minimum 4 DIMMs per CPU required with EPYC 7003 Series processors** In 2DPC configurations memory speed is up to 2933MHz
Chipset
System on Chip (SoC)
SATA
SATA3 (6Gbps)
Network Controllers
Provided via riser card
IPMI
Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
ASPEED AST2500 BMC
SATA/SAS
24 SATA/SAS with a controller
LAN
2 RJ45 GbE LAN ports (rear)1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 ports (rear)
Video
1 VGA Connector
COM Port
1 COM port (header)
BIOS Type
AMI 32Mb SPI Flash ROM
Software
IPMI 2.0KVM with dedicated LANSSM, SPM, SUMSuperDoctor® 5Watchdog
CPU
Monitors for CPU Cores, Chipset Voltages, Memory.4+1 Phase-switching voltage regulator
FAN
Fans with tachometer monitoringStatus monitor for speed controlPulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environmentThermal Control for fan connectors
Other Features
RoT
AS -4124GS-TNR
A+ Server 4124GS-TNR (Black)
CPU
Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)*Socket SP3Supports CPU TDP up to 280W**
Cores
Up to 128 Cores (64 per CPU)
Note
* Supports 2 CPUs only - single socket not supported** Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
Supported GPUs
8 Double-Width/Single-Width PCI-E 3.0/4.0 x16 Card (Full Height Full Length)NVIDIA A100, V100, A40, T4, Quadro RTX, AMD InstinctSupports both active and passive cooled GPUsCompatible GPU list
CPU-GPU Interconnect
PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root
GPU-GPU Interconnect
NVIDIA® NVLink™ Bridge (Optional), AMD Infinity Fabric (optional)
Memory Capacity
32 DIMM slots*Up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type
3200MHz ECC DDR4 RDIMM/LRDIMM**
Note
* Minimum 4 DIMMs per CPU required with EPYC 7003 Series processors** In 2DPC configurations memory speed is up to 2933MHz
Chipset
System on Chip (SoC)
SATA
SATA3 (6Gbps)
Network Controllers
Provided via riser card
IPMI
Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
ASPEED AST2500 BMC
SATA/SAS
24 SATA/SAS with a controller
LAN
2 RJ45 GbE LAN ports (rear)1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 ports (rear)
Video
1 VGA Connector
COM Port
1 COM port (header)
BIOS Type
AMI 32Mb SPI Flash ROM
Software
IPMI 2.0KVM with dedicated LANSSM, SPM, SUMSuperDoctor® 5Watchdog
CPU
Monitors for CPU Cores, Chipset Voltages, Memory.4+1 Phase-switching voltage regulator
FAN
Fans with tachometer monitoringStatus monitor for speed controlPulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environmentThermal Control for fan connectors
Other Features
RoT
Form Factor
4U RackmountableRackmount Kit (MCP-290-00057-0N)
Model
CSE-418G2TS-R4016BP
Height
7.0" (178mm)
Width
17.2" (437mm)
Depth
29" (737mm)
Package
26.57" (H) x 27" (W) x 41" (D)
Weight
Net Weight: 65.5 lbs (29.7 kg)Gross Weight: 100 lbs (45.3 kg)
Available Colors
Black
Hot-swap
Up to 24x 2.5" SAS/SATA drive bays2x 2.5" SATA supported natively*4x 2.5" NVMe (Gen3 only) supported nativelyRAID controller option available for 24 HDDs
Note
* 2x drives in RAID 1 only via onboard Marvell 9230
PCI-Express
9 PCI-E 4.0 x16 (FHFL) slotsor 10 PCI-E 4.0 x16 (FHFL) slots without NVMe devices
Fans
8x 11.5K RPM heavy duty fans
Total Output Power
1000W: 100 - 127Vac1800W: 200 - 220Vac1980W: 220 - 230Vac2000W: 230 - 240Vac2000W: 220 - 240Vac (UL only)
Dimension(W x H x L)
73.5 x 40 x 203 mm
Input
100-127Vac / 12-9A / 50-60Hz200-220Vac / 10-9.8A / 50-60Hz220-230Vac / 10-9.8A / 50-60Hz230-240Vac / 10-9.8A / 50-60Hz220-240Vac / 11-10A / 50-60Hz (UL only)
+12V
Max: 83A / Min: 0A (100-127Vac)Max: 150A / Min: 0A (200-220Vac)Max: 165A / Min: 0A (220-230Vac)Max: 166A / Min: 0A (230-240Vac)Max: 166A / Min: 0A (220-240Vac) (UL only)
12Vsb
Max: 3.5A / Min: 0A
Output Type
25 Pairs Gold Finger Connector
Certification
Titanium Level [ Test Report ]
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
Form Factor
4U RackmountableRackmount Kit (MCP-290-00057-0N)
Model
CSE-418G2TS-R4016BP
Height
7.0" (178mm)
Width
17.2" (437mm)
Depth
29" (737mm)
Package
26.57" (H) x 27" (W) x 41" (D)
Weight
Net Weight: 65.5 lbs (29.7 kg)Gross Weight: 100 lbs (45.3 kg)
Available Colors
Black
Hot-swap
Up to 24x 2.5" SAS/SATA drive bays2x 2.5" SATA supported natively*4x 2.5" NVMe (Gen3 only) supported nativelyRAID controller option available for 24 HDDs
Note
* 2x drives in RAID 1 only via onboard Marvell 9230
PCI-Express
9 PCI-E 4.0 x16 (FHFL) slotsor 10 PCI-E 4.0 x16 (FHFL) slots without NVMe devices
Fans
8x 11.5K RPM heavy duty fans
Total Output Power
1000W: 100 - 127Vac1800W: 200 - 220Vac1980W: 220 - 230Vac2000W: 230 - 240Vac2000W: 220 - 240Vac (UL only)
Dimension(W x H x L)
73.5 x 40 x 203 mm
Input
100-127Vac / 12-9A / 50-60Hz200-220Vac / 10-9.8A / 50-60Hz220-230Vac / 10-9.8A / 50-60Hz230-240Vac / 10-9.8A / 50-60Hz220-240Vac / 11-10A / 50-60Hz (UL only)
+12V
Max: 83A / Min: 0A (100-127Vac)Max: 150A / Min: 0A (200-220Vac)Max: 165A / Min: 0A (220-230Vac)Max: 166A / Min: 0A (230-240Vac)Max: 166A / Min: 0A (220-240Vac) (UL only)
12Vsb
Max: 3.5A / Min: 0A
Output Type
25 Pairs Gold Finger Connector
Certification
Titanium Level [ Test Report ]
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
Note:
1. Use with CBL-PWEX-1028
Note:
2. Requires 2x CBL-SAST-0531
