Complete Technical Specifications
Part Number
Print
Part Number
Print
MBD-H12DSi-N6
H12DSi-N6
Form Factor
EATX
Dimensions
12" x 13.05" (30.5cm x 33.1cm)
CPU
Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)Socket SP3
Cores
Up to 64 Cores
Chipset
System on Chip
Memory Capacity
16 DIMM slotsSupports up to 4TB Registered ECC DDR4 3200MHz SDRAM8-channel memory busFor Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errorsDetects double-bit errors (using ECC memory)
SATA
SATA3 (6 Gbps)
IPMI
Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2600 BMC
Network Controllers
Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller
VGA
ASPEED AST2600 BMC
SATA
10 SATA3 (6 Gbps) ports
LAN
2x 1GbE LAN ports1 RJ45 Dedicated IPMI LAN port
USB
2 USB 2.0 ports (rear)4 USB 3.0 ports (2 rear, 2 headers)
VGA
1 VGA port
Others
1 COM port (rear)2 SATA DOM power connectors4 PCI-E 4.0 NVMe x4 internal portsTPM 2.0 header
PCI-Express
3 PCI-E 4.0 x16 slots3 PCI-E 4.0 x8 slots
M.2
Interface: 1 PCI-E 4.0 x4Form Factor: 2280, 22110Key: M-key
MBD-H12DSi-N6
H12DSi-N6
Form Factor
EATX
Dimensions
12" x 13.05" (30.5cm x 33.1cm)
CPU
Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)Socket SP3
Cores
Up to 64 Cores
Chipset
System on Chip
Memory Capacity
16 DIMM slotsSupports up to 4TB Registered ECC DDR4 3200MHz SDRAM8-channel memory busFor Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errorsDetects double-bit errors (using ECC memory)
SATA
SATA3 (6 Gbps)
IPMI
Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2600 BMC
Network Controllers
Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller
VGA
ASPEED AST2600 BMC
SATA
10 SATA3 (6 Gbps) ports
LAN
2x 1GbE LAN ports1 RJ45 Dedicated IPMI LAN port
USB
2 USB 2.0 ports (rear)4 USB 3.0 ports (2 rear, 2 headers)
VGA
1 VGA port
Others
1 COM port (rear)2 SATA DOM power connectors4 PCI-E 4.0 NVMe x4 internal portsTPM 2.0 header
PCI-Express
3 PCI-E 4.0 x16 slots3 PCI-E 4.0 x8 slots
M.2
Interface: 1 PCI-E 4.0 x4Form Factor: 2280, 22110Key: M-key
Model(s)

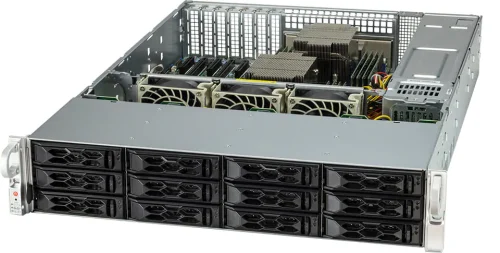

AS -2024S-TR
BIOS Type
AMI 256Mb SPI Flash EEPROM
BIOS Features
Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 6.2USB Keyboard SupportSMBIOS 3.1.1
Software
Super Doctor 5Watch DogNMISUMIPMI 2.0, KVM with dedicated LAN
Power Configurations
ACPI Power ManagementPower-on mode control for AC power loss recovery
CPU
Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standbyCPU switching voltage regulatorVBAT
FAN
Up to 8 fan status tachometer monitoring Up to 8x 4-pin fan headers Status monitor for speed controlPulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environmentCPU Thermal Trip SupportThermal control for 8x Fan connectorsI²C Temperature Sensing Logic
LED
CPU / System Overheat LED
Other Features
Chassis Intrusion DetectionChassis Intrusion Header
Environmental Specifications
Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
Model(s)
AS -2024S-TR
BIOS Type
AMI 256Mb SPI Flash EEPROM
BIOS Features
Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 6.2USB Keyboard SupportSMBIOS 3.1.1
Software
Super Doctor 5Watch DogNMISUMIPMI 2.0, KVM with dedicated LAN
Power Configurations
ACPI Power ManagementPower-on mode control for AC power loss recovery
CPU
Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standbyCPU switching voltage regulatorVBAT
FAN
Up to 8 fan status tachometer monitoring Up to 8x 4-pin fan headers Status monitor for speed controlPulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environmentCPU Thermal Trip SupportThermal control for 8x Fan connectorsI²C Temperature Sensing Logic
LED
CPU / System Overheat LED
Other Features
Chassis Intrusion DetectionChassis Intrusion Header
Environmental Specifications
Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
