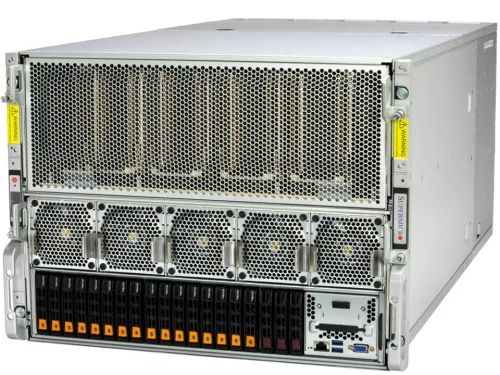

Supermicro GPU SuperServer SYS-821GE-TNHR, NVIDIA DELTA-NEXT HGX GPU Baseboard, 8 H100 80GB SXM5
by
Complete Technical Specifications
MBD-X13DEG-OAD
Print
MBD-X13DEG-OAD
Print
MBD-X13DEG-OAD
Form Factor
Form Factor
Proprietary
Dimension
15" x 17" (38.1cm x 43.18cm)
CPU
Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Core Count
Up to 64C
Note
Supports up to 350W TDP CPUs
Memory
Slot Count: 32 DIMM Slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors Detects double-bit errors (using ECC memory)
Chipset
Intel® C741
SATA
8 SATA (6Gbps) via Intel® C741; via SlimSAS
TPM
1 TPM header
Form Factor
Proprietary
Dimension
15" x 17" (38.1cm x 43.18cm)
CPU
Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Core Count
Up to 64C
Note
Supports up to 350W TDP CPUs
Memory
Slot Count: 32 DIMM Slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors Detects double-bit errors (using ECC memory)
Chipset
Intel® C741
SATA
8 SATA (6Gbps) via Intel® C741; via SlimSAS
TPM
1 TPM header
PCI-Express (PCIe) Configuration
1 PCIe 5.0 x16 AIOM slot 12 PCIe 5.0 x8 via MCIO Connector slots
BIOS Type
AMI 64MB UEFI
BIOS Features
Plug and Play (PnP) ACPI 6.4 PCI FW 3.2 SMBIOS 2.8/3.5 UEFI 2.8A
Software
SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Power Manager (SPM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! Plug-ins for 3rd Party Software IPMI Utilities
Hardware
Trusted Platform Module (TPM) 2.0
Voltage
+12V,+3.3V,+5V,+5V standby,5 -fan status,Chassis intrusion header,Chipset voltage,Memory Voltages,Monitors CPU voltages,Supports system management utility,System level control,VBAT
LED
CPU/system overheat LED UID/remote UID LED
Temperature
CPU thermal trip support Monitoring for CPU and chassis environment PECI Thermal monitor 2 (TM2) support
FAN
2x 4-pin fan headers (up to 2 fans) 5 fans with tachometer status monitoring Fan speed control Overheat LED indication
Other Features
ACPI power management Chassis intrusion detection Control of power-on for recovery from AC power loss M.2 NGFF connector Node manager support UID
PCI-Express (PCIe) Configuration
1 PCIe 5.0 x16 AIOM slot 12 PCIe 5.0 x8 via MCIO Connector slots
BIOS Type
AMI 64MB UEFI
BIOS Features
Plug and Play (PnP) ACPI 6.4 PCI FW 3.2 SMBIOS 2.8/3.5 UEFI 2.8A
Software
SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Power Manager (SPM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! Plug-ins for 3rd Party Software IPMI Utilities
Hardware
Trusted Platform Module (TPM) 2.0
Voltage
+12V,+3.3V,+5V,+5V standby,5 -fan status,Chassis intrusion header,Chipset voltage,Memory Voltages,Monitors CPU voltages,Supports system management utility,System level control,VBAT
LED
CPU/system overheat LED UID/remote UID LED
Temperature
CPU thermal trip support Monitoring for CPU and chassis environment PECI Thermal monitor 2 (TM2) support
FAN
2x 4-pin fan headers (up to 2 fans) 5 fans with tachometer status monitoring Fan speed control Overheat LED indication
Other Features
ACPI power management Chassis intrusion detection Control of power-on for recovery from AC power loss M.2 NGFF connector Node manager support UID
