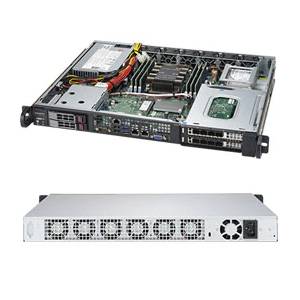

Supermicro SuperServer 1019P-FHN2T

Print

Print

SYS-1019P-FHN2T

SuperServer 1019P-FHN2T (Black)

Single Socket P (LGA 3647)2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake-SP)‡Support CPU TDP 70-205W

Up to 28 Cores

‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R). Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) for Cascade Lake-R CPUs above 165W TDP, please contact Supermicro Technical Support for additional information.

6 DIMM slotsUp to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM

2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Intel® C622 chipset

Intel® C622 controller; RAID 0, 1, 5, 10

Dual 10GBase-T LAN with Intel® X722 + X557

Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2500 BMC

4 SATA3 (6Gbps) ports

2 RJ45 10GBase-T LAN ports1 RJ45 dedicated IPMI LAN port

2 USB 3.0 ports (front)2 USB 2.0 ports (front)

1 VGA port

1 COM port (front)

2 SuperDOM (Disk on Module) ports with built-in power

AMI 32Mb SPI Flash ROM

Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SPM, SUM SuperDoctor® 5 Watch Dog

ACPI Power Management Power-on mode for AC power recovery

SuperServer 1019P-FHN2T (Black)

Single Socket P (LGA 3647)2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake-SP)‡Support CPU TDP 70-205W

Up to 28 Cores

‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R). Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F) for Cascade Lake-R CPUs above 165W TDP, please contact Supermicro Technical Support for additional information.

6 DIMM slotsUp to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM

2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Intel® C622 chipset

Intel® C622 controller; RAID 0, 1, 5, 10

Dual 10GBase-T LAN with Intel® X722 + X557

Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2500 BMC

4 SATA3 (6Gbps) ports

2 RJ45 10GBase-T LAN ports1 RJ45 dedicated IPMI LAN port

2 USB 3.0 ports (front)2 USB 2.0 ports (front)

1 VGA port

1 COM port (front)

2 SuperDOM (Disk on Module) ports with built-in power

AMI 32Mb SPI Flash ROM

Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SPM, SUM SuperDoctor® 5 Watch Dog

ACPI Power Management Power-on mode for AC power recovery

1U Rackmount

CSE-513BTS-505WBP

1.7" (43mm)

17.2" (437mm)

15" (381mm)

19.5" (W) x 6.9" (H) x 22.4" (D)

Gross Weight: 26 lbs (11.79 kg)Net Weight: 15 lbs (6.8 kg)

Black

Power On/Off buttonUID

Power LEDHard drive activity LEDNetwork activity LEDsSystem Information LED

2 PCI-E 3.0 x16 (FHFL) slots

2 Hot-swap 2.5" drive bays

2 Internal 2.5" SSD bays (optional)

M.2 Interface: PCI-E 3.0 x4 and SATAForm Factor: 2280, 22110Key: M-KeyDouble Height Connector

6x 40x28mm PWM fans

100-240V, 50-60Hz, 6.6A max

+3.3V: 12A +5V: 15A +5V standby: 3A +12V: 41A -12V: 0.2A

Platinum Certified

RoHS Compliant

Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)

1U Rackmount

CSE-513BTS-505WBP

1.7" (43mm)

17.2" (437mm)

15" (381mm)

19.5" (W) x 6.9" (H) x 22.4" (D)

Gross Weight: 26 lbs (11.79 kg)Net Weight: 15 lbs (6.8 kg)

Black

Power On/Off buttonUID

Power LEDHard drive activity LEDNetwork activity LEDsSystem Information LED

2 PCI-E 3.0 x16 (FHFL) slots

2 Hot-swap 2.5" drive bays

2 Internal 2.5" SSD bays (optional)

M.2 Interface: PCI-E 3.0 x4 and SATAForm Factor: 2280, 22110Key: M-KeyDouble Height Connector

6x 40x28mm PWM fans

100-240V, 50-60Hz, 6.6A max

+3.3V: 12A +5V: 15A +5V standby: 3A +12V: 41A -12V: 0.2A

Platinum Certified

RoHS Compliant

Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
