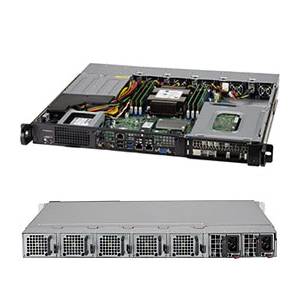

Supermicro SuperServer 1019P-FRN2T

Print

Print

SYS-1019P-FRN2T

SuperServer 1019P-FRN2T (Black)

Single Socket P (LGA 3647)2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡Support CPU TDP 70-205W*

Up to 28 Cores

* Certain high frequency optimized CPU are not supported, such as Intel Gold 6250 and 6256. Please contact Supermicro Technical Support for additional information.

‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

6 DIMM slotsUp to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM

2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro†† Cascade Lake only. Contact your Supermicro sales rep for more info.

Intel® C622 chipset

SATA3 (6Gbps)

Dual 10GBase-T LAN with Intel® X722 + X557

Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2500 BMC

2 SATA3 (6Gbps) ports

2 RJ45 10GBase-T LAN ports1 RJ45 dedicated IPMI LAN port

2 USB 3.0 ports2 USB 2.0 ports

1 VGA port

1 COM port

Ports default connect to hard drive bays

AMI 32Mb SPI Flash ROM

Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SPM, SUM SuperDoctor® 5 Watch Dog

ACPI / APM Power Management

Monitors for CPU Cores, Chipset Voltages, Memory.4+1 Phase-switching voltage regulator

Fans with tachometer monitoringStatus monitor for speed controlPulse Width Modulated (PWM) fan connectors

Monitoring for CPU and chassis environmentThermal Control for fan connectors

SuperServer 1019P-FRN2T (Black)

Single Socket P (LGA 3647)2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡Support CPU TDP 70-205W*

Up to 28 Cores

* Certain high frequency optimized CPU are not supported, such as Intel Gold 6250 and 6256. Please contact Supermicro Technical Support for additional information.

‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

6 DIMM slotsUp to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM

2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro†† Cascade Lake only. Contact your Supermicro sales rep for more info.

Intel® C622 chipset

SATA3 (6Gbps)

Dual 10GBase-T LAN with Intel® X722 + X557

Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2500 BMC

2 SATA3 (6Gbps) ports

2 RJ45 10GBase-T LAN ports1 RJ45 dedicated IPMI LAN port

2 USB 3.0 ports2 USB 2.0 ports

1 VGA port

1 COM port

Ports default connect to hard drive bays

AMI 32Mb SPI Flash ROM

Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SPM, SUM SuperDoctor® 5 Watch Dog

ACPI / APM Power Management

Monitors for CPU Cores, Chipset Voltages, Memory.4+1 Phase-switching voltage regulator

Fans with tachometer monitoringStatus monitor for speed controlPulse Width Modulated (PWM) fan connectors

Monitoring for CPU and chassis environmentThermal Control for fan connectors

1U Rackmount

CSE-515M-R804

1.7" (43mm)

17.2" (437mm)

15.7" (399mm)

8" (H) x 27" (W) x 24" (D)

Gross Weight: 29 lbs (13.15 kg)Net Weight: 18 lbs (8.16 kg)

Black

Power On/Off buttonSystem Reset button

Power LEDHard drive activity LEDNetwork activity LEDsSystem Information LEDInformation LED (temp., status)

2 PCI-E 3.0 x16 (FHFL) slots

1x M.2 Interface: PCI-E 3.0 x4 and SATAForm Factor: 2280, 22110Key: M-KeyDouble Height Connector

2 Fixed 2.5" Drive Bays

5x 40x56 Hot-Swappable Fan Trays

100-240 V, 50-60 Hz

N/A

Max.: 4 AmpMin.: 0 Amp

Max: 62.5A & Min: 0.5A (100Vac-127Vac)Max: 66.6A & Min: 0.5A (200Vac-240Vac)Max: 66.6A & Min: 0.5A (230-240Vdc)

N/A

N/A

Platinum Level Certified [ Test Report ]

RoHS Compliant

Operating Temperature: 10°C ~ 40°C (50°F ~ 104°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)

1U Rackmount

CSE-515M-R804

1.7" (43mm)

17.2" (437mm)

15.7" (399mm)

8" (H) x 27" (W) x 24" (D)

Gross Weight: 29 lbs (13.15 kg)Net Weight: 18 lbs (8.16 kg)

Black

Power On/Off buttonSystem Reset button

Power LEDHard drive activity LEDNetwork activity LEDsSystem Information LEDInformation LED (temp., status)

2 PCI-E 3.0 x16 (FHFL) slots

1x M.2 Interface: PCI-E 3.0 x4 and SATAForm Factor: 2280, 22110Key: M-KeyDouble Height Connector

2 Fixed 2.5" Drive Bays

5x 40x56 Hot-Swappable Fan Trays

100-240 V, 50-60 Hz

N/A

Max.: 4 AmpMin.: 0 Amp

Max: 62.5A & Min: 0.5A (100Vac-127Vac)Max: 66.6A & Min: 0.5A (200Vac-240Vac)Max: 66.6A & Min: 0.5A (230-240Vdc)

N/A

N/A

Platinum Level Certified [ Test Report ]

RoHS Compliant

Operating Temperature: 10°C ~ 40°C (50°F ~ 104°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
