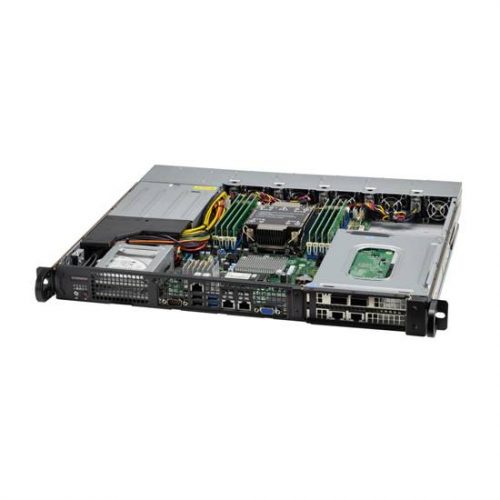

Supermicro SuperServer 110P-FRDN2T

ChassisForm Factor1UModelCSE-515M-R601 Dimensions and WeightHeight1.7" (43 mm)Width17.2" (437 mm)Depth15.7" (399 mm)Package8" (H) x 27" (W) x 24" (D)WeightGross Weight: 18 lbs (8.16 kg)Available ColorBlack Front PanelLEDFan Fail/System Over Heat LEDHDD activity LEDNetwork Activity LEDsPower status LEDButtonsPower On/Off buttonSystem Reset button Expansion Slots PCI-Express (PCIe) ConfigurationDefault2 PCIe 4.0 x16 FHFL slots View AOC Options Drive Bays / Storage Drive Bays ConfigurationDefault: Total 2 bays2 internal fixed 2.5" SATA drive bays View Drive OptionsM.21 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110)View M.2 Options System CoolingFansUp to 5 heavy duty fans with optimal fan speed controlAir Shroud1 Air Shroud Power Supply 1x 600W 1x 600W Redundant Typical 90%+ Level (92%) power supply Dimension (WxHxL)54.5 x 40 x 220 mm Input600W: -44--65Vdc +12VMax: 50A / Min: 0A Max: 50A 5V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger) Operating EnvironmentEnvironmental Spec.Operating Temperature: 0°C to 40°C (32°F to 104°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)

1x 600W 1x 600W Redundant Typical 90%+ Level (92%) power supply Dimension (WxHxL)54.5 x 40 x 220 mm Input600W: -44--65Vdc +12VMax: 50A / Min: 0A Max: 50A 5V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)

1x 600W 1x 600W Redundant Typical 90%+ Level (92%) power supply Dimension (WxHxL)54.5 x 40 x 220 mm Input600W: -44--65Vdc +12VMax: 50A / Min: 0A Max: 50A 5V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)

54.5 x 40 x 220 mm

600W: -44--65Vdc

Max: 50A / Min: 0A Max: 50A

Max: 3A / Min: 0A

Backplanes (gold finger)
