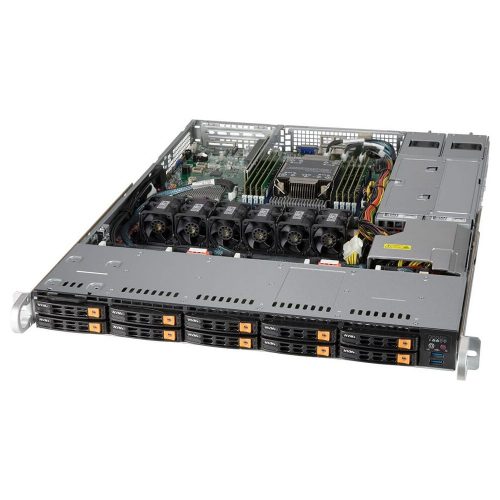

Supermicro SuperServer 110P-NTR10 Complete System Only

ChassisForm Factor1U RackmountModelCSE-116TS-R860CBP-N10 Dimensions and WeightHeight1.7" (43 mm)Width17.2" (437 mm)Depth23.5" (597 mm)Package8" (H) x 24" (W) x 32" (D)WeightGross Weight: 38 lbs (17.24 kg)Net Weight: 25 lbs (11.34 kg)Available ColorBlack Front PanelLEDDevice ActivityLAN 1 ActivityLAN 2 ActivityPower statusSystem informationButtonsPower On/Off UID button Expansion Slots PCI-Express (PCIe) ConfigurationDefault1 PCIe 4.0 x16 FHHL slot View AOC Options Drive Bays / Storage Drive Bays ConfigurationDefault: Total 10 bays10 front hot-swap 2.5" PCIe 4.0 NVMe drive bays View NVMe OptionsM.22 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280/22110; VROC required for RAID)View M.2 Options System CoolingFansUp to 6 Counter-rotating PWM 40x40x56mm Fan(s)Air Shroud1 Air Shroud Power Supply 2x 860W 2x 860W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vdc / 50-60Hz 860W: 200-240Vac / 50-60Hz +12VMax: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc)Max: 71.6A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Operating EnvironmentEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)

2x 860W 2x 860W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vdc / 50-60Hz 860W: 200-240Vac / 50-60Hz +12VMax: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc)Max: 71.6A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)

2x 860W 2x 860W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vdc / 50-60Hz 860W: 200-240Vac / 50-60Hz +12VMax: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc)Max: 71.6A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)

54.5 x 40.25 x 322 mm

800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vdc / 50-60Hz 860W: 200-240Vac / 50-60Hz

Max: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc)Max: 71.6A / Min: 0A (200Vac-240Vac)

Max: 4A / Min: 0A

Backplanes (gold finger)
