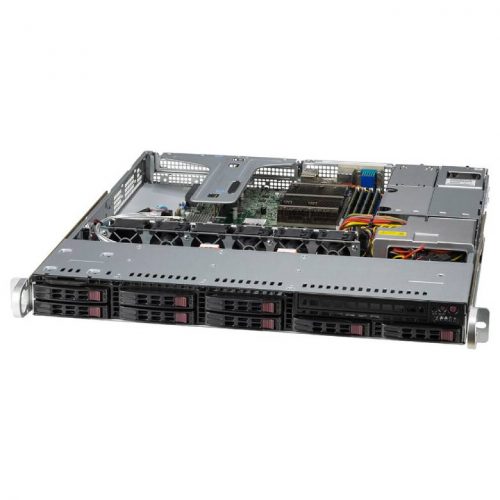

Supermicro SuperServer 110T-M

ChassisForm Factor1U RackmountModelCSE-113MFTS-407RCBP-1P Dimensions and WeightHeight1.7" (43 mm)Width17.2" (437 mm)Depth19.98" (507 mm)Package8.5" (H) x 24" (W) x 29.5" (D)WeightGross Weight: 30.4 lbs (13.8 kg)Net Weight: 17.6 lbs (8 kg)Available ColorBlack Front PanelLEDDevice ActivityLAN 1 ActivityLAN 2 ActivityPower statusSystem informationButtonsPower On/Off System ResetUID button Expansion Slots PCI-Express (PCIe) ConfigurationDefault1 PCIe 4.0 x8 FHHL slot 1 PCIe 4.0 x8 LP slot Option A1 PCIe 4.0 x16 FHHL slot View AOC Options Drive Bays / Storage Drive Bays ConfigurationDefault: Total 8 bays8 front hot-swap 2.5" SATA drive bays View Drive OptionsM.21 M.2 PCIe 3.0 x4 SATA slot (M-key 2280/22110)View M.2 Options System CoolingFansUp to 4 middle cooling PWM 40x40x28mm Fan(s)Up to 2 AOC cooling Fan(s) (optional)Air Shroud1 Air Shroud Power Supply 1x 400W 1x 400W Redundant Platinum Level (94%) power supply Dimension (WxHxL)54.5 x 40.25 x 220 mm Input400W: 100-240Vac 400W: 100-240Vac / 50-60Hz 400W: 200-240Vdc / 50-60Hz +12VMax: 33A / Min: 0A (100Vac-240Vac)Max: 33A / Min: 0.5A 5V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger) Operating EnvironmentEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)

1x 400W 1x 400W Redundant Platinum Level (94%) power supply Dimension (WxHxL)54.5 x 40.25 x 220 mm Input400W: 100-240Vac 400W: 100-240Vac / 50-60Hz 400W: 200-240Vdc / 50-60Hz +12VMax: 33A / Min: 0A (100Vac-240Vac)Max: 33A / Min: 0.5A 5V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)

1x 400W 1x 400W Redundant Platinum Level (94%) power supply Dimension (WxHxL)54.5 x 40.25 x 220 mm Input400W: 100-240Vac 400W: 100-240Vac / 50-60Hz 400W: 200-240Vdc / 50-60Hz +12VMax: 33A / Min: 0A (100Vac-240Vac)Max: 33A / Min: 0.5A 5V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)

54.5 x 40.25 x 220 mm

400W: 100-240Vac 400W: 100-240Vac / 50-60Hz 400W: 200-240Vdc / 50-60Hz

Max: 33A / Min: 0A (100Vac-240Vac)Max: 33A / Min: 0.5A

Max: 3A / Min: 0A

Backplanes (gold finger)
