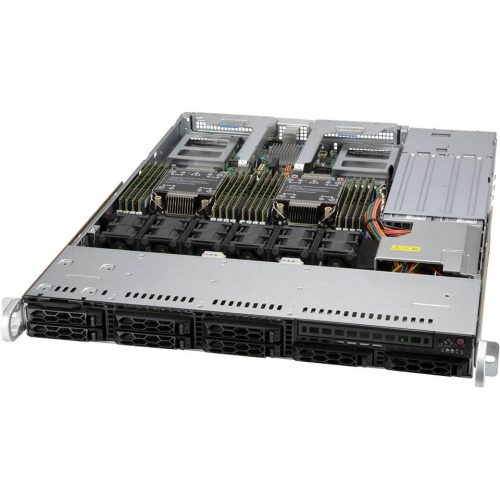

Supermicro SuperServer 120C-TR Complete System Only

ChassisForm Factor1U RackmountModelCSE-LB13TS-R860AWP Dimensions and WeightHeight1.7" (43 mm)Width17.2" (437 mm)Depth23.5" (597 mm)Package7.8" (H) x 23.8" (W) x 32.4" (D)WeightGross Weight: 40 lbs (18.1 kg)Net Weight: 25 lbs (11.3 kg)Available ColorBlack front & silver body Front PanelLEDDrive activityNetwork activityPower statusUniversal InformationButtonsPower On/OffReset buttonUnit Identifier (UID) Expansion Slots PCI-Express (PCIe) ConfigurationDefault2 PCIe 4.0 x16 FHHL slots Option A2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)View AOC Options Drive Bays / Storage Drive Bays ConfigurationDefault: Total 8 bays8 front hot-swap 2.5" SAS*/SATA drive bays (*SAS support may require additional storage controller and/or cables)View Drive OptionsM.22 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default); VROC required for RAID)View M.2 OptionsPeripheral Bays1 slim DVD bay (optional) System CoolingFansUp to 6x 4cm heavy duty fans with optimal fan speed controlAir Shroud2 Air Shrouds Power Supply 2x 860W 2x 860W Redundant (1 + 1) Platinum Level (94%) Hot-plug power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vdc / 50-60Hz 860W: 200-240Vac / 50-60Hz +12VMax: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc)Max: 71.6A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Operating EnvironmentROHSRoHS CompliantEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (Non-Condensing)Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

2x 860W 2x 860W Redundant (1 + 1) Platinum Level (94%) Hot-plug power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vdc / 50-60Hz 860W: 200-240Vac / 50-60Hz +12VMax: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc)Max: 71.6A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)

2x 860W 2x 860W Redundant (1 + 1) Platinum Level (94%) Hot-plug power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vdc / 50-60Hz 860W: 200-240Vac / 50-60Hz +12VMax: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc)Max: 71.6A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)

54.5 x 40.25 x 322 mm

800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vdc / 50-60Hz 860W: 200-240Vac / 50-60Hz

Max: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc)Max: 71.6A / Min: 0A (200Vac-240Vac)

Max: 4A / Min: 0A

Backplanes (gold finger)
