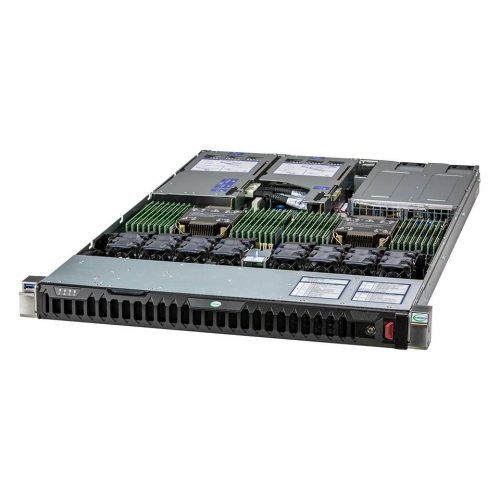

Supermicro SuperServer 120H-TNR Complete System Only

ChassisForm Factor1U RackmountModelCSE-HS119-R1K24P Dimensions and WeightHeight1.7" (43 mm)Width17.2" (437 mm)Depth29.4" (747 mm)Package8.1" (H) x 23.8" (W) x 40.6" (D)WeightGross Weight: 49 lbs (22.2 kg)Net Weight: 34 lbs (15.4 kg)Available ColorN/A Front PanelLEDHDD activityLAN1 activityPowerSystem informationButtonsPower On/Off UID button Expansion Slots PCI-Express (PCIe) ConfigurationDefault1 PCIe 4.0 x16 FHHL slot 2 PCIe 4.0 x16 FH/10.5"L slots 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)View AOC Options Drive Bays / Storage Drive Bays ConfigurationDefault: Total 8 bays8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 12 bays12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)View NVMe OptionsView Drive OptionsM.22 M.2 NVMe/SATA slots (M-key 2280/22110)View M.2 Options System CoolingFansUp to 8 counter-rotating 40x40x56mm Fan(s)Air Shroud2 Air Shrouds Power Supply 2x 1200W 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Operating EnvironmentEnvironmental Spec.Name: A2Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)

2x 1200W 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)

2x 1200W 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)

73.5 x 40 x 265 mm

800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)

Max: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)

Max: 2.1A / Min: 0A

Backplanes (gold finger)
