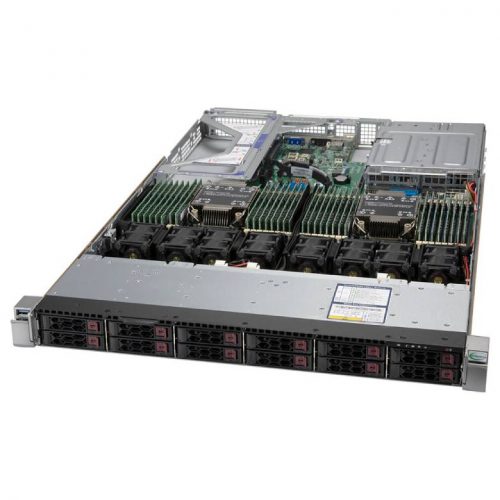

Supermicro SuperServer 120U-TNR Complete System Only

ChassisForm Factor1U RackmountModelCSE-119UH3TS-R1K22P-T Dimensions and WeightHeight1.7" (43 mm)Width17.2" (437 mm)Depth29.1" (739 mm)Package7.99" (H) x 23.81" (W) x 37.4" (D)WeightGross Weight: 41 lbs (18.6 kg)Net Weight: 26.5 lbs (12.2 kg)Available ColorBlack Front & Silver Body Front PanelLEDHDD activityLAN1 activityPower statusSystem information (overheat/UID) ButtonsPower On/Off UID button Expansion Slots PCI-Express (PCIe) ConfigurationDefault1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x16 LP slot 2 PCIe 4.0 x16 FH/10.5"L slots View AOC Options Drive Bays / Storage Drive Bays ConfigurationDefault: Total 12 bays12 front hot-swap 2.5" NVMe/SAS*/SATA drive bays (*SAS support may require additional storage controller and/or cables)View NVMe OptionsView Drive Options System CoolingFansUp to 8x 4cm heavy duty fans with optimal fan speed controlAir Shroud2 Air Shrouds Power Supply 1x 1200W 1x 1200W Redundant Titanium Level (96%) Hot-plug power supply Dimension (WxHxL)73.5 x 40 x 203 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vdc (For CCC Only)1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Operating EnvironmentEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)

1x 1200W 1x 1200W Redundant Titanium Level (96%) Hot-plug power supply Dimension (WxHxL)73.5 x 40 x 203 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vdc (For CCC Only)1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)

1x 1200W 1x 1200W Redundant Titanium Level (96%) Hot-plug power supply Dimension (WxHxL)73.5 x 40 x 203 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vdc (For CCC Only)1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)

73.5 x 40 x 203 mm

800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vdc (For CCC Only)1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)

Max: 66.7A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only)

Max: 2.1A / Min: 0A

Backplanes (gold finger)
