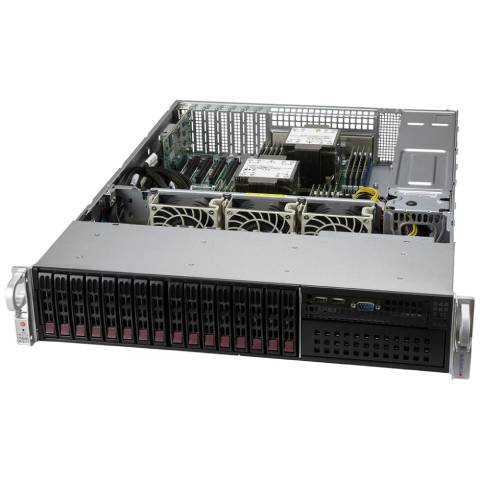

Supermicro SuperServer 220P-C9R

ChassisForm Factor2U RackmountModelCSE-213BTS-R1K23LPBP3-1 Dimensions and WeightHeight3.5" (89 mm)Width17.2" (437 mm)Depth24.8" (630 mm)Package11" (H) x 29" (W) x 38.7" (D)WeightGross Weight: 63 lbs (28.8 kg)Net Weight: 38 lbs (17.4 kg)Available ColorBlack Front PanelLEDHDD activityNetwork activityPower statusSystem information (overheat/UID) ButtonsPower On/Off System Reset Expansion Slots PCI-Express (PCIe) ConfigurationDefault4 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x8 LP slot View AOC Options Drive Bays / Storage Drive Bays ConfigurationDefault: Total 16 bays8 front hot-swap 2.5" SAS drive bays 4 front hot-swap 2.5" SATA drive bays 4 front hot-swap 2.5" NVMe*/SATA drive bays (*NVMe support may require additional storage controller and/or cables)View Drive OptionsPeripheral Bays1 5.25" DVD bay (optional) System CoolingFansUp to 3 heavy duty fans with optimal fan speed control Power Supply 1x 1200W 1x 1200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Operating EnvironmentROHSRoHS CompliantEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (Non-Condensing)Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

1x 1200W 1x 1200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)

1x 1200W 1x 1200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)

76 x 40 x 336 mm

1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)

Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vac-240Vac)

Max: 4A / Min: 0A

Backplanes (gold finger)
