Complete Technical Specifications
Specification

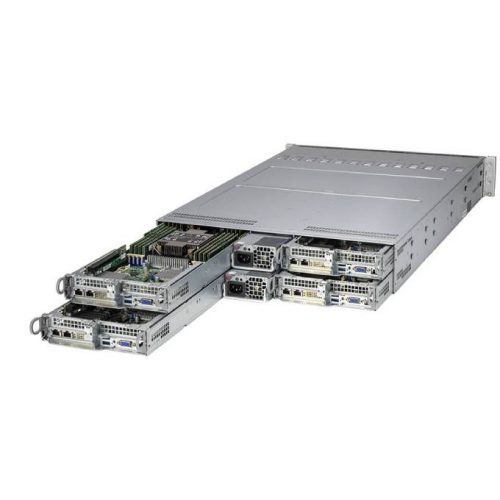

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
Specification
Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
Specification
Intel® C621A chipset
Specification
16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
Specification
2 PCI-E 4.0 x16 (LP), 1 PCI-E 4.0 x8 (w/ M.2 adapter installed for support 2 NVME up to 22×80 mm)
Specification
Intel® X710 Dual port 10GBase-T LAN onboard
Specification
6x 2.5″ hot-swap SATA/SAS drive bays
Specification
4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)
Specification
Two 2200W redundant power supplies with PMBus
Specification
ASPEED AST2600 BMC, 2 USB, VGA. RoT, 2 SATADOM ports
Specification
Broadcom® 3008 SAS (12Gbps); 6 slots per node; RAID 0, 1, 1E/10 support
