Complete Technical Specifications
Super X11SCZ-F
Print
Super X11SCZ-F
Print
Black
SYS-5019C-MHN2
SYS-5019C-MHN2

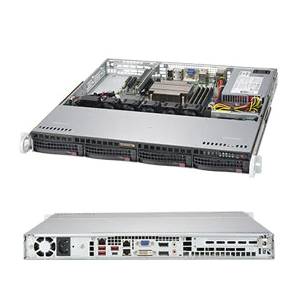

SuperServer 5019C-MHN2 (Black)
CPU
Single Socket H4 (LGA 1151),CPU TDP support up to 95W Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i9/i7/i5/i3 Processors, Intel® Celeron®, Intel® Pentium®
Memory Capacity
4 DIMM slots Up to 128GB Unbuffered ECC/non-ECC UDIMM Up to DDR4-2666MHz
Memory Type
2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes
32GB, 16GB, 8GB, 4GB
Note
128GB system memory capacity will be available in 2019 through a published BIOS update.
Chipset
Intel® C246 chipset
SATA
SATA3 (6Gbps) via Intel C246 controllerRAID 0, 1, 5, 10 support
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with Intel® I210-AT
Audio
ALC 888S HD Audio
Video
ASPEED AST2500 BMC
SATA
5 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
LAN
2 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.1 ports (rear)2 USB 2.0 ports (rear)
Video
VGA D-Sub Connector port, 1 DVI - I port, 2 DP (DisplayPort) ports3 independent displays
Serial Port / Header
1 COM port (header)
TPM
1 TPM 2.0 Header
BIOS Type
UEFI 256Mb
BIOS Features
ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0
Software
Intel® Node Manager IPMI 2.0 NMI SSM, SPM, SUM Watch Dog SuperDoctor® 5
SYS-5019C-MHN2
SuperServer 5019C-MHN2 (Black)
CPU
Single Socket H4 (LGA 1151),CPU TDP support up to 95W Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i9/i7/i5/i3 Processors, Intel® Celeron®, Intel® Pentium®
Memory Capacity
4 DIMM slots Up to 128GB Unbuffered ECC/non-ECC UDIMM Up to DDR4-2666MHz
Memory Type
2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes
32GB, 16GB, 8GB, 4GB
Note
128GB system memory capacity will be available in 2019 through a published BIOS update.
Chipset
Intel® C246 chipset
SATA
SATA3 (6Gbps) via Intel C246 controllerRAID 0, 1, 5, 10 support
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with Intel® I210-AT
Audio
ALC 888S HD Audio
Video
ASPEED AST2500 BMC
SATA
5 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
LAN
2 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.1 ports (rear)2 USB 2.0 ports (rear)
Video
VGA D-Sub Connector port, 1 DVI - I port, 2 DP (DisplayPort) ports3 independent displays
Serial Port / Header
1 COM port (header)
TPM
1 TPM 2.0 Header
BIOS Type
UEFI 256Mb
BIOS Features
ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0
Software
Intel® Node Manager IPMI 2.0 NMI SSM, SPM, SUM Watch Dog SuperDoctor® 5
Form Factor
1U Rackmount
Model
CSE-813MFTQC-350CB2
Height
1.7" (43mm)
Width
17.2" (437mm)
Depth
19.8" (483mm)
Package
8.5" (H) x 23.4" (W) x 29.7" (D)
Weight
Gross Weight: 32 lbs (14.52 kg)Net Weight: 18 lbs (8.16 kg)
Available Colors
Black
Buttons
Power On/Off buttonSystem Reset button
LEDs
Power LEDHard drive activity LEDNetwork activity LEDsSystem Information LED
PCI-Express
1 PCI-E 3.0 x16 slot
M.2
M.2 Interface:1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4M.2 Form Factor: 2280/22110M.2 Key: M-Key
Hot-swap
4 Hot-swap SAS/SATA 3.5" drive bays
Fans
5x 40x28mm PWM fans
AC Voltage
100-240 V, 50-60 Hz, 5.0-2.5 Amp
+5V
Max.: 15 AmpMin.: 0.2 Amp
+5V standby
Max.: 3 AmpMin.: 0 Amp
+12V
Max.: 29 AmpMin.: 0.5 Amp
-12V
Max.: 0.2 AmpMin.: 0 Amp
+3.3V
Max.: 12 AmpMin.: 0.2 Amp
Certification
Platinum Level Certified [ Test Report ]
CPU
Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature
Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
Form Factor
1U Rackmount
Model
CSE-813MFTQC-350CB2
Height
1.7" (43mm)
Width
17.2" (437mm)
Depth
19.8" (483mm)
Package
8.5" (H) x 23.4" (W) x 29.7" (D)
Weight
Gross Weight: 32 lbs (14.52 kg)Net Weight: 18 lbs (8.16 kg)
Available Colors
Black
Buttons
Power On/Off buttonSystem Reset button
LEDs
Power LEDHard drive activity LEDNetwork activity LEDsSystem Information LED
PCI-Express
1 PCI-E 3.0 x16 slot
M.2
M.2 Interface:1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4M.2 Form Factor: 2280/22110M.2 Key: M-Key
Hot-swap
4 Hot-swap SAS/SATA 3.5" drive bays
Fans
5x 40x28mm PWM fans
AC Voltage
100-240 V, 50-60 Hz, 5.0-2.5 Amp
+5V
Max.: 15 AmpMin.: 0.2 Amp
+5V standby
Max.: 3 AmpMin.: 0 Amp
+12V
Max.: 29 AmpMin.: 0.5 Amp
-12V
Max.: 0.2 AmpMin.: 0 Amp
+3.3V
Max.: 12 AmpMin.: 0.2 Amp
Certification
Platinum Level Certified [ Test Report ]
CPU
Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature
Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
