Complete Technical Specifications
A2SDi-2C-HLN4F
Print
A2SDi-2C-HLN4F
Print
Black
SYS-5029A-2TN4
SYS-5029A-2TN4

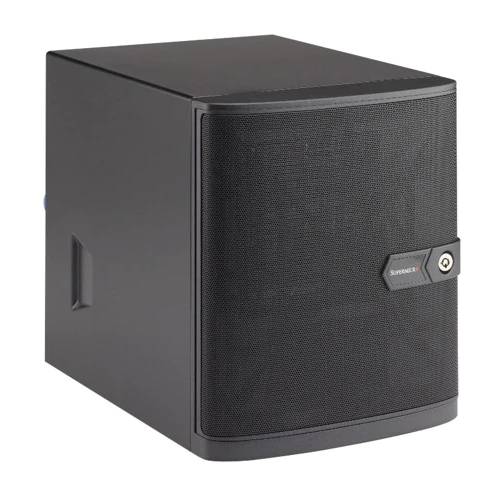

SuperServer 5029A-2TN4 (Black)
CPU
Intel® Atom® Processor C3338 FCBGA 1310 CPU TDP support 9W System-on-Chip
Memory Capacity
Up to 64GB Register DIMM RDIMM and DDR4-1866MHz Up to 32GB Unbuffered ECC/non-ECC UDIMM, DDR4-1866MHz, in 2 DIMM slots
Memory Type
2400/2133/1866/1600MHz DDR4 RDIMM and ECC/Non-ECC UDIMM (Operating speed up to 1866MHz)
DIMM Sizes
32GB (RDIMM only), 16GB, 8GB, 4GB
Memory Voltage
1.2 V
SATA
SoC controller for 6 SATA3 (6Gbps) ports
Network Controllers
Quad 1GbE LAN with Intel C3000 SoCSupports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video
Aspeed AST2400 BMC
SATA
6 SATA3 (6Gbps) ports
LAN
4 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port
USB
1 USB 3.0 (Type A) 4 USB 2.0 (2 front, 2 rear)
COM Port
1 COM port (1 header)
Video
1 VGA
TPM
1 TPM Header
Software
SuperDoctor® 5 Watch Dog
Power Configurations
ACPI Power Management ATX Power connector Control of power-on for recovery from AC power loss CPU thermal trip support for processor protection
SYS-5029A-2TN4
SuperServer 5029A-2TN4 (Black)
CPU
Intel® Atom® Processor C3338 FCBGA 1310 CPU TDP support 9W System-on-Chip
Memory Capacity
Up to 64GB Register DIMM RDIMM and DDR4-1866MHz Up to 32GB Unbuffered ECC/non-ECC UDIMM, DDR4-1866MHz, in 2 DIMM slots
Memory Type
2400/2133/1866/1600MHz DDR4 RDIMM and ECC/Non-ECC UDIMM (Operating speed up to 1866MHz)
DIMM Sizes
32GB (RDIMM only), 16GB, 8GB, 4GB
Memory Voltage
1.2 V
SATA
SoC controller for 6 SATA3 (6Gbps) ports
Network Controllers
Quad 1GbE LAN with Intel C3000 SoCSupports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video
Aspeed AST2400 BMC
SATA
6 SATA3 (6Gbps) ports
LAN
4 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port
USB
1 USB 3.0 (Type A) 4 USB 2.0 (2 front, 2 rear)
COM Port
1 COM port (1 header)
Video
1 VGA
TPM
1 TPM Header
Software
SuperDoctor® 5 Watch Dog
Power Configurations
ACPI Power Management ATX Power connector Control of power-on for recovery from AC power loss CPU thermal trip support for processor protection
Form Factor
Mini Tower
Model
CSE-721TQ-250B
Height
9.45" (240mm) / 13.78" (350mm) pkg.
Width
8.27" (210mm) / 12.4" (315mm) pkg.
Depth
11" (279mm) / 16.14" (410mm) pkg.
Weight
Net Weight: 15 lbs (6.8 kg)
Available Colors
Black
Buttons
Power On/Off buttonSystem Reset button
LEDs
Power LEDHard drive activity LEDNetwork activity LEDsSystem Information LED
PCI-E
1 PCI-E 3.0 x2 (in x4) open ended slot
HDD
4 Hot-swap 3.5" drive bays2 Internal 2.5" fixed drive bays
Peripheral
1 slim DVD-ROM drive bay (shared with 1 internal 2.5" fixed drive bay)
Fan
1x 12cm rear exhaust fan
AC Voltage
100 - 240V, 50 - 60Hz
+5V
Max:14 Amp; Min:0.5 Amp
+12V
Max:18 Amp; Min:1 Amp @100V-240V
-12V
Max: 0.3 Amp
+3.3V
Max: 12 Amp Min: 0.3Amp
5VSB
Max: 2.5 Amp
Certification
Bronze Certified
BIOS Type
AMI UEFI BIOS
BIOS Features
Plug and Play (PnP)DMI 2.3ACPI 5.0USB Keyboard supportSMBIOS 2.7.1UEFI
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
Form Factor
Mini Tower
Model
CSE-721TQ-250B
Height
9.45" (240mm) / 13.78" (350mm) pkg.
Width
8.27" (210mm) / 12.4" (315mm) pkg.
Depth
11" (279mm) / 16.14" (410mm) pkg.
Weight
Net Weight: 15 lbs (6.8 kg)
Available Colors
Black
Buttons
Power On/Off buttonSystem Reset button
LEDs
Power LEDHard drive activity LEDNetwork activity LEDsSystem Information LED
PCI-E
1 PCI-E 3.0 x2 (in x4) open ended slot
HDD
4 Hot-swap 3.5" drive bays2 Internal 2.5" fixed drive bays
Peripheral
1 slim DVD-ROM drive bay (shared with 1 internal 2.5" fixed drive bay)
Fan
1x 12cm rear exhaust fan
AC Voltage
100 - 240V, 50 - 60Hz
+5V
Max:14 Amp; Min:0.5 Amp
+12V
Max:18 Amp; Min:1 Amp @100V-240V
-12V
Max: 0.3 Amp
+3.3V
Max: 12 Amp Min: 0.3Amp
5VSB
Max: 2.5 Amp
Certification
Bronze Certified
BIOS Type
AMI UEFI BIOS
BIOS Features
Plug and Play (PnP)DMI 2.3ACPI 5.0USB Keyboard supportSMBIOS 2.7.1UEFI
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
