Complete Technical Specifications
A2SAV
Print
A2SAV
Print
Black
SYS-5029AP-TN2
SYS-5029AP-TN2

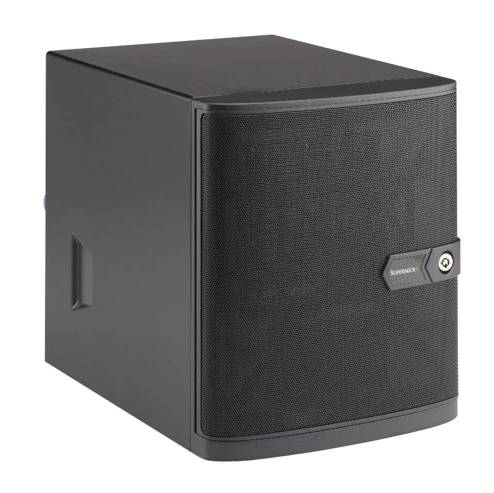

SuperServer 5029AP-TN2 (Black)
CPU
Intel® Atom™ Processor E3940 FCBGA 1296 System-on-Chip
Memory Capacity
1x 204-pin DDR3 SO-DIMM socket
Memory Type
1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3, 204-pin gold-plated DIMMs
DIMM Sizes
8GB, 4GB, 2GB
Memory Voltage
1.5 V, 1.35 V
SATA
SoC controller for 2 SATA3 (6Gbps) ports Marvel 88SE9230 controller for 4 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
Network Controllers
Dual GbE LAN with Intel i210-AT controllerVirtual Machine Device Queues reduce I/O overheadSupports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video
Intel HD Graphics
SATA
6 SATA3 (6Gbps) ports
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
2 USB 3.0 (2 rear) 4 USB 2.0 (2 rear, 2 front) 1 USB 2.0 (Type A)
COM Port
2 serial ports
DOM
1 SATA DOM (Disk on Module) power connector
Video
1 VGA, 1 DP (Display Port), 1 HDMI, 1 eDP (Embedded Display Port), 1 Intel HD Graphics
TPM
1 TPM 1.2 onboard Header
Software
SuperDoctor® 5 Watch Dog
Power Configurations
ACPI Power Management ATX Power connector Control of power-on for recovery from AC power loss CPU thermal trip support for processor protection
SYS-5029AP-TN2
SuperServer 5029AP-TN2 (Black)
CPU
Intel® Atom™ Processor E3940 FCBGA 1296 System-on-Chip
Memory Capacity
1x 204-pin DDR3 SO-DIMM socket
Memory Type
1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3, 204-pin gold-plated DIMMs
DIMM Sizes
8GB, 4GB, 2GB
Memory Voltage
1.5 V, 1.35 V
SATA
SoC controller for 2 SATA3 (6Gbps) ports Marvel 88SE9230 controller for 4 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
Network Controllers
Dual GbE LAN with Intel i210-AT controllerVirtual Machine Device Queues reduce I/O overheadSupports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video
Intel HD Graphics
SATA
6 SATA3 (6Gbps) ports
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
2 USB 3.0 (2 rear) 4 USB 2.0 (2 rear, 2 front) 1 USB 2.0 (Type A)
COM Port
2 serial ports
DOM
1 SATA DOM (Disk on Module) power connector
Video
1 VGA, 1 DP (Display Port), 1 HDMI, 1 eDP (Embedded Display Port), 1 Intel HD Graphics
TPM
1 TPM 1.2 onboard Header
Software
SuperDoctor® 5 Watch Dog
Power Configurations
ACPI Power Management ATX Power connector Control of power-on for recovery from AC power loss CPU thermal trip support for processor protection
Form Factor
Mini Tower
Model
CSE-721TQ-250B
Height
9.45" (240mm) / 13.78" (350mm) pkg.
Width
8.27" (210mm) / 12.4" (315mm) pkg.
Depth
11" (279mm) / 16.14" (410mm) pkg.
Weight
Net Weight: 15 lbs (6.8 kg)
Available Colors
Black
Buttons
Power On/Off buttonSystem Reset button
LEDs
Power LEDHard drive activity LEDNetwork activity LEDsSystem Information LED
PCI-E
1 PCI-E 2.0 x2 (in x8) slot 1 M.2 PCIe 2.0 x2, M Key 2242/80 1 Mini-PCIe with mSATA
HDD
4 Hot-swap 3.5" drive bays2 Internal 2.5" fixed drive bays
Peripheral
1 slim DVD-ROM drive bay (shared with 1 internal 2.5" fixed drive bay)
AC Voltage
100 - 240V, 50 - 60Hz
+5V
Max:14 Amp; Min:0.5 Amp
+12V
Max:18 Amp; Min:1 Amp @100V-240V
-12V
Max: 0.3 Amp
+3.3V
Max: 12 Amp Min: 0.3Amp
5VSB
Max: 2.5 Amp
Certification
Bronze Certified
BIOS Type
64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features
Plug and Play (PnP)DMI 2.3ACPI 5.0USB Keyboard supportSMBIOS 2.7.1UEFI
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
Form Factor
Mini Tower
Model
CSE-721TQ-250B
Height
9.45" (240mm) / 13.78" (350mm) pkg.
Width
8.27" (210mm) / 12.4" (315mm) pkg.
Depth
11" (279mm) / 16.14" (410mm) pkg.
Weight
Net Weight: 15 lbs (6.8 kg)
Available Colors
Black
Buttons
Power On/Off buttonSystem Reset button
LEDs
Power LEDHard drive activity LEDNetwork activity LEDsSystem Information LED
PCI-E
1 PCI-E 2.0 x2 (in x8) slot 1 M.2 PCIe 2.0 x2, M Key 2242/80 1 Mini-PCIe with mSATA
HDD
4 Hot-swap 3.5" drive bays2 Internal 2.5" fixed drive bays
Peripheral
1 slim DVD-ROM drive bay (shared with 1 internal 2.5" fixed drive bay)
AC Voltage
100 - 240V, 50 - 60Hz
+5V
Max:14 Amp; Min:0.5 Amp
+12V
Max:18 Amp; Min:1 Amp @100V-240V
-12V
Max: 0.3 Amp
+3.3V
Max: 12 Amp Min: 0.3Amp
5VSB
Max: 2.5 Amp
Certification
Bronze Certified
BIOS Type
64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features
Plug and Play (PnP)DMI 2.3ACPI 5.0USB Keyboard supportSMBIOS 2.7.1UEFI
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
