Complete Technical Specifications
X11SCV-Q
Print
X11SCV-Q
Print
Black
SYS-5029C-TN2
SYS-5029C-TN2

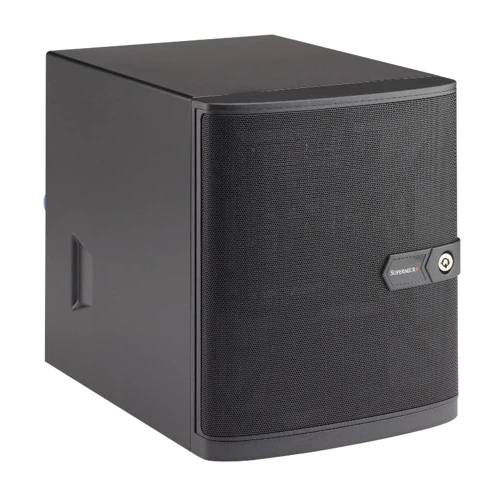

SuperServer 5029C-TN2 (Black)
CPU
Single Socket H4 (LGA 1151) supports: 9th/8th Gen Intel® Core™ i9/i7/i5/i3 / Pentium® / Celeron® processor CPU TDP support Up to 65W TDP
Memory Capacity
Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz 2 DIMM slots
Memory Type
DDR4-2666MHz Unbuffered non-ECC SO-DIMM
DIMM Sizes
32GB, 16GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors Detects double-bit errors (using ECC memory)
Chipset
Intel® Q370 chipset
SATA
Q370 controller for 5 SATA3 ports; RAID 0, 1, 5, 10
Network Controllers
Single LAN with Intel® Ethernet Controller I210-ATSingle LAN with Intel® PHY I219LM LAN controller
Audio
ALC 888S HD Audio
Graphics
3 Independent Displays
SATA
5 SATA3 (6Gbps) ports via PCH
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
4 USB 3.1 (2 type A and 2 type C in rear)
Display
1 DVI - D port1 HDMI port1 DP (Display Port)1 eDP (Embedded Display Port)3 Independent Displays2 COM ports support RS-232/422/485
Audio
HD Audio (Mic In / Line Out)
TPM
1 TPM Header & Chip
Software
SuperDoctor® 5 Watch Dog Non-maskable Interrupt (NMI) Chassis intrusion detection
SYS-5029C-TN2
SuperServer 5029C-TN2 (Black)
CPU
Single Socket H4 (LGA 1151) supports: 9th/8th Gen Intel® Core™ i9/i7/i5/i3 / Pentium® / Celeron® processor CPU TDP support Up to 65W TDP
Memory Capacity
Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz 2 DIMM slots
Memory Type
DDR4-2666MHz Unbuffered non-ECC SO-DIMM
DIMM Sizes
32GB, 16GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors Detects double-bit errors (using ECC memory)
Chipset
Intel® Q370 chipset
SATA
Q370 controller for 5 SATA3 ports; RAID 0, 1, 5, 10
Network Controllers
Single LAN with Intel® Ethernet Controller I210-ATSingle LAN with Intel® PHY I219LM LAN controller
Audio
ALC 888S HD Audio
Graphics
3 Independent Displays
SATA
5 SATA3 (6Gbps) ports via PCH
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
4 USB 3.1 (2 type A and 2 type C in rear)
Display
1 DVI - D port1 HDMI port1 DP (Display Port)1 eDP (Embedded Display Port)3 Independent Displays2 COM ports support RS-232/422/485
Audio
HD Audio (Mic In / Line Out)
TPM
1 TPM Header & Chip
Software
SuperDoctor® 5 Watch Dog Non-maskable Interrupt (NMI) Chassis intrusion detection
Form Factor
Mini Tower
Model
CSE-721TQ-350B
Height
9.45" (240mm)
Width
8.27" (210mm)
Depth
11" (279mm)
Weight
Gross Weight: 15 lbs (6.8 kg)
Available Colors
Black
Buttons
Power On/Off buttonSystem Reset button
LEDs
Power LEDHard drive activity LEDNetwork activity LEDsSystem Information LED
Ports
2 USB 3.1 Gen1 ports
PCI-E
1 PCI-E 3.0 x16 (Low-profile)
M.2
M.2 M key: PCI-E 3.0 x4, NVMe support 2242/2280 lengthM.2 E Key: PCI-E 3.0 x1, support 2230 length
HDD
4 Hot-swap 3.5" drive bays2 internal 2.5" drive bays
Peripheral
1 slim DVD-ROM bay
AC Voltage
100 - 240V, 50 - 60Hz
+5V
Max:15 Amp; Min:0.2 Amp
+12V
Max:28 Amp; Min:0.1 Amp @100V-240V
-12V
Max: 0.3 Amp Min: 0.05 Amp
+3.3V
Max: 10 Amp Min: 0.1 Amp
5VSB
Max: 2 Amp Min: 0.05 Amp
Certification
Gold Certified
CPU
Monitors for CPU Cores, +1.8V, +3.3V, +5V, +-12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 3+0 CPU switch phase voltage regulator CPU thermal trip support
FAN
Low noise fan speedcontrol
Temperature
Monitoring for CPU and chassis environment Thermal Control for 4x 4-pin fan connectors Platform Environmental Control Interface (PECI)
BIOS Type
UEFI 256Mb
BIOS Features
ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup PCI F/W 3.0
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 20% to 95% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
Form Factor
Mini Tower
Model
CSE-721TQ-350B
Height
9.45" (240mm)
Width
8.27" (210mm)
Depth
11" (279mm)
Weight
Gross Weight: 15 lbs (6.8 kg)
Available Colors
Black
Buttons
Power On/Off buttonSystem Reset button
LEDs
Power LEDHard drive activity LEDNetwork activity LEDsSystem Information LED
Ports
2 USB 3.1 Gen1 ports
PCI-E
1 PCI-E 3.0 x16 (Low-profile)
M.2
M.2 M key: PCI-E 3.0 x4, NVMe support 2242/2280 lengthM.2 E Key: PCI-E 3.0 x1, support 2230 length
HDD
4 Hot-swap 3.5" drive bays2 internal 2.5" drive bays
Peripheral
1 slim DVD-ROM bay
AC Voltage
100 - 240V, 50 - 60Hz
+5V
Max:15 Amp; Min:0.2 Amp
+12V
Max:28 Amp; Min:0.1 Amp @100V-240V
-12V
Max: 0.3 Amp Min: 0.05 Amp
+3.3V
Max: 10 Amp Min: 0.1 Amp
5VSB
Max: 2 Amp Min: 0.05 Amp
Certification
Gold Certified
CPU
Monitors for CPU Cores, +1.8V, +3.3V, +5V, +-12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 3+0 CPU switch phase voltage regulator CPU thermal trip support
FAN
Low noise fan speedcontrol
Temperature
Monitoring for CPU and chassis environment Thermal Control for 4x 4-pin fan connectors Platform Environmental Control Interface (PECI)
BIOS Type
UEFI 256Mb
BIOS Features
ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup PCI F/W 3.0
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 20% to 95% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
