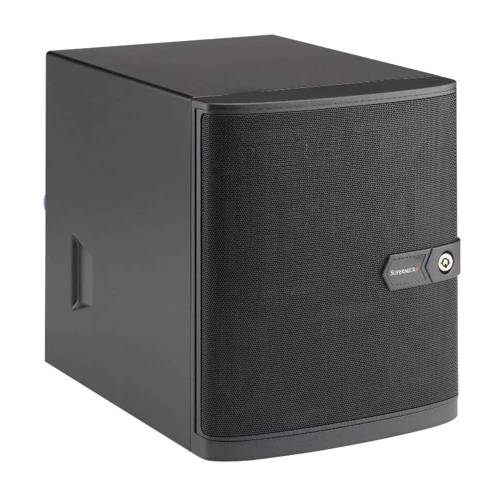

Supermicro SuperServer 5029S-TN2

Print

Print

SYS-5029S-TN2

SuperServer 5029S-TN2 (Black)

Intel® 7th/6th Gen Core i7/i5/i3 series, Intel® Celeron®, Intel® Pentium® processors; CPU TDP support up to 65W TDPSingle Socket H4 (LGA 1151)

BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors

2x 260-pin DDR4 SODIMM slotsUp to 32GB DDR4 Non-ECC UDIMM

2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 260-pin gold-plated SODIMMs

16GB, 8GB, 4GB

1.2 V

Intel® Q170 Express Chipset

Onboard controller for 4x SATA3 (6Gbps) ports with RAID 0, 1, 5, 10

Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN ControllersVirtual Machine Device Queues reduce I/O overheadSupports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

RealTek ALC 888S High Definition Audio

5 SATA 3.0 ports (6Gbps) including 1 mSATA Raid 0, 1, 5, 10

2 RJ45 Gigabit Ethernet LAN ports

4 USB 3.0 ports (rear) 2 USB 2.0 ports (front) 1 USB 2.0 Type A

2 port jack

1 HDMI, 1 DP (Display Port), 1 DVI-I, Intel® HD Graphics, 3 Independent Displays

2 COM ports (2 rear)

SATA DOM (Disk on Module) power connector support

1 TPM 20-pin Header

SuperDoctor® 5 Watch Dog AMT NMI vPro

SuperServer 5029S-TN2 (Black)

Intel® 7th/6th Gen Core i7/i5/i3 series, Intel® Celeron®, Intel® Pentium® processors; CPU TDP support up to 65W TDPSingle Socket H4 (LGA 1151)

BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors

2x 260-pin DDR4 SODIMM slotsUp to 32GB DDR4 Non-ECC UDIMM

2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 260-pin gold-plated SODIMMs

16GB, 8GB, 4GB

1.2 V

Intel® Q170 Express Chipset

Onboard controller for 4x SATA3 (6Gbps) ports with RAID 0, 1, 5, 10

Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN ControllersVirtual Machine Device Queues reduce I/O overheadSupports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

RealTek ALC 888S High Definition Audio

5 SATA 3.0 ports (6Gbps) including 1 mSATA Raid 0, 1, 5, 10

2 RJ45 Gigabit Ethernet LAN ports

4 USB 3.0 ports (rear) 2 USB 2.0 ports (front) 1 USB 2.0 Type A

2 port jack

1 HDMI, 1 DP (Display Port), 1 DVI-I, Intel® HD Graphics, 3 Independent Displays

2 COM ports (2 rear)

SATA DOM (Disk on Module) power connector support

1 TPM 20-pin Header

SuperDoctor® 5 Watch Dog AMT NMI vPro

Mini Tower

CSE-721TQ-350B

9.45" (240mm)

8.27" (210mm)

11" (279mm)

Gross Weight: 15 lbs (6.8 kg)

Black

Power On/Off buttonSystem Reset button

Power LEDHard drive activity LEDNetwork activity LEDsSystem Information LED

1 PCI-E 3.0 x16 slot 1 Mini-PCIe with mSATA support

M key 2242/2280 PCI-E 3.0 x4

4 Hot-swap 3.5" drive bays2 internal 2.5" drive bays

1 slim DVD-ROM drive bay(shared with 1 internal 2.5" drive bay)

100 - 240V, 50 - 60Hz

Max:15 Amp; Min:0.2 Amp

Max:28 Amp; Min:0.1 Amp @100V-240V

Max: 0.3 Amp Min: 0.05 Amp

Max: 10 Amp Min: 0.1 Amp

Max: 2 Amp Min: 0.05 Amp

Gold Certified

128Mb SPI Flash EEPROM with AMI UEFI BIOS

Plug and Play (PnP) DMI 2.3 PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 3.0 UEFI 2.3.1 RTC (Real Time Clock) Wakeup

RoHS Compliant

Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)

Mini Tower

CSE-721TQ-350B

9.45" (240mm)

8.27" (210mm)

11" (279mm)

Gross Weight: 15 lbs (6.8 kg)

Black

Power On/Off buttonSystem Reset button

Power LEDHard drive activity LEDNetwork activity LEDsSystem Information LED

1 PCI-E 3.0 x16 slot 1 Mini-PCIe with mSATA support

M key 2242/2280 PCI-E 3.0 x4

4 Hot-swap 3.5" drive bays2 internal 2.5" drive bays

1 slim DVD-ROM drive bay(shared with 1 internal 2.5" drive bay)

100 - 240V, 50 - 60Hz

Max:15 Amp; Min:0.2 Amp

Max:28 Amp; Min:0.1 Amp @100V-240V

Max: 0.3 Amp Min: 0.05 Amp

Max: 10 Amp Min: 0.1 Amp

Max: 2 Amp Min: 0.05 Amp

Gold Certified

128Mb SPI Flash EEPROM with AMI UEFI BIOS

Plug and Play (PnP) DMI 2.3 PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 3.0 UEFI 2.3.1 RTC (Real Time Clock) Wakeup

RoHS Compliant

Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
