Complete Technical Specifications
Dimension (WxHxL)

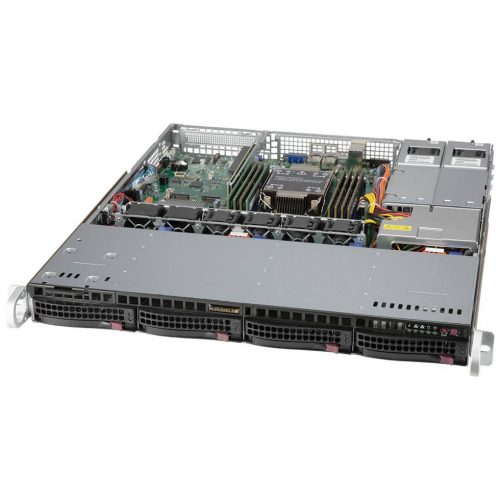

ChassisForm Factor1U RackmountModelCSE-813MF2TS-R407CBP2 Dimensions and WeightHeight1.7" (43 mm)Width17.2" (437 mm)Depth19.98" (507 mm)Package8.5" (H) x 24" (W) x 29.5" (D)WeightGross Weight: 30.4 lbs (13.8 kg)Net Weight: 17.6 lbs (8 kg)Available ColorBlack Front PanelLEDDevice ActivityLAN 1 ActivityLAN 2 ActivityPower statusSystem informationButtonsPower On/Off System Reset Expansion Slots PCI-Express (PCIe) ConfigurationDefault1 PCIe 4.0 x16 FHHL slot View AOC Options Drive Bays / Storage Drive Bays ConfigurationDefault: Total 4 bays4 front hot-swap 3.5" PCIe 4.0 NVMe*/SAS*/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables)View NVMe OptionsView Drive OptionsM.22 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280/22110)View M.2 OptionsPeripheral Bays2 2.5" bays (optional) System CoolingFansUp to 4 middle cooling PWM 40x40x28mm Fan(s)Up to 2 AOC cooling Fan(s) (optional)Air Shroud1 Air Shroud Power Supply 2x 400W 2x 400W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 220 mm Input400W: 100-240Vac 400W: 100-240Vac / 50-60Hz 400W: 200-240Vdc / 50-60Hz +12VMax: 33A / Min: 0A (100Vac-240Vac)Max: 33A / Min: 0.5A 5V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger) Operating EnvironmentEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimension (WxHxL)
2x 400W 2x 400W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 220 mm Input400W: 100-240Vac 400W: 100-240Vac / 50-60Hz 400W: 200-240Vdc / 50-60Hz +12VMax: 33A / Min: 0A (100Vac-240Vac)Max: 33A / Min: 0.5A 5V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
2x 400W 2x 400W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 220 mm Input400W: 100-240Vac 400W: 100-240Vac / 50-60Hz 400W: 200-240Vdc / 50-60Hz +12VMax: 33A / Min: 0A (100Vac-240Vac)Max: 33A / Min: 0.5A 5V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
54.5 x 40.25 x 220 mm
Input
400W: 100-240Vac 400W: 100-240Vac / 50-60Hz 400W: 200-240Vdc / 50-60Hz
+12V
Max: 33A / Min: 0A (100Vac-240Vac)Max: 33A / Min: 0.5A
5V SB
Max: 3A / Min: 0A
Output Type
Backplanes (gold finger)
