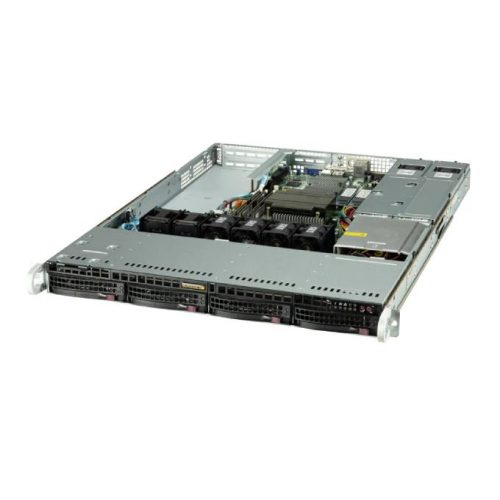

Supermicro SuperServer 510T-WTR

ChassisForm Factor1U RackmountModelCSE-815TS-R504WBP7 Dimensions and WeightHeight1.7" (43 mm)Width17.2" (437 mm)Depth25.6" (650 mm)Package8.5" (H) x 23.5" (W) x 33.7" (D)WeightGross Weight: 48 lbs (21.77 kg)Net Weight: 24 lbs (10.89 kg)Available ColorBlack Front PanelLEDDevice ActivityLAN 1 ActivityLAN 2 ActivityPower statusSystem informationButtonsPower On/Off System ResetUID button Expansion Slots PCI-Express (PCIe) ConfigurationDefault2 PCIe 4.0 x8 FHFL slots 1 PCIe 3.0 x4 (in x8) LP slot Option A1 PCIe 4.0 x16 FHFL slot 1 PCIe 3.0 x4 (in x8) LP slot View AOC Options Drive Bays / Storage Drive Bays ConfigurationDefault: Total 4 bays4 front hot-swap 3.5" SAS*/SATA drive bays (*SAS support may require additional storage controller and/or cables)View Drive OptionsM.22 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)View M.2 OptionsPeripheral Bays2 2.5" bays System CoolingFansUp to 4 counter-rotation PWM 40x40x56mm Fan(s)Up to 2 AOC cooling Fan(s) (optional)Air Shroud1 Air Shroud Power Supply 2x 500W 2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 320 mm Input500W: 100-240Vac / 50-60Hz +12VMax: 42A / Min: 0.5A (100Vac-240Vac)Max: 42A / Min: 0.5A 5V SBMax: 3A / Min: 0A Max: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Platinum Level [ Test Report ] Operating EnvironmentEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)

2x 500W 2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 320 mm Input500W: 100-240Vac / 50-60Hz +12VMax: 42A / Min: 0.5A (100Vac-240Vac)Max: 42A / Min: 0.5A 5V SBMax: 3A / Min: 0A Max: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Platinum Level [ Test Report ]

2x 500W 2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 320 mm Input500W: 100-240Vac / 50-60Hz +12VMax: 42A / Min: 0.5A (100Vac-240Vac)Max: 42A / Min: 0.5A 5V SBMax: 3A / Min: 0A Max: 4A / Min: 0A Output TypeBackplanes (gold finger) Certification Platinum Level [ Test Report ]

54.5 x 40.25 x 320 mm

500W: 100-240Vac / 50-60Hz

Max: 42A / Min: 0.5A (100Vac-240Vac)Max: 42A / Min: 0.5A

Max: 3A / Min: 0A Max: 4A / Min: 0A

Backplanes (gold finger)

Platinum Level [ Test Report ]
