Complete Technical Specifications
Dimension (WxHxL)

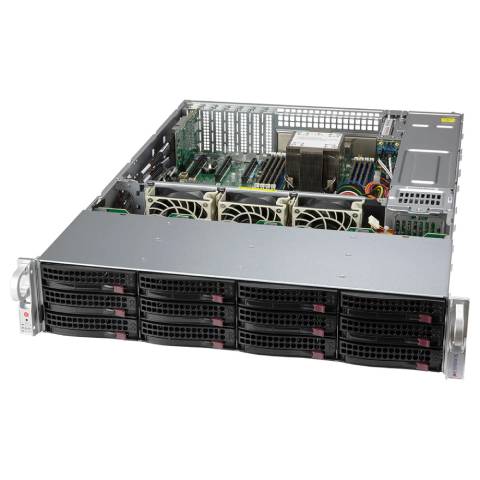

ChassisForm Factor2U RackmountModelCSE-826BTS-R802LPB Dimensions and WeightHeight3.5" (89 mm)Width17.2" (437 mm)Depth25.6" (650 mm)Package11.5" (H) x 26.5" (W) x 34" (D)WeightGross Weight: 58 lbs (26.3 kg)Net Weight: 34 lbs (15.4 kg)Available ColorBlack Front PanelLEDDevice ActivityLAN 1 ActivityLAN 2 ActivityPower Failure LEDPower statusSystem informationButtonsPower On/Off System Reset Expansion Slots PCI-Express (PCIe) ConfigurationDefault2 PCIe 4.0 x8 LP slots 2 PCIe 4.0 x16 LP slots View AOC Options Drive Bays / Storage Drive Bays ConfigurationDefault: Total 12 bays12 front hot-swap 3.5" SAS/SATA drive bays Option A: Total 14 bays12 front hot-swap 3.5" SAS/SATA drive bays 2 rear hot-swap 2.5" PCIe 4.0 NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)View NVMe OptionsView Drive OptionsM.21 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110)View M.2 Options System CoolingFansUp to 3 Heavy Duty PWM 80x80x38mm Fan(s)Air Shroud1 Air Shroud Power Supply 2x 800W 2x 800W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input800W: 100-240Vac / 50-60Hz 800W: 200-240Vdc / 50-60Hz +12VMax: 66A / Min: 0A (100Vac-240Vac)Max: 66A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Operating EnvironmentEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimension (WxHxL)
2x 800W 2x 800W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input800W: 100-240Vac / 50-60Hz 800W: 200-240Vdc / 50-60Hz +12VMax: 66A / Min: 0A (100Vac-240Vac)Max: 66A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
2x 800W 2x 800W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input800W: 100-240Vac / 50-60Hz 800W: 200-240Vdc / 50-60Hz +12VMax: 66A / Min: 0A (100Vac-240Vac)Max: 66A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
76 x 40 x 336 mm
Input
800W: 100-240Vac / 50-60Hz 800W: 200-240Vdc / 50-60Hz
+12V
Max: 66A / Min: 0A (100Vac-240Vac)Max: 66A / Min: 0A (200Vdc-240Vdc)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
