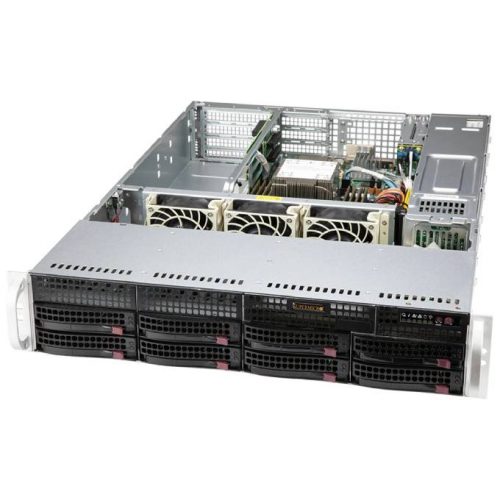

Supermicro SuperServer 520P-WTR

ChassisForm Factor2U RackmountModelCSE-825BTS-R609WP Dimensions and WeightHeight3.5" (89 mm)Width17.2" (437 mm)Depth25.5" (647 mm)Package11" (H) x 26.5" (W) x 34" (D)WeightGross Weight: 59 lbs (26.76 kg)Net Weight: 34 lbs (15.42 kg)Available ColorBlack Front PanelLEDDevice ActivityLAN 1 ActivityLAN 2 ActivityPower Failure LEDPower statusSystem informationButtonsPower On/Off System Reset Expansion Slots PCI-Express (PCIe) ConfigurationDefault2 PCIe 4.0 x16 FHFL slots 2 PCIe 4.0 x8 LP slots Option A*1 PCIe 4.0 x16 FHFL double-width slot 2 PCIe 4.0 x8 FHFL slots 2 PCIe 4.0 x8 LP slots Option B*4 PCIe 4.0 x8 FHFL slots 2 PCIe 4.0 x8 LP slots (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)...View AOC Options Drive Bays / Storage Drive Bays ConfigurationDefault: Total 8 bays8 front hot-swap 3.5" SAS*/SATA drive bays Option A: Total 10 bays8 front hot-swap 3.5" SAS*/SATA drive bays 2 rear hot-swap 2.5" PCIe 4.0 NVMe*/SAS*/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)View NVMe OptionsView Drive OptionsM.21 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110; VROC required for RAID)View M.2 Options System CoolingFansUp to 3 heavy duty PWM 80x80x38mm Fan(s)Air Shroud1 Air Shroud Power Supply 2x 650W 2x 650W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input600W: 100-127Vac / 50-60Hz 650W: 200-240Vac 650W: 200-240Vac / 50-60Hz 650W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 50A / Min: 0A (100Vac-127Vac)Max: 54.16A / Min: 0A (200Vac-240Vac)Max: 54.16A / Min: 0A (200Vdc-240Vdc) (for CCC only)Max: 54A / Min: 0.5A 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Operating EnvironmentEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)

2x 650W 2x 650W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input600W: 100-127Vac / 50-60Hz 650W: 200-240Vac 650W: 200-240Vac / 50-60Hz 650W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 50A / Min: 0A (100Vac-127Vac)Max: 54.16A / Min: 0A (200Vac-240Vac)Max: 54.16A / Min: 0A (200Vdc-240Vdc) (for CCC only)Max: 54A / Min: 0.5A 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)

2x 650W 2x 650W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input600W: 100-127Vac / 50-60Hz 650W: 200-240Vac 650W: 200-240Vac / 50-60Hz 650W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 50A / Min: 0A (100Vac-127Vac)Max: 54.16A / Min: 0A (200Vac-240Vac)Max: 54.16A / Min: 0A (200Vdc-240Vdc) (for CCC only)Max: 54A / Min: 0.5A 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)

76 x 40 x 336 mm

600W: 100-127Vac / 50-60Hz 650W: 200-240Vac 650W: 200-240Vac / 50-60Hz 650W: 200-240Vdc / 50-60Hz (for CCC only)

Max: 50A / Min: 0A (100Vac-127Vac)Max: 54.16A / Min: 0A (200Vac-240Vac)Max: 54.16A / Min: 0A (200Vdc-240Vdc) (for CCC only)Max: 54A / Min: 0.5A

Max: 4A / Min: 0A

Backplanes (gold finger)
