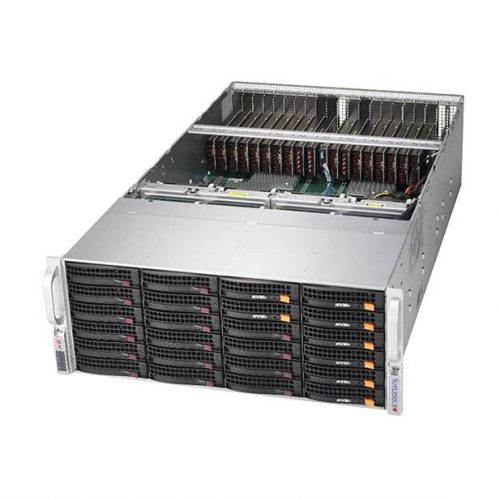

Supermicro SuperServer 6049GP-TRT

Print

Print

SYS-6049GP-TRT

SuperServer 6049GP-TRT

Dual Socket P (LGA 3647)2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,3 UPI up to 10.4GT/sSupport CPU TDP 70-205W

Up to 28 Cores

‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

20 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length) NVIDIA T4 Compatible GPU list

PCI-E Gen 3 x16 Switch CPU-GPU Interconnect

PCI-E, NVIDIA® NVLink™ Bridge (Optional)

24 DIMM slotsUp to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMMSupports Intel® Optane™ DCPMM††

2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro†† Cascade Lake only. Contact your Supermicro sales rep for more info.

Intel® C622 chipset

SATA3 (6Gbps) with RAID 0, 1, 5, 10

Dual Port 10GbE from C622

Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2500 BMC

24 SATA3 (6Gbps) ports

2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port

4 USB 3.0 ports (rear)

1 VGA Connector

1 COM port (header)

AMI 32Mb SPI Flash ROM

Intel® Node Manager IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watchdog

Monitors for CPU Cores, Chipset Voltages, Memory.4+1 Phase-switching voltage regulator

Fans with tachometer monitoringStatus monitor for speed controlPulse Width Modulated (PWM) fan connectors

Monitoring for CPU and chassis environmentThermal Control for fan connectors

SuperServer 6049GP-TRT

Dual Socket P (LGA 3647)2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,3 UPI up to 10.4GT/sSupport CPU TDP 70-205W

Up to 28 Cores

‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

20 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length) NVIDIA T4 Compatible GPU list

PCI-E Gen 3 x16 Switch CPU-GPU Interconnect

PCI-E, NVIDIA® NVLink™ Bridge (Optional)

24 DIMM slotsUp to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMMSupports Intel® Optane™ DCPMM††

2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro†† Cascade Lake only. Contact your Supermicro sales rep for more info.

Intel® C622 chipset

SATA3 (6Gbps) with RAID 0, 1, 5, 10

Dual Port 10GbE from C622

Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2500 BMC

24 SATA3 (6Gbps) ports

2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port

4 USB 3.0 ports (rear)

1 VGA Connector

1 COM port (header)

AMI 32Mb SPI Flash ROM

Intel® Node Manager IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watchdog

Monitors for CPU Cores, Chipset Voltages, Memory.4+1 Phase-switching voltage regulator

Fans with tachometer monitoringStatus monitor for speed controlPulse Width Modulated (PWM) fan connectors

Monitoring for CPU and chassis environmentThermal Control for fan connectors

4U Rackmountable Rackmount Kit (MCP-290-00057-0N)

CSE-848GTS-R4000P

7.0" (178mm)

17.2" (437mm)

32.1" (815mm)

Net Weight: 65.5 lbs (29.7 kg)Gross Weight: 100 lbs (45.3 kg)

Black

24 Hot-swap 3.5" drive bays or 22 Hot-swap 3.5" drive bays + 2 U.2 NVMe 2.5" drives

M.2 Interface: 1 PCI-E 3.0 x4Form Factors: 2280, 22110Key: M-Key

20 PCI-E 3.0 x16 (FHHL) slots - supporting up to 20 NVIDIA T4 Single-Width GPUs1 PCI-E 3.0 x8 (FH, FL in x16) slot

8x 92mm RPM Hot-Swappable Cooling Fans

1000W: 100 - 120Vac1800W: 200 - 220Vac1980W: 220 - 230Vac2000W: 230 - 240Vac2000W: 200 - 240Vac (UL/CUL only)

73.5 x 40 x 265 mm

100-120Vac / 12.5-9.5A / 50-60Hz200-220Vac / 10-9.5A / 50-60Hz220-230Vac / 10-9.8A / 50-60Hz230-240Vac / 10-9.8A / 50-60Hz200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)

Max: 83.3A / Min: 0A (100-120Vac)Max: 150A / Min: 0A (200-220Vac)Max: 165A / Min: 0A (220-230Vac)Max: 166.7A / Min: 0A (230-240Vac)Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)

Max: 2.1A / Min: 0A

25 Pairs Gold Finger Connector

Titanium Level [ Test Report ]

RoHS Compliant

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)

4U Rackmountable Rackmount Kit (MCP-290-00057-0N)

CSE-848GTS-R4000P

7.0" (178mm)

17.2" (437mm)

32.1" (815mm)

Net Weight: 65.5 lbs (29.7 kg)Gross Weight: 100 lbs (45.3 kg)

Black

24 Hot-swap 3.5" drive bays or 22 Hot-swap 3.5" drive bays + 2 U.2 NVMe 2.5" drives

M.2 Interface: 1 PCI-E 3.0 x4Form Factors: 2280, 22110Key: M-Key

20 PCI-E 3.0 x16 (FHHL) slots - supporting up to 20 NVIDIA T4 Single-Width GPUs1 PCI-E 3.0 x8 (FH, FL in x16) slot

8x 92mm RPM Hot-Swappable Cooling Fans

1000W: 100 - 120Vac1800W: 200 - 220Vac1980W: 220 - 230Vac2000W: 230 - 240Vac2000W: 200 - 240Vac (UL/CUL only)

73.5 x 40 x 265 mm

100-120Vac / 12.5-9.5A / 50-60Hz200-220Vac / 10-9.5A / 50-60Hz220-230Vac / 10-9.8A / 50-60Hz230-240Vac / 10-9.8A / 50-60Hz200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)

Max: 83.3A / Min: 0A (100-120Vac)Max: 150A / Min: 0A (200-220Vac)Max: 165A / Min: 0A (220-230Vac)Max: 166.7A / Min: 0A (230-240Vac)Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)

Max: 2.1A / Min: 0A

25 Pairs Gold Finger Connector

Titanium Level [ Test Report ]

RoHS Compliant

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)
