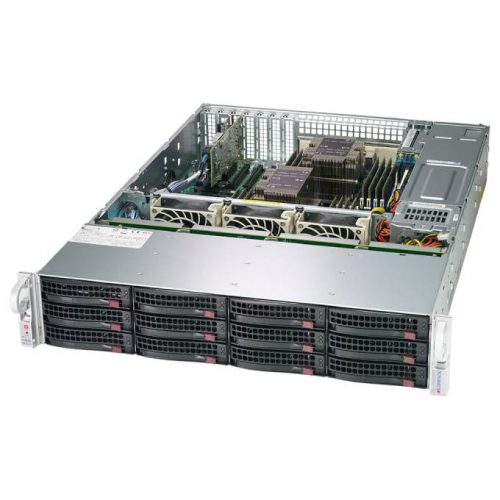

Supermicro SuperServer 620P-ACR12H

ChassisForm Factor2U RackmountModelCSV-826BTS-R1K23LPBP2 Dimensions and WeightHeight3.5"Width17.3"Depth25.5"Package12" (H) x 27" (W) x 35" (D)WeightGross Weight: 61 lbs (27.7 kg)Net Weight: 34 lbs (15.4 kg)Available ColorBlack Front PanelLEDHDD activityNetwork activityPower statusSystem information (overheat/UID) ButtonsPower On/Off Expansion Slots PCI-Express (PCIe) ConfigurationDefault4 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x8 MicroLP slot View AOC Options Drive Bays / Storage Drive Bays ConfigurationDefault: Total 14 bays8 front hot-swap 3.5" SAS/SATA drive bays 4 front hot-swap 3.5" NVMe*/SAS/SATA drive bays 2 rear hot-swap 2.5" SAS*/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables)View NVMe OptionsView Drive OptionsM.21 M.2 NVMe slot (M-key)View M.2 Options System CoolingFansUp to 3 Heavy Duty 8cm Fan(s)Air Shroud1 Air Shroud Power Supply 2x 1200W 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Operating EnvironmentROHSRoHS CompliantEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% ()Non-operating Relative Humidity: 5% to 95% ()

2x 1200W 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)

2x 1200W 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)

76 x 40 x 336 mm

1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)

Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vac-240Vac)

Max: 4A / Min: 0A

Backplanes (gold finger)
