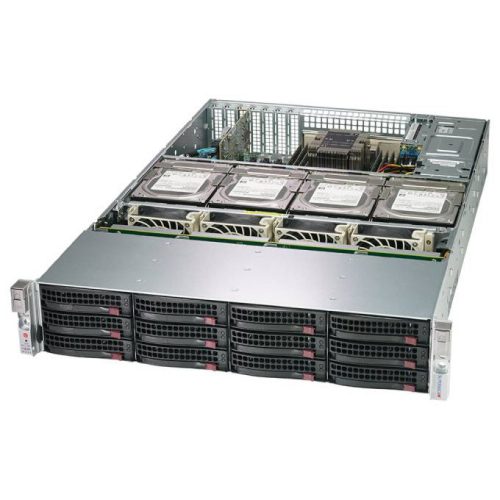

Supermicro SuperServer 620P-ACR16L

ChassisForm Factor2UModelCSE-829HE1C4-R1K62LPB Dimensions and WeightHeight3.5" (89 mm)Width17.2" (437 mm)Depth27.75" (705 mm)Package10.8" (H) x 25.9" (W) x 39.3" (D)WeightGross Weight: 62 lbs (28.12 kg)Net Weight: 41.5 lbs (18.82 kg)Available ColorBlack Front PanelLEDHDD Fail LEDNetwork Activity LEDsPower Fail LEDPower status LEDSystem Information LEDButtonsPower On/Off buttonSystem Reset button Expansion Slots PCI-Express (PCIe) ConfigurationDefault4 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x8 LP slot View AOC Options Drive Bays / Storage Drive Bays ConfigurationDefault: Total 18 bays8 front hot-swap 3.5" SAS/SATA drive bays 4 internal hot-swap 3.5" SAS/SATA drive bays 4 front hot-swap 3.5" NVMe*/SAS/SATA drive bays 2 rear hot-swap 2.5" SAS*/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables)View NVMe OptionsView Drive OptionsM.21 M.2 NVMe slot (M-key)View M.2 Options System CoolingFansUp to 4 Heavy Duty 8cm Fan(s)Air Shroud1 Air Shroud Power Supply 2x 1600W 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ] Operating EnvironmentROHSRoHS CompliantEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% ()Non-operating Relative Humidity: 5% to 95% ()

2x 1600W 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]

2x 1600W 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]

73.5 x 40 x 203 mm

1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz

Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac)

Max: 2.1A / Min: 0A

Backplanes (gold finger)

Titanium Level [ Test Report ]
