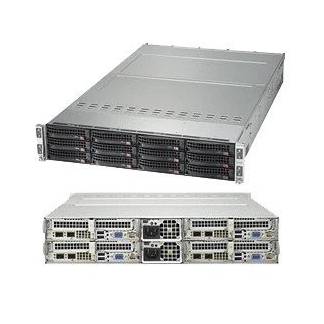

Supermicro SuperServer 620TP-HC1TR

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable ProcessorsIntel® C621A chipset16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM2 PCI-E 4.0 x16 (LP), 1 PCI-E 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22×80 mm)Intel® X710 Dual port 10GBase-T LAN onboard3x 3.5″ hot-swap SATA/SAS drive bays4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)Two 2200W redundant power supplies with PMBusASPEED AST2600 BMC, 2 USB, VGA. RoT, 2 SATADOM portsBroadcom® 3108 SAS (12Gbps); 3 slots per node; RAID 0, 1, 5, 6 support

Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors

Intel® C621A chipset

16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM

2 PCI-E 4.0 x16 (LP), 1 PCI-E 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22×80 mm)

Intel® X710 Dual port 10GBase-T LAN onboard

3x 3.5″ hot-swap SATA/SAS drive bays

4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)

Two 2200W redundant power supplies with PMBus

ASPEED AST2600 BMC, 2 USB, VGA. RoT, 2 SATADOM ports

Broadcom® 3108 SAS (12Gbps); 3 slots per node; RAID 0, 1, 5, 6 support
