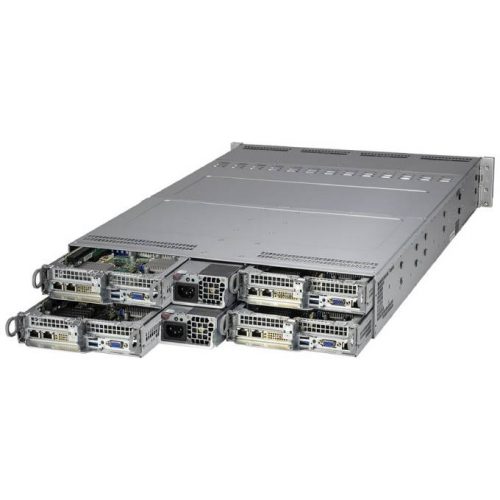

Supermicro SuperServer 620TP-HTTR

ChassisForm Factor2U RackmountModelCSV-827HQ+-R2K20BP4 Dimensions and WeightHeight3.47" (88 mm)Width17.25" (438 mm)Depth30.5" (774 mm)Package10" (H) x 24.5" (W) x 45" (D)WeightGross Weight: 90 lbs (40.9 kg)Net Weight: 72 lbs (32.7 kg)Available ColorBlack front & silver body Front PanelLEDNetwork activity LEDPower status LEDSystem information (overheat/UID) LEDButtonsPower On/Off buttonUID button Expansion Slots (per Node)PCI-Express (PCIe) ConfigurationDefault2 PCIe 4.0 x16 LP slots View AOC Options Drive Bays / Storage (per Node)Drive Bays ConfigurationDefault: Total 3 bays3 front hot-swap 3.5" SATA drive bays View Drive Options System CoolingFansUp to 4x 8cm heavy duty fans with optimal fan speed controlAir Shroud4 Air Shrouds Power Supply 1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Total Output Power(for CCC only)(for UL/cUL use only) Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only) +12VMax: 100A / Min: 0A (100Vdc-127Vdc)Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger) Operating EnvironmentEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)

1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Total Output Power(for CCC only)(for UL/cUL use only) Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only) +12VMax: 100A / Min: 0A (100Vdc-127Vdc)Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)

1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Total Output Power(for CCC only)(for UL/cUL use only) Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only) +12VMax: 100A / Min: 0A (100Vdc-127Vdc)Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)

76 x 40 x 336 mm

(for CCC only)(for UL/cUL use only)

1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)2200W: 230-240Vac 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)

Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (230Vdc-240Vdc)

Max: 1A / Min: 0A

Backplanes (gold finger)
