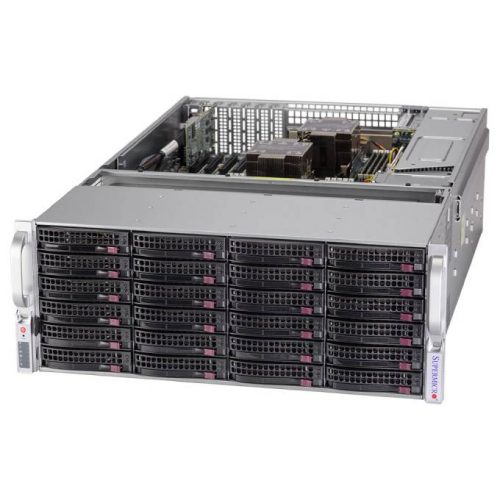

Supermicro SuperServer 640P-E1CR36L

ChassisForm Factor4U RackmountModelCSE-847BTS-R1K68LPBP4 Dimensions and WeightHeight7"Width17.2"Depth27.5"Package15" (H) x 27" (W) x 39" (D)WeightGross Weight: 102.5 lbs (46.4 kg)Net Weight: 65.5 lbs (29.7 kg)Available ColorSilver Front PanelLEDHDD activityNetwork activityPower statusSystem information (overheat/UID) ButtonsPower On/Off Expansion Slots PCI-Express (PCIe) ConfigurationDefault3 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x8 LP slot View AOC Options Drive Bays / Storage Drive Bays ConfigurationDefault: Total 38 bays24 front hot-swap 3.5" SAS/SATA drive bays 12 rear hot-swap 3.5" SAS/SATA drive bays 2 rear hot-swap 2.5" SAS*/SATA drive bays (*SAS support may require additional storage controller and/or cables)View Drive OptionsM.21 M.2 NVMe slot (M-key)View M.2 Options System CoolingFansUp to 7 Heavy Duty 8cm Fan(s)Air Shroud1 Air Shroud Power Supply 2x 1600W 2x 1600W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input100-140Vac 800W: 100-140Vac / 50-60Hz 180-240Vac 1600W: 180-240Vac / 50-60Hz +12VMax: 66A / Min: 0A (100Vac-127Vac)Max: 66A / Min: 0A (100Vac-140Vac)Max: 133A / Min: 0A (180Vac-240Vac)Max: 133A / Min: 0A (200Vac-240Vac) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ] Operating EnvironmentROHSRoHS CompliantEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% ()Non-operating Relative Humidity: 5% to 95% ()

2x 1600W 2x 1600W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input100-140Vac 800W: 100-140Vac / 50-60Hz 180-240Vac 1600W: 180-240Vac / 50-60Hz +12VMax: 66A / Min: 0A (100Vac-127Vac)Max: 66A / Min: 0A (100Vac-140Vac)Max: 133A / Min: 0A (180Vac-240Vac)Max: 133A / Min: 0A (200Vac-240Vac) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]

2x 1600W 2x 1600W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input100-140Vac 800W: 100-140Vac / 50-60Hz 180-240Vac 1600W: 180-240Vac / 50-60Hz +12VMax: 66A / Min: 0A (100Vac-127Vac)Max: 66A / Min: 0A (100Vac-140Vac)Max: 133A / Min: 0A (180Vac-240Vac)Max: 133A / Min: 0A (200Vac-240Vac) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]

76 x 40 x 336 mm

100-140Vac 800W: 100-140Vac / 50-60Hz 180-240Vac 1600W: 180-240Vac / 50-60Hz

Max: 66A / Min: 0A (100Vac-127Vac)Max: 66A / Min: 0A (100Vac-140Vac)Max: 133A / Min: 0A (180Vac-240Vac)Max: 133A / Min: 0A (200Vac-240Vac)

Max: 1A / Min: 0A

Backplanes (gold finger)

Titanium Level [ Test Report ]
