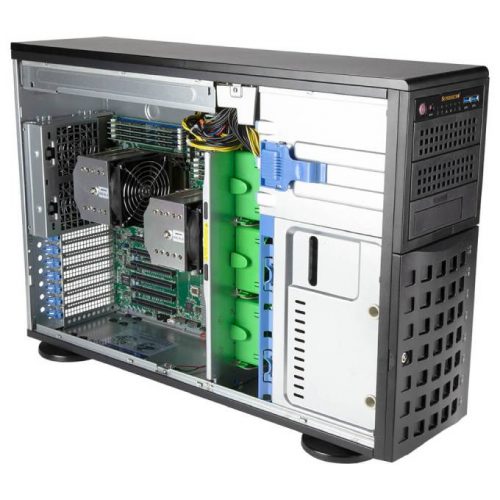

Supermicro SuperServer 740A-T

ChassisForm Factor4U Tower RackmountModelCSE-745BTS-R1K23BP3 Dimensions and WeightHeight17.8" (452 mm)Width7" (178 mm)Depth25.5" (647 mm)Package24.6" (H) x 14" (W) x 31.3" (D)WeightGross Weight: 62 lbs (28.12 kg)Net Weight: 59 lbs (26.76 kg)Available Colorblack Front PanelLEDHDD activity LEDNetwork activity LEDsPower status LEDButtonsPower On/Off buttonReset button Expansion Slots PCI-Express (PCIe) ConfigurationDefault5 PCIe 4.0 x16 FHFL slots 1 PCIe 4.0 x8 FHHL slot View AOC Options Drive Bays / Storage Drive Bays ConfigurationDefault: Total 8 bays4 front hot-swap 3.5" SAS*/SATA drive bays 4 front hot-swap 3.5" NVMe*/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables)View NVMe OptionsView Drive OptionsM.22 M.2 NVMe slots (M-key)View M.2 OptionsPeripheral Bays3 5.25" peripheral bays (optional) System CoolingFansUp to 5x 8cm heavy duty fans with optimal fan speed control Power Supply 1x 1200W 1x 1200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Operating EnvironmentEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5% to 95% (non-condensing)

1x 1200W 1x 1200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)

1x 1200W 1x 1200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)

76 x 40 x 336 mm

1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)

Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)

Max: 4A / Min: 0A

Backplanes (gold finger)
