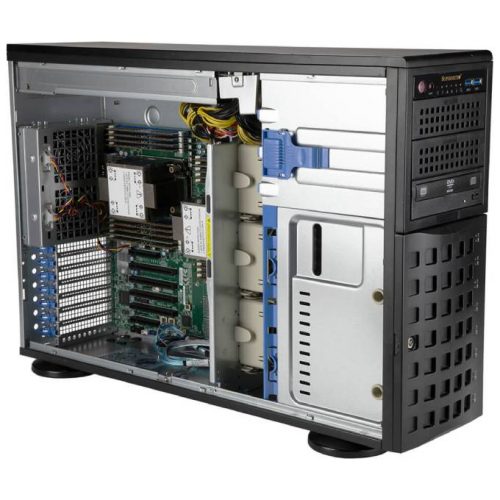

Supermicro SuperServer 740P-TRT

ChassisForm FactorTower/4UModelCSE-745BTS-R1K23BP Dimensions and WeightHeight17.8" (452 mm)Width7" (178 mm)Depth25.5" (647 mm)Package24.6" (H) x 14" (W) x 31.3" (D)WeightGross Weight: 73.5 lbs (33.9 kg)Net Weight: 56 lbs (25.9 kg)Available ColorBlack Front PanelLEDHDD activityNetwork activityPower statusSystem information (overheat/UID) ButtonsPower On/Off System Reset Expansion Slots PCI-Express (PCIe) ConfigurationDefault4 PCIe 4.0 x16 LP slots 2 PCIe 4.0 x8 LP slots View AOC Options Drive Bays / Storage Drive Bays ConfigurationDefault: Total 8 bays8 front hot-swap 3.5" SAS*/SATA drive bays Option A: Total 10 bays8 front hot-swap 3.5" SAS*/SATA drive bays 2 front fixed 3.5" NVMe*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)View Drive OptionsM.21 M.2 NVMe slot (M-key)View M.2 OptionsPeripheral Bays1 5.25" DVD bay (optional) System CoolingFansUp to 3 middle Fan(s)Up to 2 rear Fan(s) Power Supply 1x 1200W 1x 1200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) Operating EnvironmentROHSRoHS CompliantEnvironmental Spec.Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)Operating Relative Humidity: 8% to 90% (Non-Condensing)Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

1x 1200W 1x 1200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)

1x 1200W 1x 1200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)

76 x 40 x 336 mm

1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)

Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)

Max: 4A / Min: 0A

Backplanes (gold finger)
