Overview

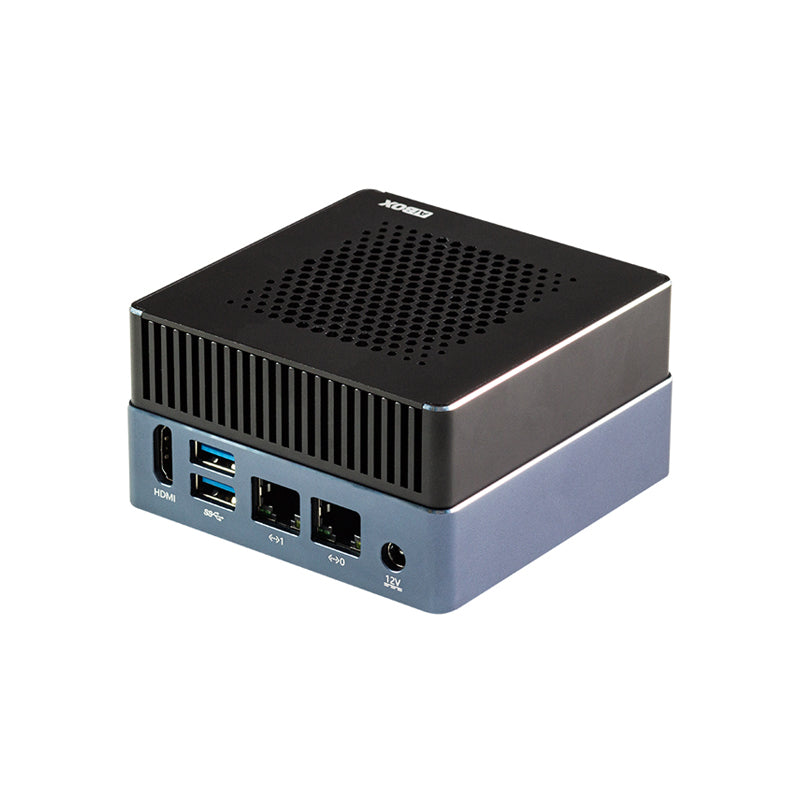

Firefly AIBOX-1684X Embedded PC Edge Computing Video Analysis — a fanless industrial edge computer built on the SOPHON BM1684X, rated 32 TOPS (INT8). Runs vision and small-model inference on-device, with no fan and no host machine.
Key Features
- SOPHON BM1684X SoC
- 32 TOPS (INT8) of neural compute
- High-performance octa-core ARM A53, 12nm lithography process, frequency up to 2.3 GHz
- Fanless industrial chassis
- On-device inference, no host required
Ideal For
Industrial and retail deployments running continuous video analytics where a fan is a failure point.
Soc
SOPHON BM1684X
Cpu
High-performance octa-core ARM A53, 12nm lithography process, frequency up to 2.3 GHz
Tpu
32TOPS (INT8)、16TFLOPS (FP16/BF16)、2TFLOPS (FP32)
Vpu
32-channel H.265/H.264 1080P@25fps video decoding1-channel H.265 8K@25fps video decoding32-channel 1080P@25fps processing decoding + AI analysis12-channel H.265/H.264 1080P@25fps video encodingJPEG image encoding and decoding can reach 1080P@600fps
Ram
8GB/12GB/16GB LPDDR4/LPDDR4X
Storage
32GB/64GB/128GB eMMC, 1 × TF Card
Power
DC 12V/4A (5.5 × 2.5mm)
Power consumption
Normal: 20.4W (12V/1700mA)Max: 43.2W (12V/3600mA)
Dimension
90.6mm × 84.4mm × 48.5mm
Weight
≈ 420g
Environment
Operating temperature: -20℃～60℃Storage temperature: -20℃～70℃Storage humidity: 10%～90%RH (non-condensing)
Ethernet
2 × Gigabit Ethernet (1000Mbps/RJ45)
Usb
2 × USB3.0 (Max: 1A), 1 × Type-C (Debug serial)
Button
1 × Power button
Operating temperature
-20℃～60℃
Storage temperature
-20℃～70℃
Storage humidity
10%～90%RH (non-condensing)
