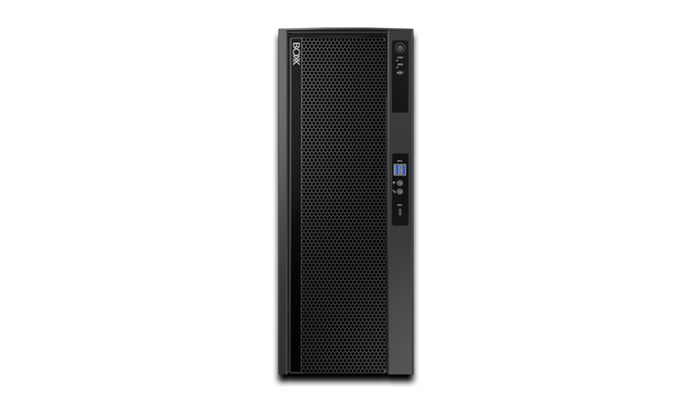

APEXX A3

Chipset

AMD X870E

Socket

Single (AM5)

CPU Cooling

Liquid-Cooled (closed loop)

Processor

AMD Ryzen 9000

Core Frequency (GHz)

4.3 Base / 5.7 Boost clock

Cores/Threads

16/32

Multi-Threading

Yes

Max Configurable Memory

192GB DDR5-5600MHz

DIMM Slots

4

PCIe Slots

x16, x16(x8)

Supported GPU Configurations

① x16 ② x16/x8

2.5" Drive(s)

4 (Up to 8TB each)

3.5" Drive(s)

4 (Up to 18TB each)

Shipping Dimensions

24" (60.96cm) W15" (38.10cm) H27" (68.58cm) D

Shipping Weight

40 lbs.

Anti-Theft Feature

Kensington® Security Slot

M.2 Drive(s)

3 (Up to 4TB each)

U.2 Support

No

RAID Support

0, 1

OCuLink Support

No

Max 2.5"/3.5" Configurations

• • 4 x 3.5" | or |
• • 8 x 2.5"

Onboard Wi-Fi

802.11ax (Wi-Fi 6E)

Onboard Bluetooth

V5.2

Power Supply

1,200-watt (80 PLUS Gold)

GPU Power Budget (W)

1000

Product Dimensions

6.85" (17.40cm) W18.0" (45.72cm) H20.2" (51.31cm) D

Front I/O

• • 2 x USB 3.2 Gen 2 Type A
• • 1 x USB 3.2 Gen 2 Type CAudio Out/Mic In

Rear I/O

• • 1 x 2.5Gigabit LAN (RJ-45)
• • 2 x USB 4.0 (USB Type-C)
• • 3 x USB 3.2 Gen 1 (Type-A)
• • 5 x USB 3.2 Gen 2 (Type-A)
• • 7.1-Channel HD Audio
• • 1 x Optical SPDIF Out
• • 2 x Antenna
• • 1 x HDMI

Optical Drive Option

No

Rackmount Option

Yes

Notes

Highest available CPU core count and associated clock speeds shown. Other processors with different core counts and frequencies may be available.GPU power budgets are conservative estimates.Shipping weights vary by configuration.
