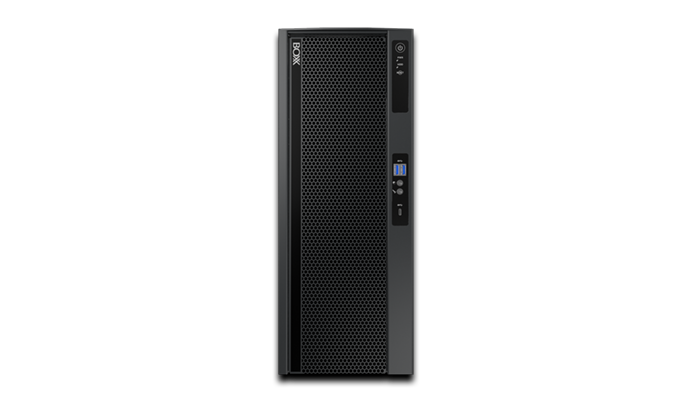

APEXX P4i

Chipset

SoC

Socket

Single (SP5)

CPU Cooling

Liquid-Cooled (closed loop)

Processor

AMD EPYC 9005

Core Frequency (GHz)

4.80 Ghz

Cores/Threads

192/384

Multi-Threading

Yes

Max Configurable Memory

4TB DDR5-6400MHz

DIMM Slots

8

PCIe Slots

x16, x16, x16, x16, x16, x16*, x16*shared Slot with MCIO and M.2

Supported GPU Configurations

① x16 ② x16/x16

2.5" Drive(s)

4 (Up to 8TB each)

3.5" Drive(s)

4 (Up to 18TB each)

Shipping Dimensions

24" (60.96cm) W15" (38.10cm) H27" (68.58cm) D

Shipping Weight

40 lbs.

Anti-Theft Feature

Kensington® Security Slot

M.2 Drive(s)

2 (Up to 4TB each)

U.2 Support

No

RAID Support

0, 1

OCuLink Support

No

Max 2.5"/3.5" Configurations

• • 4 x 3.5" | or |
• • 8 x 2.5"

Onboard Wi-Fi

N/A

Onboard Bluetooth

N/A

Power Supply

1,600-watt (80 PLUS Gold)

GPU Power Budget (W)

1200

Product Dimensions

6.85" (17.40cm) W18.0" (45.72cm) H20.2" (51.31cm) D

Front I/O

2 x USB 3.2 Gen 1

Rear I/O

• • 2 x 10GbE LAN (RJ-45)
• • 1 x IPMI (RJ-45)
• • 2 x USB 3.2 Gen 1 (Type-A)
• • 1 x VGA Port BMC

Optical Drive Option

No

Rackmount Option

Yes

Notes

Highest available CPU core count and associated clock speeds shown. Other processors with different core counts and frequencies may be available.GPU power budgets are conservative estimates.Shipping weights vary by configuration.
