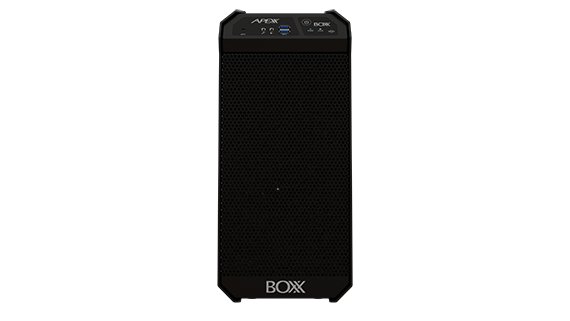

APEXX S3

Chipset

Intel Z890

Socket

Single (1851)

CPU Cooling

Liquid-Cooled (closed loop)

Processor

Intel Core Ultra 200 Series

Core Frequency (GHz)

See notes.

Cores/Threads

24/0

Multi-Threading

No

Max Configurable Memory

192GB DDR5-5600MHz

DIMM Slots

4

PCIe Slots

x16, x16(x4)

Supported GPU Configurations

1 x16

2.5" Drive(s)

4 (Up to 8TB each)

3.5" Drive(s)

2 (Up to 18TB each)

Shipping Dimensions

21" (53.34cm) W15" (38.10cm) H24" (60.96cm) D

Shipping Weight

35 lbs.

Anti-Theft Feature

Kensington® Security Slot

M.2 Drive(s)

4 (Up to 4TB each)

U.2 Support

No

RAID Support

0, 1

OCuLink Support

No

Max 2.5"/3.5" Configurations

• • 2 x 3.5" | or |
• • 1 x 3.5" +
• • 2 x 2.5" | or |
• • 4 x 2.5"

Onboard Wi-Fi

802.11ab (Wi-Fi 7)

Onboard Bluetooth

V5.4

Power Supply

750-watt (80 PLUS Gold)

GPU Power Budget (W)

350

Product Dimensions

6.84" (17.37cm) W 15.28" (38.81cm) H 17.80" (45.21cm) D

Front I/O

• • 1 x USB 3.2 Gen 2 (Type-C)
• • 2 x USB 3.2 Gen 1 (Type-A)
• • Audio Out/Mic In

Rear I/O

• • 1 x 2.5 Gigabit LAN (RJ-45)
• • 1 x 5.0 Gigabit LAN (RJ-45)
• • 2 x Thunderbolt 4.0 (USB Type-C)
• • 4 x USB 3.2 Gen 2 (Type-A)
• • 4 x USB 3.2 Gen 1 (Type-A)
• • 2 x USB 2.0 (Type-A)
• • 5.1-Channel HD Audio
• • 2 x Antenna
• • 1 x HDMI

Optical Drive Option

No

Rackmount Option

No

Notes

The S-Class workstations utilize Intel® processors that can reach speeds of up to 5.7GHz. The CPU of this model has been performance enhanced to maintain boost speeds for an indefinite amount of time. The power budgets for the GPU are conservative estimates. It is possible to customize a system to test a particular hardware configuration. The shipping weights provided are approximate and may vary based on the configuration. This system is certified by SOLIDWORKS.
