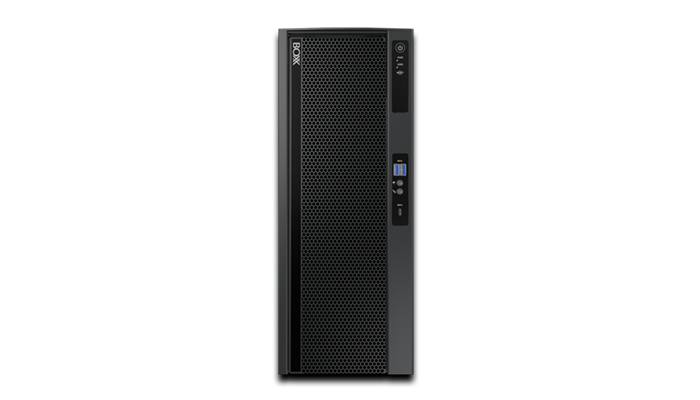

APEXX T4

Chipset

AMD TRX50

Socket

Single (sTR5)

CPU Cooling

Liquid-Cooled (closed loop)

Processor

AMD Threadripper 9000

Core Frequency (GHz)

4.2 Base clock / 5.3 Boost clock

Cores/Threads

64/128

Multi-Threading

Yes

Max Configurable Memory

1TB DDR5-6400MHz

DIMM Slots

4

PCIe Slots

x16, x16(x4), x16, x16(x8), x16(x8)

Supported GPU Configurations

① x16 ② x16/x16

2.5" Drive(s)

4 (Up to 8TB each)

3.5" Drive(s)

4 (Up to 18TB each)

Shipping Dimensions

24" (60.96cm) W15" (38.10cm) H27" (68.58cm) D

Shipping Weight

40 lbs.

Anti-Theft Feature

Kensington® Security Slot

M.2 Drive(s)

3 (Up to 4TB each)

U.2 Support

No

RAID Support

0, 1

OCuLink Support

No

Max 2.5"/3.5" Configurations

• • 4 x 3.5" | or |
• • 8 x 2.5"

Onboard Wi-Fi

802.11ax (Wi-Fi 6E)

Onboard Bluetooth

V5.2

Power Supply

1,300-watt (80 PLUS Gold)

GPU Power Budget (W)

800

Product Dimensions

6.85" (17.40cm) W18.0" (45.72cm) H20.2" (51.31cm) D

Front I/O

• • 2 x USB 3.2 Gen 1 Type A
• • 1 x USB 3.2 Gen 2 Type CAudio Out/Mic In

Rear I/O

• • 2 x USB 3.2 Gen 2 (Type-C)
• • 4 x USB 3.2 Gen 2 (Type-A)
• • 2 x USB 3.2 Gen 1 (Type-A)
• • 1 x 10GbE LAN (RJ-45)
• • 1 x 2.5GbE LAN (RJ-45)
• • 1 x Optical S/PDIF Out
• • 2 x Audio Jacks

Optical Drive Option

No

Rackmount Option

Yes

Notes

Highest available CPU core count and associated clock speeds shown. Other processors with different core counts and frequencies may be available.GPU power budgets are conservative estimates.Shipping weights vary by configuration.
