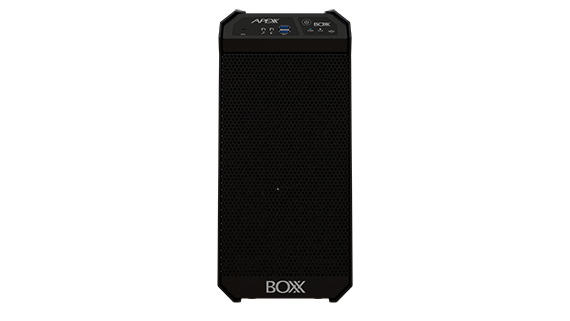

APEXX W3

Chipset

Intel W790

Socket

Single (4677)

CPU Cooling

Liquid-Cooled (closed loop)

Processor

Intel Xeon W

Core Frequency (GHz)

2.8 Base clock / 4.8 Boost clock

Cores/Threads

26/52

Multi-Threading

Yes

Max Configurable Memory

1TB DDR5-4800MHz

DIMM Slots

8

PCIe Slots

x16, NA. x16(x8), x16, x16(x8), x16 (x4), x16(x8)

Supported GPU Configurations

Up to 2 GPUs at x16

2.5" Drive(s)

4 (Up to 8TB each)

3.5" Drive(s)

2 (Up to 18TB each)

Shipping Dimensions

21" (53.34cm) W15" (38.10cm) H24" (60.96cm) D

Shipping Weight

35 lbs.

Anti-Theft Feature

Kensington® Security Slot

M.2 Drive(s)

4 (Up to 4TB each)

U.2 Support

Yes

RAID Support

0, 1

OCuLink Support

No

Max 2.5"/3.5" Configurations

• • 2 x 3.5" | or |
• • 1 x 3.5" +
• • 2 x 2.5" | or |
• • 4 x 2.5"

Onboard Wi-Fi

802.11ax (Wi-Fi 6E)

Onboard Bluetooth

V5.3

Power Supply

1,300-watt (80 PLUS Gold)

GPU Power Budget (W)

1000

Product Dimensions

6.84" (17.37cm) W15.28" (38.81cm) H17.80" (45.21cm) D

Front I/O

• • 2 x USB 3.2 Gen 1 (Type-A)
• • 1 x USB 3.2 Gen 2x2 (Type-C)
• • Audio Out/Mic In

Rear I/O

• • 2 x 10GbE LAN (RJ-45)
• • 1 x 2.5GbE LAN (RJ-45)
• • 4 x USB 3.2 Gen 1 (Type-A)
• • 2 x USB 3.2 Gen 2 (Type-A)
• • 2 x USB 4.0 / Thunderbolt 4.0 (Type-C)
• • 1 x Optical S/PDIF out7.1-Channel Audio2 Ports

Optical Drive Option

No

Rackmount Option

No

Notes

Highest available CPU core count and associated clock speeds shown. Other processors with different core counts and frequencies may be available.GPU power budgets are conservative estimates.Shipping weights vary by configuration.
