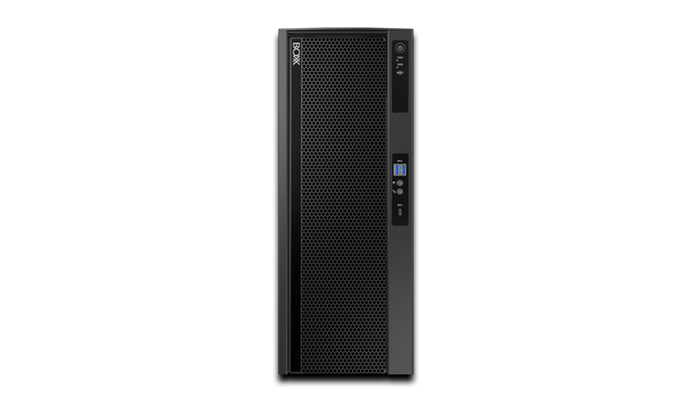

APEXX W4

Chipset

Intel W890

Socket

Single (4710-2)

CPU Cooling

Liquid-Cooled (closed loop)

Processor

Intel Xeon 600

Core Frequency (GHz)

2.0 Base clock / 4.8 Boost clock

Cores/Threads

86/172

Multi-Threading

Yes

Max Configurable Memory

1TB DDR5-6400MHz

DIMM Slots

8

PCIe Slots

x16, x16, x16, x16,x16, x16(x8), x16

Supported GPU Configurations

Up to 4 GPUs at x16

2.5" Drive(s)

8 (Up to 8TB each)

3.5" Drive(s)

4 (Up to 18TB each)

Shipping Dimensions

24" (60.96cm) W15" (38.10cm) H27" (68.58cm) D

Shipping Weight

40 lbs.

Anti-Theft Feature

Kensington® Security Slot

M.2 Drive(s)

4 (Up to 4TB each)

U.2 Support

Yes

RAID Support

0, 1, 5, 10

OCuLink Support

No

Max 2.5"/3.5" Configurations

• • 4 x 3.5" | or |
• • 8 x 2.5"

Onboard Wi-Fi

N/A

Onboard Bluetooth

N/A

Power Supply

1,600-watt (80 PLUS Gold)

GPU Power Budget (W)

1200

Product Dimensions

6.85" (17.40cm) W18.0" (45.72cm) H20.2" (51.31cm) D

Front I/O

• • 2 x USB 3.2 Gen 1 Type A
• • 1 x USB 3.2 Gen 2x2 Type CAudio Out/Mic In

Rear I/O

• • 2 x 10GbE LAN (RJ-45)
• • 6 x USB 3.2 Gen 1 (Type-A)
• • 2 x USB 4.0 (Type-C)
• • 2 x Audio Ports
• • 2 x MiniDisplay Ports
• • 1 x 1GbE LAN (RJ-45) BMC
• • 1 x VGA Connector BMC

Optical Drive Option

No

Rackmount Option

Yes

Notes

Highest available CPU core count and associated clock speeds shown. Other processors with different core counts and frequencies may be available.GPU power budgets are conservative estimates.Shipping weights vary by configuration.
