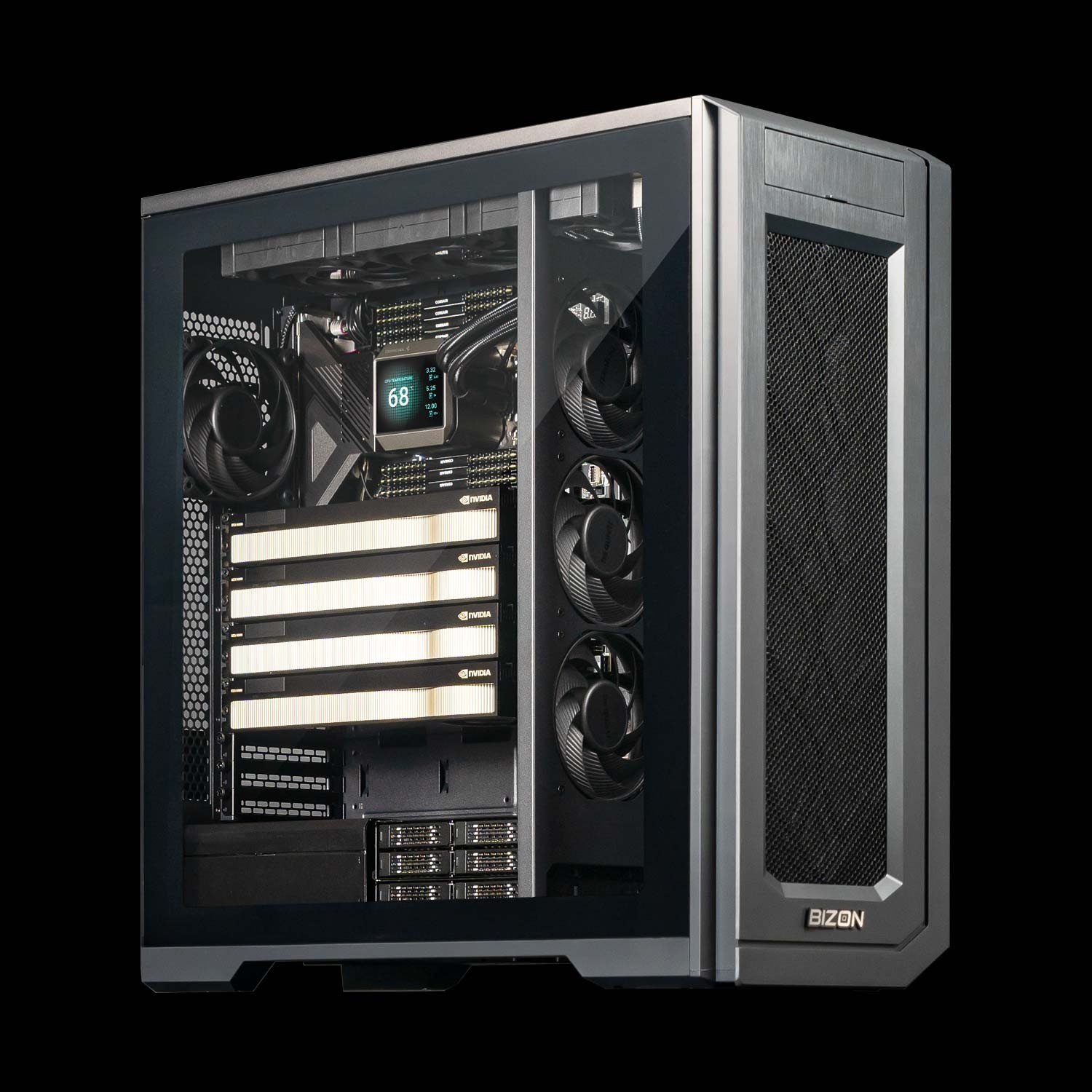

BIZON G3000 – 2 GPU 4 GPU RTX 5090 4090 Deep Learning Workstation PC

Ports

• Front panel: 2x USB 3.0, Mic, Headphone, Reset, Power button
• Rear panel: 3 x USB 3.2 Gen2 Type-A, 1 x USB3.2 Gen2x2 Type-C, 1 x VGA, 1 x COM, 2 x RJ45, 1 x RJ45 IPMI_dedicated, 1 x ID button with LED, 3 x Audio jacks

Motherboard

• • Supports 4th Gen Intel Xeon W-3500 and W-2500 Processors (LGA4677).
• • 7 x PCI-E slots.
• • Supports 8x SATA HDD/SSD, 2x NVMe SSD
• • Intel W790 Chipset.

CPU

4th Gen Intel Xeon W-3500 series with up to 60 Cores or Intel Xeon W-2500 series with up to 22 Cores

RAM

• • Up to 1024 GB DDR5 5600 MHz ECC Buffered
• • 8 RAM slots.
• • Quad Channel DDR5 Memory Technology.

Expansion Slots

• • 5 x PCIe 5.0 x16 Slots (Slot_7, Slot_6, Slot_5, Slot_4 ,Slot_2 at x16)
• • 2 x PCIe 4.0 x16 Slots (Slot_3, Slot_1 at x16)
• • 2 x PCI-Express M.2
• • 2 x U.2 connectors

Storage

• • 2 x M.2 slots: M-key, PCIe Gen4 x4, Supports NGFF-2280 cards
• • 8 x SATA 6Gb/s (SlimSAS type)
• • Supports RAID 0, RAID 1, RAID 5 and RAID 10

Graphics Cards

• Available options: Nvidia RTX 5060 Ti 8 Gb (3 DP, HDMI), Nvidia RTX 5070 12 Gb (3 DP, HDMI), Nvidia RTX 5070 Ti 16 Gb (3 DP, HDMI), Nvidia RTX 5080 16 Gb (3 DP, HDMI), Nvidia RTX 5090 32 Gb (3 DP, HDMI), Nvidia RTX 6000 Ada 48Gb (4 DP), Nvidia RTX PRO 4000 Blackwell 24Gb (4 DP), Nvidia RTX PRO 4500 Blackwell 32Gb (4 DP), Nvidia RTX PRO 5000 Blackwell 48Gb (4 DP), Nvidia RTX PRO 6000 Blackwell Max-Q 96Gb (300W) (4 DP), Nvidia RTX PRO 6000 Blackwell 96Gb (600W) (4 DP)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Onboard Audio

7.1 Realtek ALC897 Audio Codec

Onboard LAN

• • 2 x 10GbE LAN ports (Intel X710-AT2)
• • 1 x 10/100/1000 Management LAN (Realtek RTL8211FD)
• • 25 Gigabit Dual Port Ethernet (2x SFP28) (optional)
• • 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; 1x QSFP) (optional)

Wireless

• Wi-Fi: 802.11ac Wi-Fi Module, Supports Wi-Fi 802.11a/b/g/n/ac, Supports MU-MIMO
• Bluetooth: Bluetooth 5.1 + High speed class II

Case

• High-End Case with anodized aluminum panels and tempered glass side panel.:

Cooling System

• • CPU Liquid Cooling
• • Front: 2 x 140mm fans
• • Rear: 140mm fan

Power Supply

• 1 GPU-Ready for 1x RTX 5090/40xx:
• Power cord requirements: C13 (PSU) to 5-15P (regular US home outlet).C13 (PSU) to C14 (plug) (PDU).
• 2 GPU-Ready for 2x RTX 5090/40xx or 2x RTX 6000 Ada/Blackwell:
• Power cord requirements: C13 (PSU) to 5-15P (regular US home outlet).C13 (PSU) to C14 (plug) (PDU).
• 4 GPU-Ready for 4x RTX 6000 Ada, RTX PRO 6000 Max-Q:
• Power cord requirements: C13 (PSU) to 5-15P (regular US home outlet).C13 (PSU) to C14 (plug) (PDU).

Power Consumption

2 x NVIDIA RTX 5090:Idle: 200WMax Load (stress test): 1000W-1200W

Noise level and temperature

• • Idle noise level: up to 43 dB
• • Idle temperature (GPUs): Average 44 C / 111 F (min 42 C - max 44 C)
• • Max load noise level (stress test): up to 57 dB
• • Max load temperature (GPUs): Average 86 C / 186.8 F (min 84 C - max 88 C)

Dimensions & Weight

• Case: Height: 22.8 inches (58.0 cm), Width: 9.5 inches (24.0 cm), Depth: 22.0 inches (56.0 cm)
• Shipping Package: Height: 25.6 inches (65.0 cm), Width: 13.0 inches (33.0 cm), Length: 26.2 inches (66.5 cm), Weight: 53 lbs (24.5 kg)

Electrical and Operating Requirements

• • Line voltage: 100-240V AC
• • Frequency: 50Hz to 60Hz, single phase
• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating Relative Humidity: 8% to 90% (non-condensing)

In the Box

• • Bizon G3000.
• • 1/2 Power cord (USA).
• • User manual.
• • Benchmark report.

Operating System

• • BIZON Z-Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • No operating system (optional).

Part Number

bizon-g3000-0823

Ports

• 2 GPU-Ready:
• Front panel: 2x USB 3.0, Mic, Headphone, Reset, Power button
• Rear panel: 1 x PS/2 keyboard/mouse combo port, 1 x RJ45, 4 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0, 1 x BIOS FlashBack button, 1 x Optical S/PDIF out, 5 x Audio jacks
• 4 GPU-Ready:
• Front panel: Mic, Headphone, Reset, Power button
• Rear panel: 2 x RJ45, 6 x USB 3.1 Gen 1 (1Gb LAN) / 4 x USB 3.1 Gen 1 (10Gb LAN), 1 x USB 3.1 Gen 2 Type-C, 1 x USB 3.1 Gen 2 Type-A, 4 x USB 2.0 (1Gb LAN) / 0 x USB 2.0 (10Gb LAN), 1 x Optical S/PDIF out, 5 x Audio jacks

Motherboard

• 2 GPU-Ready: ASUS PRIME X299-A II
• 4 GPU-Ready: ASUS PRIME X299-A II ASUS WS X299 SAGE

CPU

Intel Core i9 processor with up to 18 Cores

RAM

• 2 GPU-Ready: Up to 256 GB DDR4 3000 MHz, 8 RAM slots., Quad Channel.
• 4 GPU-Ready: Up to 256 GB DDR4 3000 MHz, 8 RAM slots., Quad Channel.

Expansion Slots

• 2 GPU-Ready: 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8), 2 x PCIe 3.0 x4, 3 x PCI-Express M.2, 1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode
• 4 GPU-Ready: 7 x PCIe 3.0/2.0 x16 single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8, 2 x PCI-Express M.2

Storage

• 2 GPU-Ready:
• Intel X299 Chipset: 1 x M.2_1 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIe 3.0 x 4 mode), 1 x M.2_2 Socket 3 with vertical M key, type 2242/2260/2280/22110 (Support both SATA & PCIe 3.0 x 4 mode), 1 x M.2_3 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIe 3.0 x 4 mode), 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10, Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Optane Memory Ready
• 4 GPU-Ready:
• Intel X299 Chipset: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode), 8 x SATA 6Gb/s port(s), 2 x U.2 connector (with 1Gb option) / 1 x U.2 connector (with 10Gb option), Support Raid 0, 1, 5, 10, Support Intel Rapid Storage Technology enterprise 5.1 for X-Series (6-core and above) CPU RAID, Supports Intel Smart Response Technology, Intel Rapid Storage Technology 15 support, Intel Optane Memory Ready, Intel Virtual RAID (VROC) support for CPU RAID

Graphics Cards

• 2 GPU-Ready: Up to 2 x 30xx-Series NVIDIA
• 4 GPU-Ready: Up to 2 x 40xx-Series NVIDIA, Up to 4 x NVIDIA A-Series
• Available options: Nvidia RTX 3060 Ti 8 Gb (3 DP, HDMI), Nvidia RTX 4070 Ti 12 Gb (3 DP, HDMI), Nvidia RTX 4080 16 Gb (3 DP, HDMI), Nvidia RTX 4090 24 Gb (3 DP, HDMI), Nvidia RTX A4000 16Gb (4 DP), Nvidia RTX A4500 20Gb (4 DP), Nvidia RTX A5000 24Gb (4 DP), Nvidia RTX A5500 24Gb (4 DP), Nvidia RTX A6000 48Gb (4 DP), Nvidia RTX 4000 Ada 20Gb (4 DP), Nvidia RTX 6000 Ada 48Gb (4 DP)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Onboard Audio

7.1 Channels Realtek ALC S1220A

Onboard LAN

• 2 GPU-Ready:
• 4 GPU-Ready:

Case

• Case #1:
• Case #2 (Rackmount 5U):

Cooling System

• • CPU Liquid Cooling
• • Front: 2 x 140mm fans
• • Rear: 140mm fan

Power Supply

• 1 GPU-Ready for 1x RTX 4090/4080:
• 2 GPU-Ready for 2x RTX 4090/4080: Note: The system power supply requires C19 type power cord (included).C19 Connector and C20 Inlet.
• 4 GPU-Ready for 4x A6000:

Power Consumption

4 x NVIDIA RTX 2080: Idle: 200W Max Load (stress test): 1000W

Noise level and temperature

• • Idle noise level: up to 40 dB
• • Idle temperature (GPUs): Average 44 C / 111 F (min 42 C - max 44 C)
• • Max load noise level (stress test): up to 63 dB
• • Max load temperature (GPUs): Average 86 C / 186.8 F (min 84 C - max 88 C)

Dimensions & Weight

• Case #1: Height: 22.8 inches (58.0 cm), Width: 9.5 inches (24.0 cm), Depth: 22.0 inches (56.0 cm)
• Shipping Package: Height: 25.6 inches (65.0 cm), Width: 13.0 inches (33.0 cm), Length: 26.2 inches (66.5 cm), Weight: 53 lbs (24.5 kg)
• Case #2 (Rackmount 5U): Height: 8.7 inches (22.0 cm), Width: 17.3 inches (44.0 cm), Depth: 20.9 inches (53.0 cm)
• Shipping Package: Height: 9.5 inches (24.5 cm), Width: 20.5 inches (52.4 cm), Length: 23.2 inches (59.4 cm), Weight: 58 lbs (26.5 kg)

Electrical and Operating Requirements

• • Line voltage: 100-240V AC
• • Frequency: 50Hz to 60Hz, single phase
• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating Relative Humidity: 8% to 90% (non-condensing)

In the Box

• • Bizon G3000.
• • Power cord (USA).
• • User manual.
• • Benchmark report.

Operating System

• • BIZON Z-Stack (Ubuntu 22.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • Windows 10 Pro (optional).

Part Number

bizon-g3000-04230823
