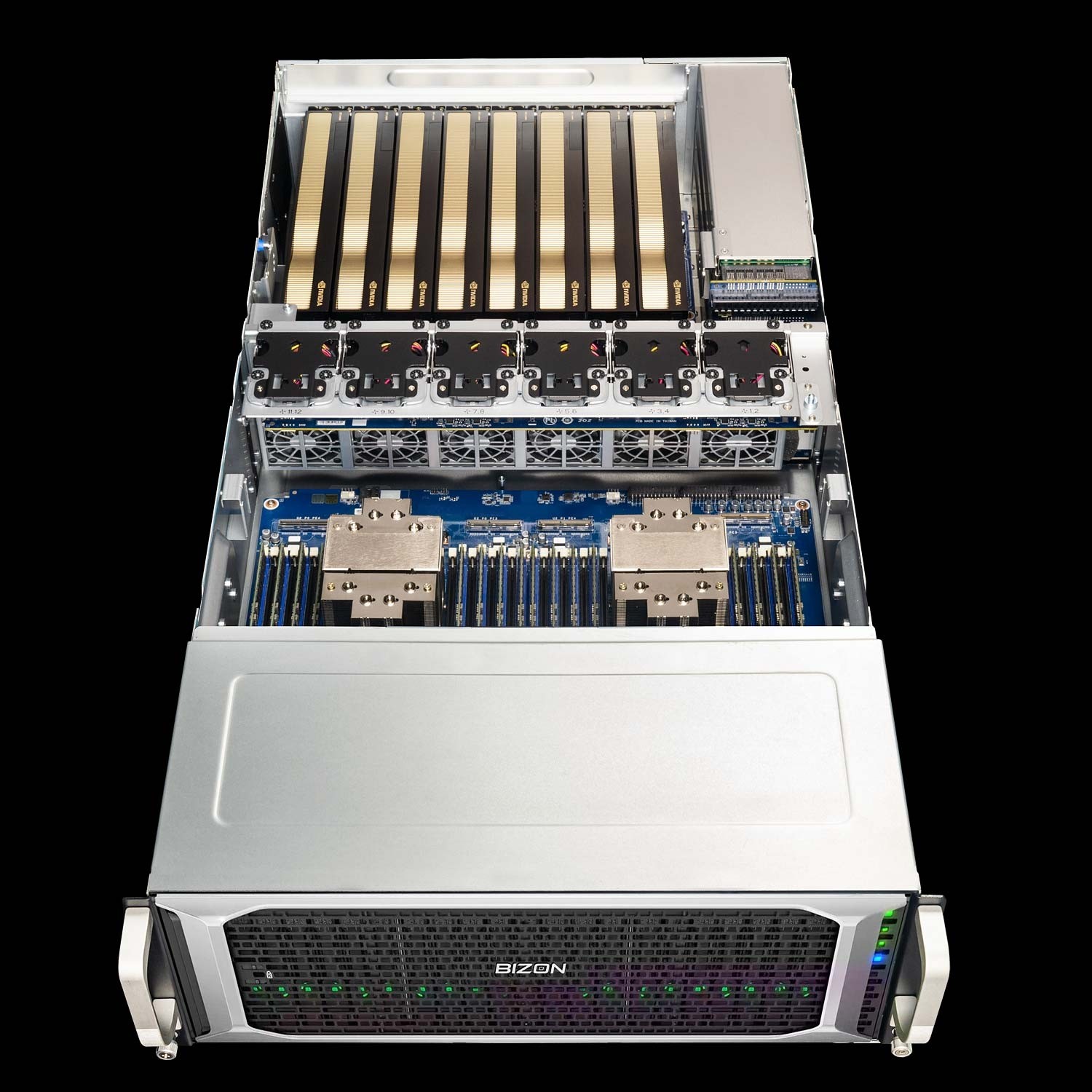

BIZON G7000 G5 – NVIDIA – Up to 8 GPUs, dual Xeon 6 up to 288 cores

Use cases

• • Artificial Intelligence
• • Big Data Analytics
• • High-performance Computing
• • Research Lab/National Lab
• • Astrophysics, Business Intelligence

Motherboard

• • Intel Xeon 6500/6700 processors (LGA 4710).
• • System on Chip.

CPU

• • Intel Xeon 6500-Series / 6700-Series Processors
• • Dual processors
• • Up to 144-core, 288 threads per processor
• • cTDP up to 350W

Memory

• • Up to 4096 GB DDR5 ECC Buffered
• • 32 x DIMM slots
• • DDR5 memory supported only
• • 8 channel per CPU, 16 DIMM per CPU
• • RDIMM modules up to 128GB supported

Expansion Slots

• • 8 x PCIe x 16 for dual-slot GPU cards (Gen5 x 16 link, FHFL)
• • 5 x PCIe x 16 for NIC/ BlueField-3 cards (Gen5 x 16 link, FHFL)
• • 1 x PCIe x 16 (Gen5 x 8 link, FHHL)
• • 1 x PCIe slot (Gen5 x8 link) for NIC (rear)

Storage

• • 8 x 2.5" Front Hot-swap Storage Bays (Backplane supports up to 8 x NVMe)
• • 2 x M.2 socket (Gen 5 x4 link, up to 22110)

LAN

• • 2 x 10GbE LAN ports (Intel X710-AT2)
• • 1 x 10/100/1000 management LAN (Dedicated IPMI)
• • 25 Gigabit Dual Port Ethernet (2x SFP28) (optional)
• • 100 Gbps Dual Port InfiniBand EDR (Mellanox ConnectX VPI Adapter; 1x QSFP) (optional)
• • 200 Gbps Dual Port InfiniBand HDR (Mellanox ConnectX-6 VPI Adapter; 2x QSFP) (optional)
• • 400 Gbps Single Port InfiniBand NDR (Mellanox ConnectX-7 VPI Adapter; 1x OSFP) (optional)

Graphics Cards

• Available options: Nvidia A1000 8Gb (4 DP), Nvidia RTX PRO 4000 Blackwell 24Gb (4 DP), Nvidia RTX PRO 4500 Blackwell 32Gb (4 DP), Nvidia RTX PRO 5000 Blackwell 48Gb (4 DP), Nvidia RTX PRO 6000 Blackwell Max-Q 96Gb (300W) (4 DP), Nvidia RTX PRO 6000 Blackwell 96Gb Server(600W) (4 DP), Nvidia A100 80Gb (no video outputs), Nvidia H100 94Gb NVL (no video outputs), Nvidia H200 141Gb NVL (no video outputs)
• Display Support (all cards): Maximum Digital Resolution: 7680x4320 @60HzMulti Monitor Support: 4

Front I/O

• • 1 x Mini DisplayPort
• • 2 x USB 5Gbps ports
• • 1 x Debug port
• • 1 x Power switch/LED
• • 1 x Location switch/LED
• • 1 x Message LED
• • 1 x Clear CMOS switch
• • 1 x Reset switch
• • 2 x M.2 LEDs
• • 2 x LAN LEDs
• • 1 x Q-Code/Port 80 LED

Rear I/O

• • 1 x USB 5Gbps port
• • 2 x RJ-45 LAN ports
• • 1 x RJ-45 management LAN port
• • 1 x Power switch/LED
• • 1 x Location switch/LED
• • 1 x Message LED

Power Supply

• Power cord requirements: C19 (PSU) to 5-15P (regular US home outlet).C19 (PSU) to C20 (plug) (PDU).

Power Requirements

100-120V (standard US outlet):If you have a standard 20 A / 120V US outlet, you can connect one power supply to one dedicated power circuit (each outlet should have its dedicated circuit). In total, you need four (4) 20 A /120V outlets with a dedicated circuit.Actual power consumption is not the same as maximum power supply power. Power supply power means how much watts you can get from the power supply and your actual power consumption should not be higher than max power supply power.Actual power consumption depends on your configuration (graphics card and CPU).Power consumption example:G7000 with 8 x RTX PRO 5000 Blackwell + 2 x Xeon 6517P CPUs = 3000-3200W (100% load for all the GPUs and CPUs).Information for reference only. Consult your electrician for more details.The system power supply is universal and will work worldwide. Compatible with 110v - 240v (50-60 Hz).

System Management

• • Remote access from anywhere (SSH/VNC)
• • Virtual machines
• • GPU sharing
• • Containers
• • One-click software updates
• • Jupyter notebooks
• • GPU/System monitoring
• • accounts, and permissions

OS Compatibility

• • BIZON Z-Stack (Ubuntu 24.04 with preinstalled deep learning frameworks).
• • Rocky Linux 9 (optional).
• • Windows 11 Pro (optional).
• • Microsoft Windows Server 2022 Standard (optional).
• • No operating system (optional).
• • VMware ESXi 8.0u3
• • Proxmox VE 8.4
• • Red Hat Enterprise Linux 8.x Server Edition (8.10)
• • Red Hat Enterprise Linux 9.x Server Edition (9.6)
• • Rocky Linux 8.10.
• • Rocky Linux 9.6.
• • SLES 15 (SP6).
• • Ubuntu 22.04 LTS (x64) or later
• • Ubuntu 24.04 LTS (x64) or later
• • Windows Server 2022 64 bit, SDDC Premium.
• • Windows Server 2025 64 bit, SDDC Premium.

Operating Properties

• • Operating temperature: 50° to 95° F (10° to 35° C)
• • Operating humidity: 8%-80% (non-condensing)
• • Non-operating temperature: -40° to 140° F (-40°C to 60°C)
• • Non-operating humidity: 20%-95% (non-condensing)

Noise

• 8 x NVIDIA RTX PRO 5000 Blackwell: Idle: 71 dBMax Load (stress test): 91 dB

Dimensions & Weight

• Case: Rackmountable; 4U; horizontal placement, Height: 6.69 inches (17.45 cm), Width: 17.3 inches (44.0 cm), Depth: 31.5 inches (80.0 cm)
• Shipping Package: Height: 17.3 inches (44.4 cm), Width: 31.5 inches (80.0 cm), Length: 47.2 inches (120.0 cm), Weight: 135 lbs (61.2 kg) (shipped on pallet)

In the Box

• • Bizon G7000 G5
• • 1 x Rail kit
• • 4 x power cords (USA)
• • User manual
• • Benchmark report

Part Number

bizon-g7000-g5-0426
